Tutorial

How To Install Jenkins on Ubuntu 22.04

How To Install Jenkins on Ubuntu 22.04
Not using Ubuntu 22.04?Choose a different version or distribution.
Ubuntu 22.04

Introduction

Jenkins is an open-source automation server that automates the repetitive technical tasks involved in the continuous integration and delivery of software. Jenkins is Java-based, installed from Ubuntu packages or by downloading and running its web application archive (WAR) file — a collection of files that make up a complete web application to run on a server.

In this tutorial you will install Jenkins on Ubuntu 22.04, start the development server and create an administrative user to get started exploring Jenkins automation. At the end of this tutorial you will have an unsecured Jenkins server ready for a development deployment. To secure your installation for production, follow the guide How to Configure Jenkins with SSL Using an Nginx Reverse Proxy on Ubuntu 22.04.

Prerequisites

To follow this tutorial, you will need:

Step 1 — Installing Jenkins

The version of Jenkins included with the default Ubuntu packages is often behind the latest available version from the project itself. To ensure you have the latest fixes and features, use the project-maintained packages to install Jenkins.

First, add the repository key to your system:

  1. wget -q -O - https://pkg.jenkins.io/debian-stable/jenkins.io.key |sudo gpg --dearmor -o /usr/share/keyrings/jenkins.gpg

The gpg --dearmor command is used to convert the key into a format that apt recognizes.

Next, let’s append the Debian package repository address to the server’s sources.list:

  1. sudo sh -c 'echo deb [signed-by=/usr/share/keyrings/jenkins.gpg] http://pkg.jenkins.io/debian-stable binary/ > /etc/apt/sources.list.d/jenkins.list'

The [signed-by=/usr/share/keyrings/jenkins.gpg] portion of the line ensures that apt will verify files in the repository using the GPG key that you just downloaded.

After both commands have been entered, run apt update so that apt will use the new repository.

  1. sudo apt update

Finally, install Jenkins and its dependencies:

  1. sudo apt install jenkins

Now that Jenkins and its dependencies are in place, we’ll start the Jenkins server.

Step 2 — Starting Jenkins

now that Jenkins is installed, start it by using systemctl:

sudo systemctl start jenkins.service

Since systemctl doesn’t display status output, we’ll use the status command to verify that Jenkins started successfully:

  1. sudo systemctl status jenkins

If everything went well, the beginning of the status output shows that the service is active and configured to start at boot:

Output
● jenkins.service - Jenkins Continuous Integration Server Loaded: loaded (/lib/systemd/system/jenkins.service; enabled; vendor preset: enabled) Active: active (running) since Mon 2022-04-18 16:07:28 UTC; 2min 3s ago Main PID: 88180 (java) Tasks: 42 (limit: 4665) Memory: 1.1G CPU: 46.997s CGroup: /system.slice/jenkins.service └─88180 /usr/bin/java -Djava.awt.headless=true -jar /usr/share/java/jenkins.war --webroot=/var/cache/jenkins/war --httpPort=8080

Now that Jenkins is up and running, adjust your firewall rules so that you can reach it from a web browser to complete the initial setup.

Step 3 — Opening the Firewall

To set up a UFW firewall, visit Initial Server Setup with Ubuntu 22.04, Step 4- Setting up a Basic Firewall. By default, Jenkins runs on port 8080. Open that port using ufw:

  1. sudo ufw allow 8080

Note: If the firewall is inactive, the following commands will allow OpenSSH and enable the firewall:

  1. sudo ufw allow OpenSSH
  2. sudo ufw enable

Check ufw’s status to confirm the new rules:

  1. sudo ufw status

You’ll notice that traffic is allowed to port 8080 from anywhere:

Output
Status: active To Action From -- ------ ---- OpenSSH ALLOW Anywhere 8080 ALLOW Anywhere OpenSSH (v6) ALLOW Anywhere (v6) 8080 (v6) ALLOW Anywhere (v6)

With Jenkins installed and a firewall configured, you have completed the installation stage and can continue with configuring Jenkins.

Step 4 — Setting Up Jenkins

To set up your installation, visit Jenkins on its default port, 8080, using your server domain name or IP address: http://your_server_ip_or_domain:8080

You should receive the Unlock Jenkins screen, which displays the location of the initial password:

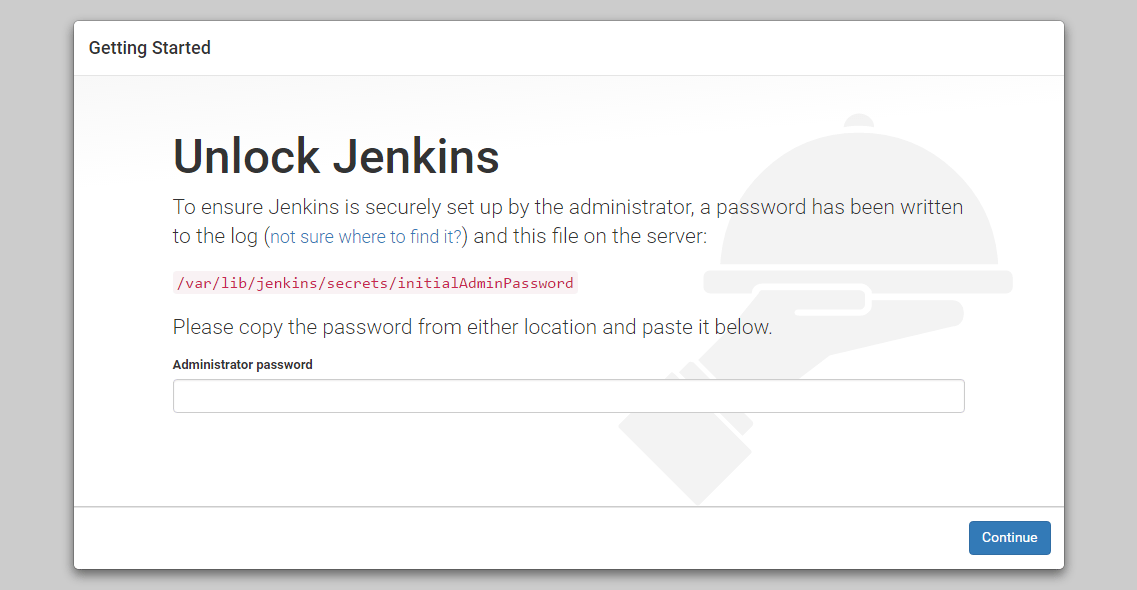

Unlock Jenkins screen

In the terminal window, use the cat command to display the password:

  1. sudo cat /var/lib/jenkins/secrets/initialAdminPassword

Copy the 32-character alphanumeric password from the terminal and paste it into the Administrator password field, then click Continue.

The next screen presents the option of installing suggested plugins or selecting specific plugins:

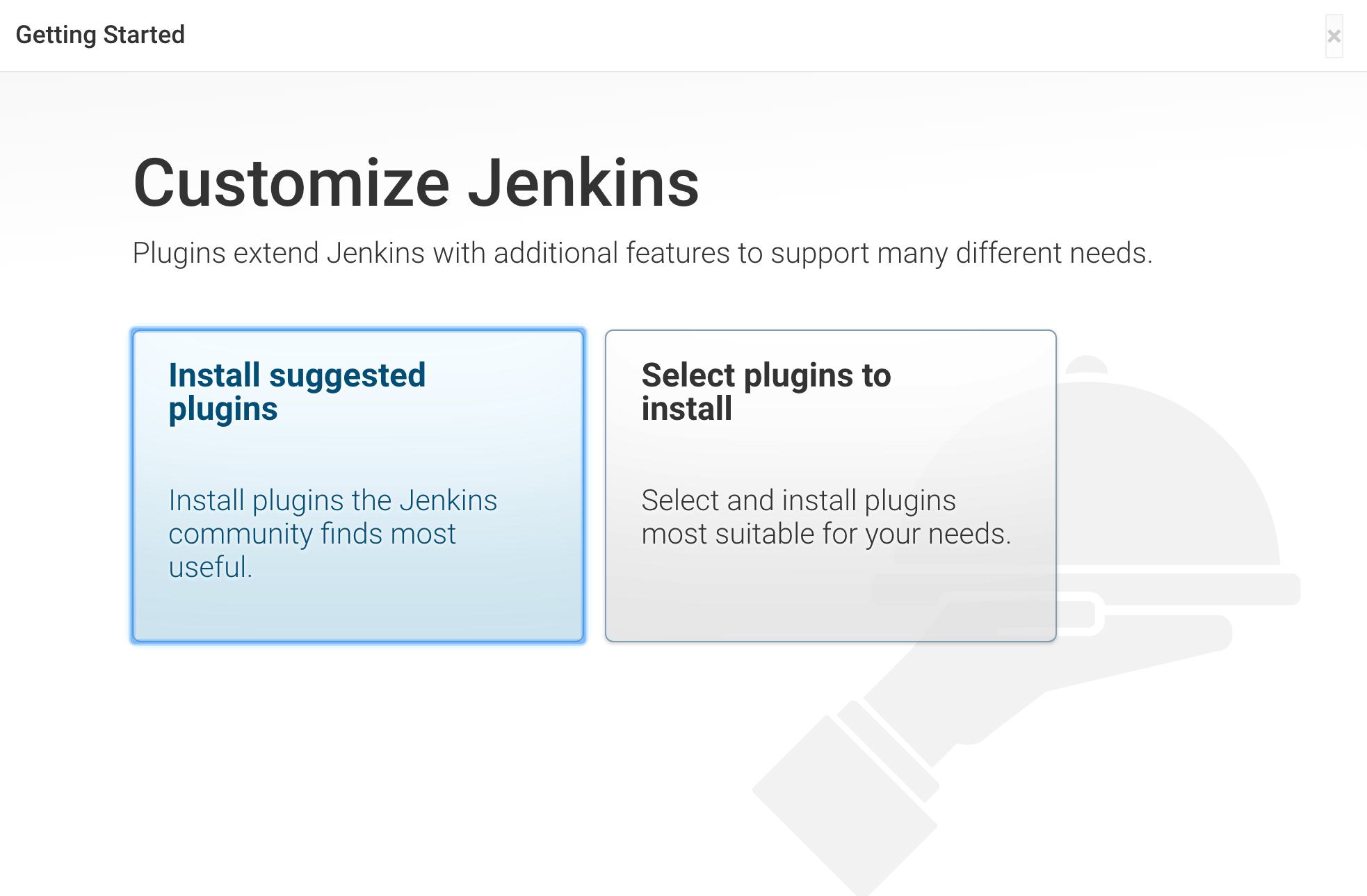

Customize Jenkins Screen

We’ll click the Install suggested plugins option, which will immediately begin the installation process.

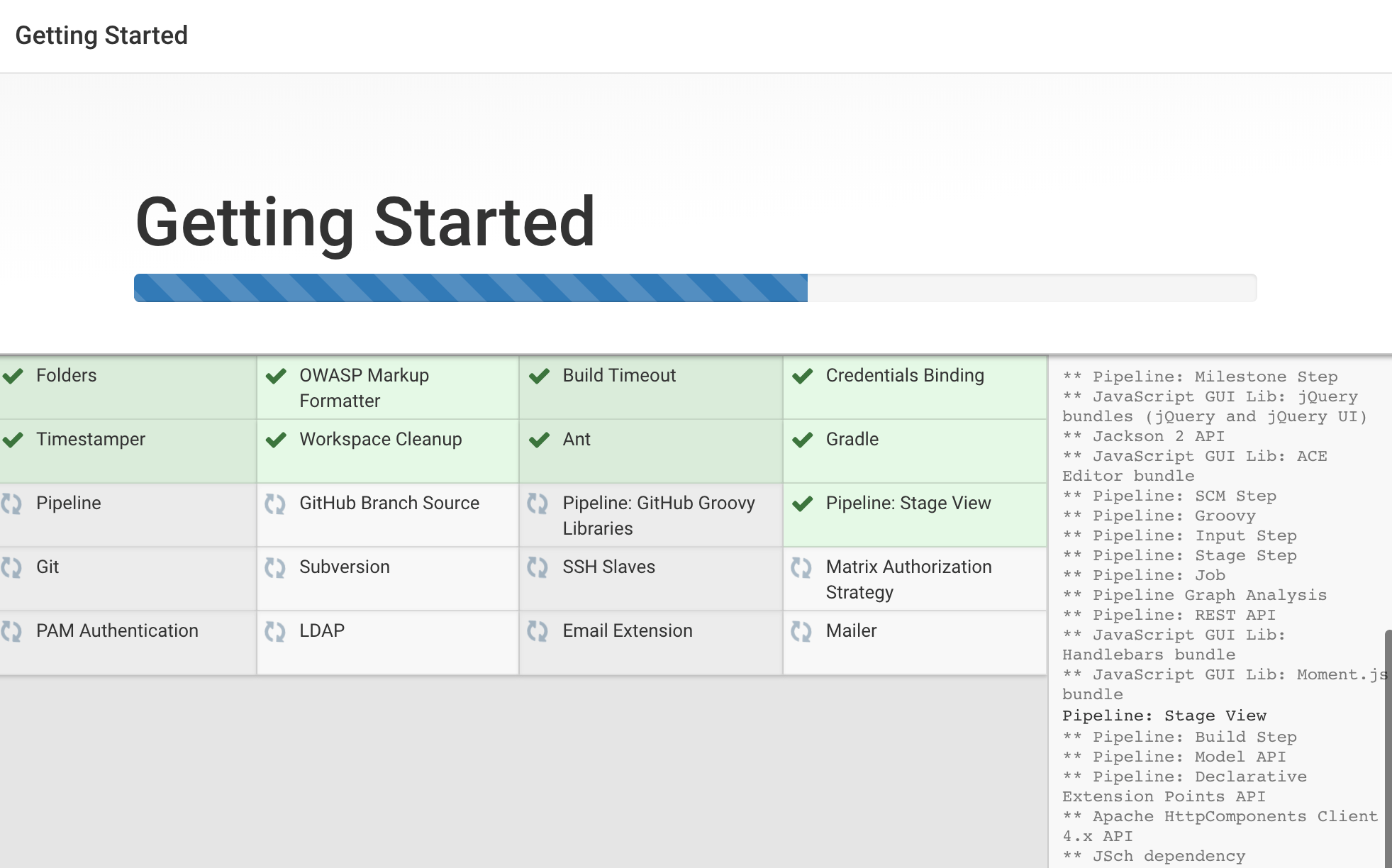

Jenkins Getting Started Install Plugins Screen

When the installation is complete, you’ll be prompted to set up the first administrative user. It’s possible to skip this step and continue as admin using the initial password from above, but we’ll take a moment to create the user.

Note: The default Jenkins server is NOT encrypted, so the data submitted with this form is not protected. Refer to How to Configure Jenkins with SSL Using an Nginx Reverse Proxy on Ubuntu 22.04 to protect user credentials and information about builds that are transmitted via the web interface.

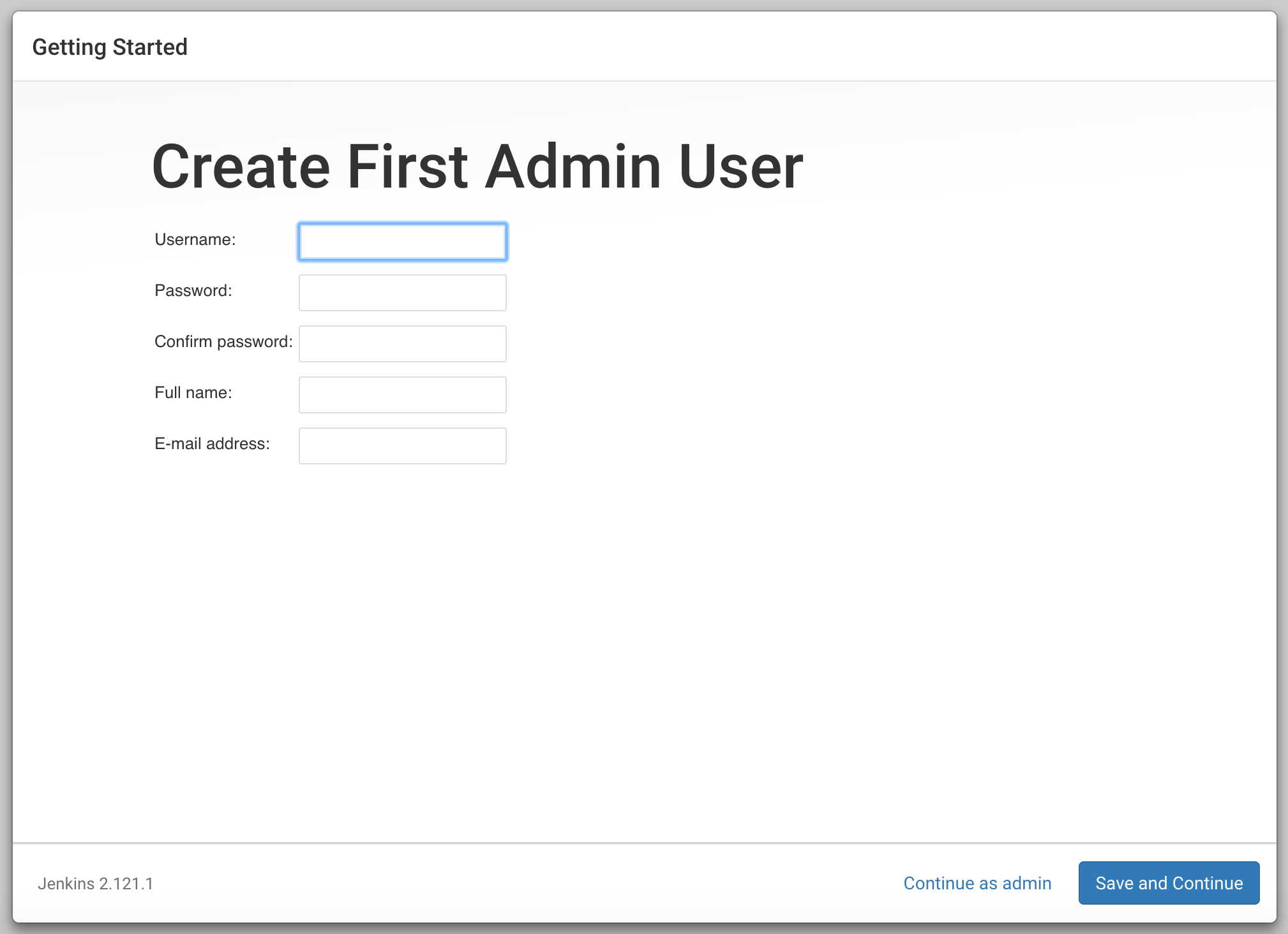

Jenkins Create First Admin User Screen

Enter the name and password for your user:

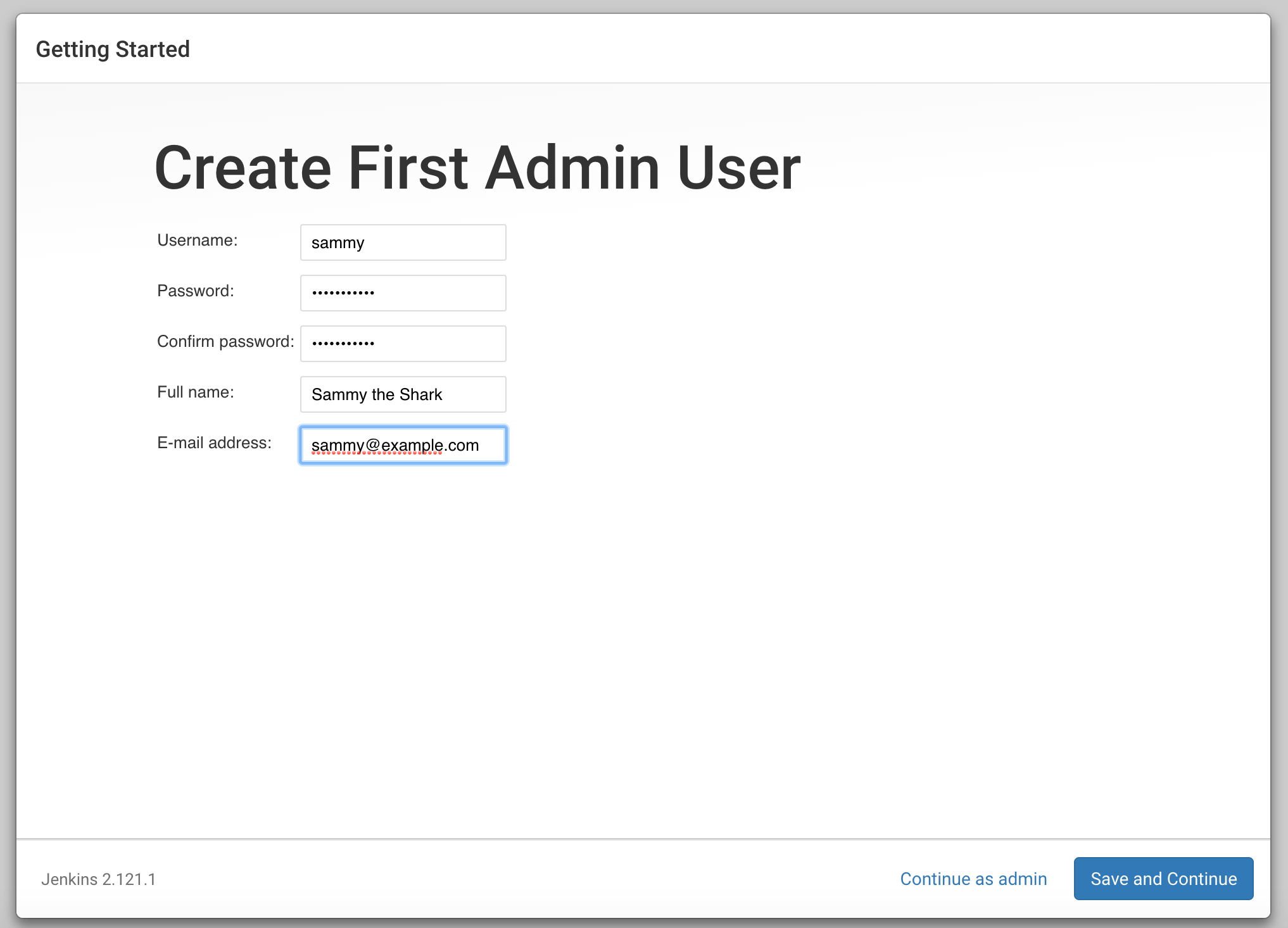

Jenkins Create User

You’ll receive an Instance Configuration page that will ask you to confirm the preferred URL for your Jenkins instance. Confirm either the domain name for your server or your server’s IP address:

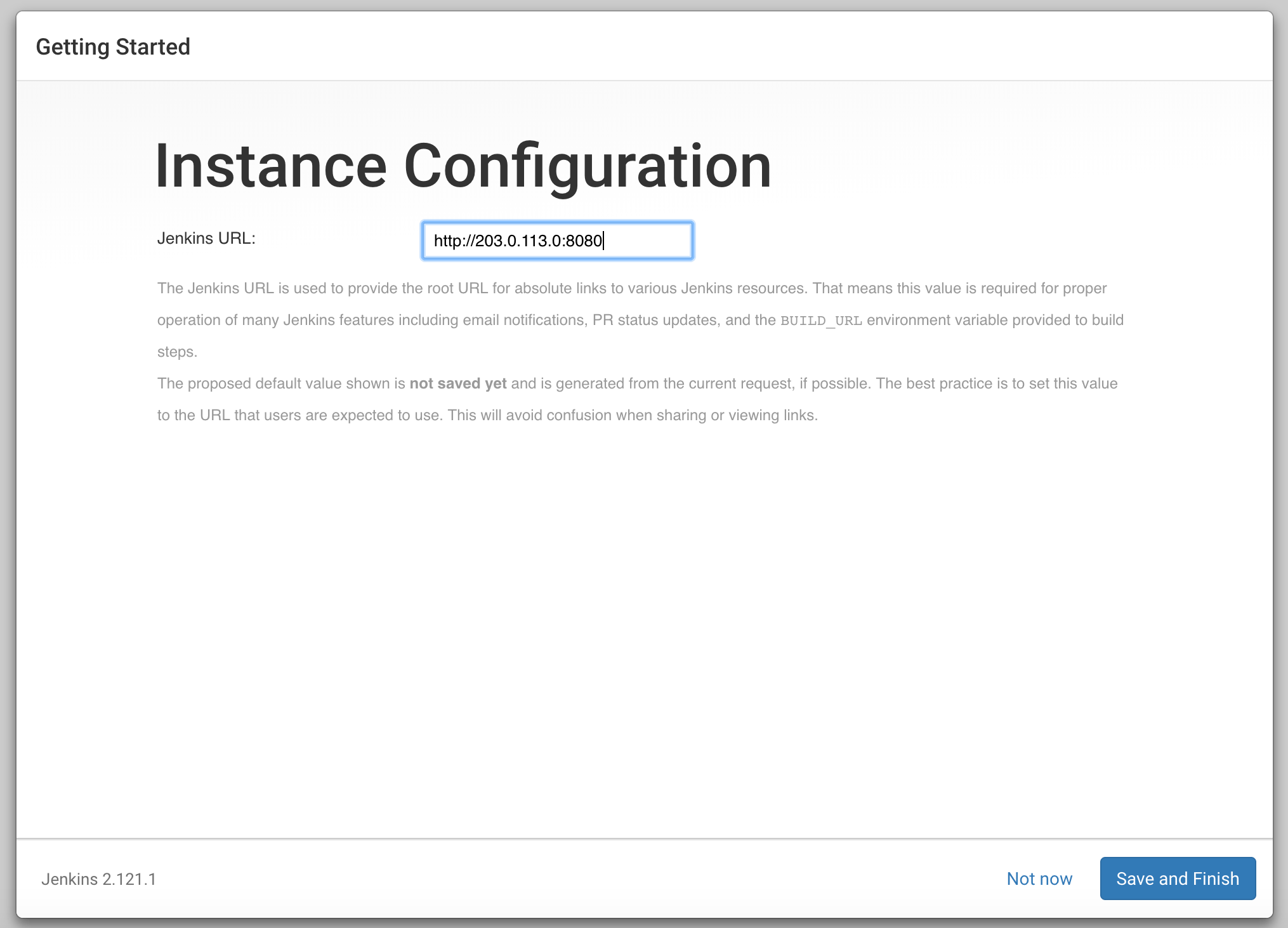

Jenkins Instance Configuration

After confirming the appropriate information, click Save and Finish. You’ll receive a confirmation page confirming that “Jenkins is Ready!”:

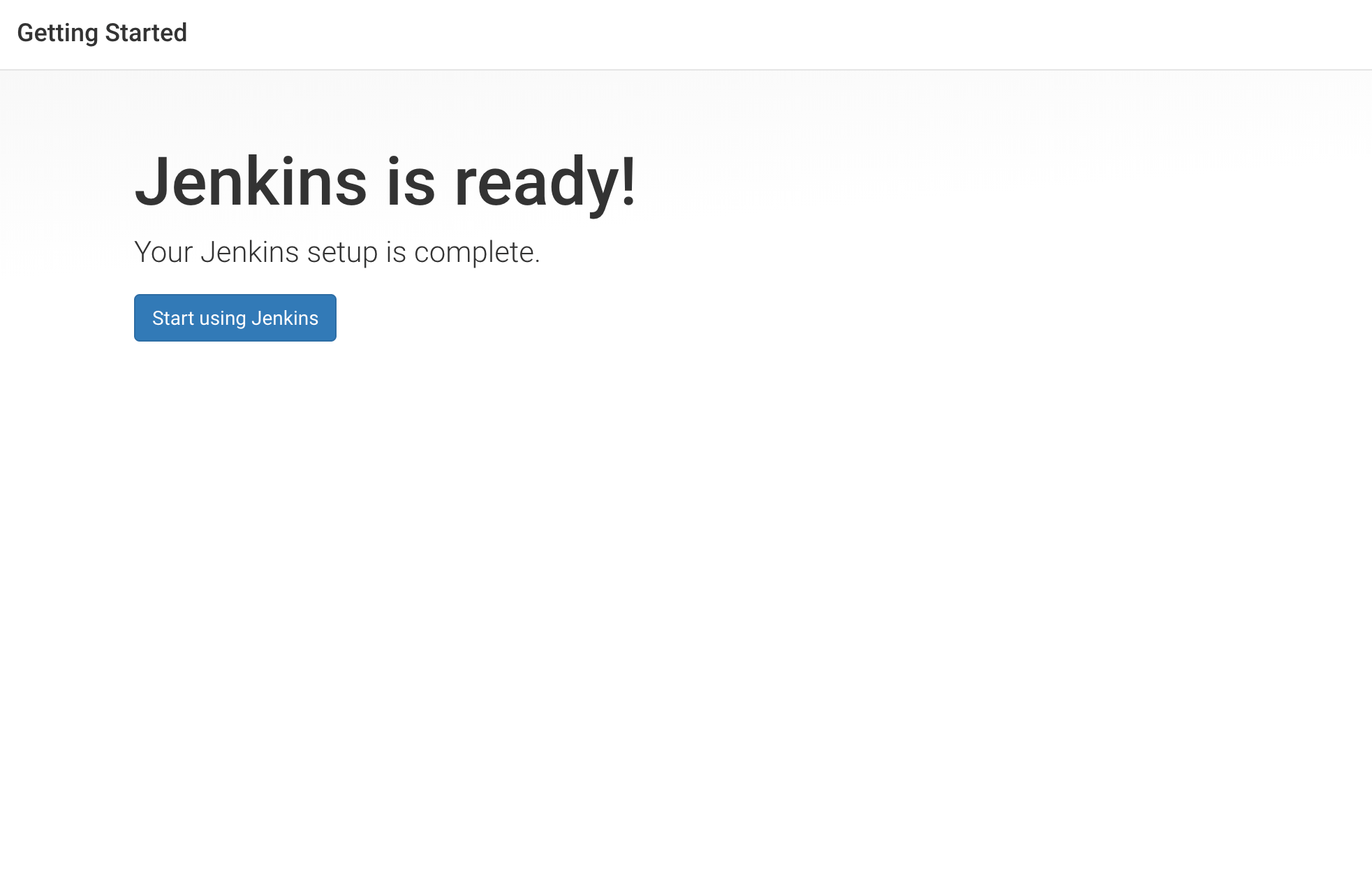

Jenkins is ready screen

Click Start using Jenkins to visit the main Jenkins dashboard:

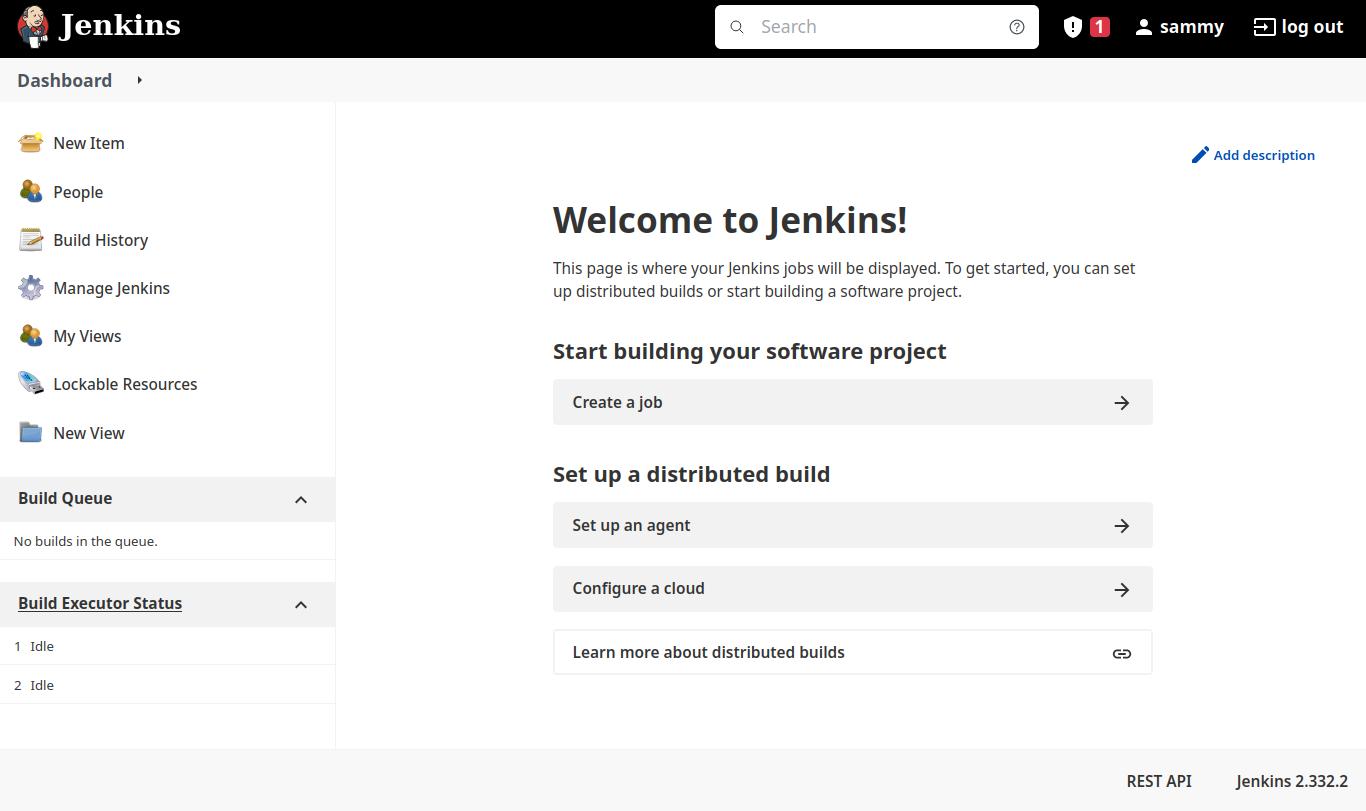

Welcome to Jenkins Screen

At this point, you have completed a successful installation of Jenkins.

Conclusion

In this tutorial, you installed Jenkins using the project-provided packages, started the server, opened the firewall, and created an administrative user. At this point, you can start exploring Jenkins.

When you’ve completed your exploration, follow the guide How to Configure Jenkins with SSL Using an Nginx Reverse Proxy on Ubuntu 22.04 to protect your passwords, as well as any sensitive system or product information that will be sent between your machine and the server in plain text to continue using Jenkins.

To learn more about what you can do using Jenkins, check out other tutorials on the subject:

Thanks for learning with the DigitalOcean Community. Check out our offerings for compute, storage, networking, and managed databases.

Learn more about our products

About the authors

Still looking for an answer?

Ask a questionSearch for more help

Was this helpful?

8 Comments


This textbox defaults to using Markdown to format your answer.

You can type !ref in this text area to quickly search our full set of tutorials, documentation & marketplace offerings and insert the link!

this is great walk through!

however I stuck for a few hours because I started my droplet on Ubuntu 23 (not 22 as the tutorial states)

and the pgp keys did not match, you need to go for

sudo wget -O /usr/share/keyrings/jenkins-keyring.asc \ [https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key](https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key)

echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \ https://pkg.jenkins.io/debian-stable binary/ | sudo tee \ /etc/apt/sources.list.d/jenkins.list > /dev/null

Had errors that I’ve been unable to solve while trying to start Jenkins.

$ sudo service jenkins start
Job for jenkins.service failed because the control process exited with error code.
See "systemctl status jenkins.service" and "journalctl -xeu jenkins.service" for details.

Service Status

$ systemctl status jenkins.service
● jenkins.service - Jenkins Continuous Integration Server
     Loaded: loaded (/lib/systemd/system/jenkins.service; enabled; vendor preset: enabled)
     Active: activating (auto-restart) (Result: exit-code) since Tue 2023-09-26 16:43:15 PST; 9ms ago
    Process: 19094 ExecStart=/usr/bin/jenkins (code=exited, status=1/FAILURE)
   Main PID: 19094 (code=exited, status=1/FAILURE)
        CPU: 1.939s

Journal

~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
-- No entries --

Java Version

$ java --version
openjdk 11.0.20.1 2023-08-24
OpenJDK Runtime Environment (build 11.0.20.1+1-post-Ubuntu-0ubuntu122.04)
OpenJDK 64-Bit Server VM (build 11.0.20.1+1-post-Ubuntu-0ubuntu122.04, mixed mode, sharing)

This is right after sudo apt install jenkins. It simply fails to start and I’m not sure what’s going on.

This comment has been deleted

    Hello team,

    I just follow the process to install Jenkins on Ubuntu 22.04 LTS & and i faced an below ERROR:

    E: The repository ‘http://pkg.jenkins.io/debian-stable binary/ Release’ is not signed."

    For that please update the “repository key” and “sources.list” step into installation process

    I have found that Solution on Jenkins official site https://www.jenkins.io/blog/2023/03/27/repository-signing-keys-changing/

    Thanks…!!

    $ sudo apt-get install jenkins Reading package lists… Done Building dependency tree… Done Reading state information… Done The following additional packages will be installed: net-tools The following NEW packages will be installed: jenkins net-tools 0 upgraded, 2 newly installed, 0 to remove and 0 not upgraded. Need to get 87.6 MB/87.8 MB of archives. After this operation, 92.1 MB of additional disk space will be used. Do you want to continue? [Y/n] Y Ign:1 https://pkg.jenkins.io/debian-stable binary/ jenkins 2.346.3
    Ign:1 https://pkg.jenkins.io/debian-stable binary/ jenkins 2.346.3
    Ign:1 https://pkg.jenkins.io/debian-stable binary/ jenkins 2.346.3 Err:1 https://pkg.jenkins.io/debian-stable binary/ jenkins 2.346.3 Cannot initiate the connection to mirrors.tuna.tsinghua.edu.cn:443 (2402:f000:1:400::2). - connect (101: Network is unreachable) Could not connect to mirrors.tuna.tsinghua.edu.cn:443 (101.6.15.130), connection timed out E: Failed to fetch https://mirrors.tuna.tsinghua.edu.cn/jenkins/debian-stable/jenkins_2.346.3_all.deb Cannot initiate the connection to mirrors.tuna.tsinghua.edu.cn:443 (2402:f000:1:400::2). - connect (101: Network is unreachable) Could not connect to mirrors.tuna.tsinghua.edu.cn:443 (101.6.15.130), connection timed out E: Unable to fetch some archives, maybe run apt-get update or try with --fix-missing?

    Thanks a lot!
