How to Install OpenStack on Ubuntu 18.04 with DevStack

Published on August 3, 2022
Default avatar
By Pankaj
Developer and author at DigitalOcean.
How to Install OpenStack on Ubuntu 18.04  with DevStack

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

Openstack is a free and opensource IaaS cloud platform that handles cloud compute, storage and network resources. It comes with an intuitive dashboard that enables systems administrators to provide and monitor these resources. You can seamlessly install OpenStack locally on your Ubuntu 18.04 instance for learning and testing purposes using Devstack. Devstack is a set of extensible scripts that facilitate OpenStack deployment. In this guide, you will learn how to deploy OpenStack on Ubuntu 18.04 with devstack.

Minimum Requirements

Before we begin, ensure you have the following minimum prerequisites

  1. A fresh Ubuntu 18.04 installation
  2. User with sudo privileges
  3. 4 GB RAM
  4. 2 vCPUs
  5. Hard disk capacity of 10 GB
  6. Internet connection

With the minimum requirements satisfied, we can now proceed.

Step 1: Update and Upgrade the System

To start off, log into your Ubuntu 18.04 system using SSH protocol and update & upgrade system repositories using the following command.

apt update -y && apt upgrade -y

Sample Output Update And Upgrade Ubuntu 18 04 Bionic Beaver Next reboot the system using the command.

sudo reboot

OR

init 6

Step 2: Create Stack user and assign sudo priviledge

Best practice demands that devstack should be run as a regular user with sudo privileges. With that in mind, we are going to add a new user called “stack” and assign sudo privileges. To create stack user execute

sudo adduser -s /bin/bash -d /opt/stack -m stack

Next, run the command below to assign sudo privileges to the user

echo "stack ALL=(ALL) NOPASSWD: ALL" | sudo tee /etc/sudoers.d/stack

Sample Output Add Stack User And Assign Sudo Privileges

Step 3: Install git and download DevStack

Once you have successfully created the user ‘stack’ and assigned sudo privileges, switch to the user using the command.

su - stack

In most Ubuntu 18.04 systems, git comes already installed. If by any chance git is missing, install it by running the following command.

sudo apt install git -y

Sample output Switch To Stack User And Install Git Using git, clone devstack’s git repository as shown.

git clone https://git.openstack.org/openstack-dev/devstack

Sample output Deploy Devstack

Step 4: Create devstack configuration file

In this step, navigate to the devstack directory.

cd devstack

Then create a local.conf configuration file.

vim local.conf

Paste the following content

[[local|localrc]]

# Password for KeyStone, Database, RabbitMQ and Service
ADMIN_PASSWORD=StrongAdminSecret
DATABASE_PASSWORD=$ADMIN_PASSWORD
RABBIT_PASSWORD=$ADMIN_PASSWORD
SERVICE_PASSWORD=$ADMIN_PASSWORD

# Host IP - get your Server/VM IP address from ip addr command
HOST_IP=10.208.0.10

Save and exit the text editor. NOTE:

  1. The ADMIN_PASSWORD is the password that you will use to log in to the OpenStack login page. The default username is admin.
  2. The HOST_IP is your system’s IP address that is obtained by running ifconfig or ip addr commands.

Step 5: Install OpenStack with Devstack

To commence the installation of OpenStack on Ubuntu 18.04, run the script below contained in devstack directory.

./stack.sh

The following features will be installed:

  • Horizon – OpenStack Dashboard
  • Nova – Compute Service
  • Glance – Image Service
  • Neutron – Network Service
  • Keystone – Identity Service
  • Cinder – Block Storage Service
  • Placement – Placement API

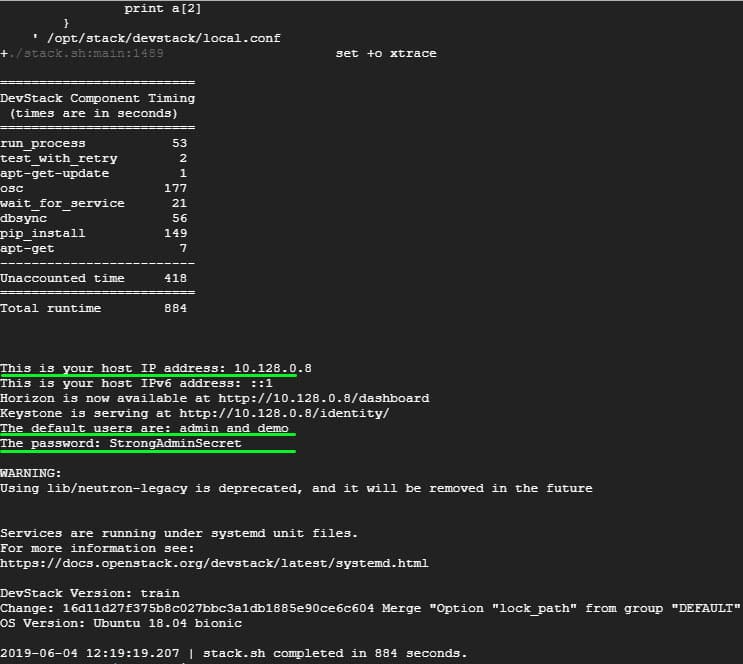

The deployment takes about 10 to 15 minutes depending on the speed of your system and internet connection. In our case, it took roughly 12 minutes. At the very end, you should see output similar to what we have below. Devstack Installed This confirms that all went well and that we can proceed to access OpenStack via a web browser.

Step 6: Accessing OpenStack on a web browser

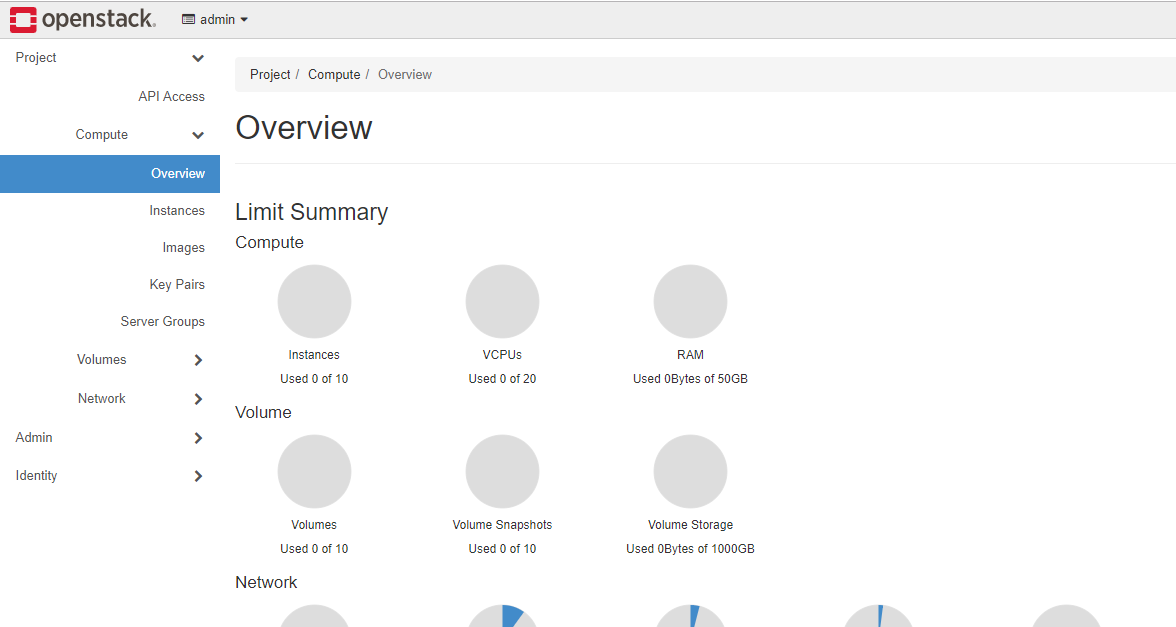

To access OpenStack via a web browser browse your Ubuntu’s IP address as shown. https://server-ip/dashboard This directs you to a login page as shown. Openstack login page Enter the credentials and hit “Sign In” You should be able to see the Management console dashboard as shown below. Openstack Admin Dashboard For more on Devstack’s customization, check out their system configuration guide. Additionally, check out the Openstack documentation for administration guide.
