When deploying web apps to Kubernetes, you usually use Services and Ingresses to expose apps beyond the cluster at your desired domain. This involves manually configuring not only the Ingress, but also the DNS records at your provider, which can be a time-consuming and error-prone process. This can become an obstacle as your application grows in complexity; when the external IP changes, it is necessary to update the DNS records accordingly.
To overcome this, the Kubernetes sig-network team created ExternalDNS for the purpose of automatically managing external DNS records from within a Kubernetes cluster. Once deployed, ExternalDNS works in the background and requires almost no additional configuration. Whenever a Service or Ingress is created or changed, ExternalDNS will update the records right away.
In this tutorial, you will install ExternalDNS to your DigitalOcean Kubernetes cluster via Helm and configure it to use DigitalOcean as your DNS provider. Then, you will deploy a sample web app with an Ingress and use ExternalDNS to point it to your domain name. In the end, you will have an automated DNS-record managing system in place for both Services and Ingresses.
A DigitalOcean Kubernetes cluster with your connection configured as the
kubectl default. Instructions on how to configure
kubectl are shown under the Connect to your Cluster step when you create your cluster. To create a Kubernetes cluster on DigitalOcean, read the Kubernetes Quickstart.
The Helm 3 package manager installed on your local machine. Complete Step 1 of the How To Install Software on Kubernetes Clusters with the Helm 3 Package Manager tutorial.
The Nginx Ingress Controller installed on your cluster using Helm in order to use ExternalDNS with Ingress Resources. To do this, follow How to Set Up an Nginx Ingress on DigitalOcean Kubernetes Using Helm. You’ll need to set the
publishService property to
true as per the instructions in Step 2.
A DigitalOcean API key (Personal Access Token) with read and write permissions. To create one, visit How to Create a Personal Access Token.
A fully registered domain name. This tutorial will use
echo.your_domain throughout. You can purchase a domain name on Namecheap, get one for free on Freenom, or use the domain registrar of your choice.
In this section, you will install ExternalDNS to your cluster using Helm and configure it to work with the DigitalOcean DNS service.
In order to override some of the default settings of the ExternalDNS Helm chart, you’ll need to create a
values.yaml file that you’ll pass in to Helm during installation. On the machine you use to access your cluster in the prerequisites, create the file by running:
- nano externaldns-values.yaml
Add the following lines:
provider: digitalocean digitalocean: apiToken: your_api_token interval: "1m" policy: sync # or upsert-only # domainFilters: [ 'your_domain' ]
In the first block, you set the DNS service provider to DigitalOcean. Then, in the next block, you define your DigitalOcean API token by replacing
The next line sets the interval at which ExternalDNS will poll for changes to Ingresses and Services. You can set it to a lower value to propagate changes to your DNS faster, with 1 minute being the default value.
policy setting determines whether ExternalDNS will only insert DNS records (
upsert-only) or create and delete them as needed (
sync). Fortunately, since version 0.3, ExternalDNS supports the concept of ownership by creating accompanying TXT records in which it stores information about the domains it creates, limiting its scope of action to only those it created.
domainFilters parameter is used for limiting the domains that ExternalDNS can manage. You can uncomment it and enter your domains in the form of a string array, but this isn’t necessary.
When you’ve finished editing, save and close the file.
The ExternalDNS Helm chart is a part of the Bitnami chart library. Add it to your Helm installation by running the following command:
- helm repo add bitnami https://charts.bitnami.com/bitnami
Then, refresh Helm’s cache to download its contents:
- helm repo update
Finally, install ExternalDNS to your cluster by running:
- helm install external-dns bitnami/external-dns -f externaldns-values.yaml
The output will be similar to the following:
OutputNAME: external-dns LAST DEPLOYED: ... NAMESPACE: default STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: ** Please be patient while the chart is being deployed ** To verify that external-dns has started, run: kubectl --namespace=default get pods -l "app.kubernetes.io/name=external-dns,app.kubernetes.io/instance=external-dns"
You can verify the ExternalDNS creation by running:
- kubectl --namespace=default get pods -l "app.kubernetes.io/name=external-dns,app.kubernetes.io/instance=external-dns"
OutputNAME READY STATUS RESTARTS AGE external-dns-56c85ff66b-2vm88 1/1 Running 0 24s
You’ve installed ExternalDNS to your Kubernetes cluster. Next, you will deploy an example web app, expose it using an Nginx Ingress, and let ExternalDNS automatically point your domain name to the appropriate Load Balancer.
In this section, you will deploy a dummy web app to your cluster in order to expose it using your Ingress. Then you’ll set up ExternalDNS to automatically configure DNS records for you. In the end, you will have DNS records for your domain pointed to the Load Balancer of the Ingress.
The dummy web app you’ll deploy is
http-echo by Hashicorp. It is an in-memory web server that echoes back the message you give it. You’ll store its Kubernetes manifests in a file named
echo.yaml. Create it and open it for editing:
- nano echo.yaml
Add the following lines to your file:
apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: echo-ingress annotations: kubernetes.io/ingress.class: nginx spec: rules: - host: "echo.your_domain" http: paths: - pathType: Prefix path: "/" backend: service: name: echo port: number: 80 --- apiVersion: v1 kind: Service metadata: name: echo spec: ports: - port: 80 targetPort: 5678 selector: app: echo --- apiVersion: apps/v1 kind: Deployment metadata: name: echo spec: selector: matchLabels: app: echo replicas: 3 template: metadata: labels: app: echo spec: containers: - name: echo image: hashicorp/http-echo args: - "-text=Echo!" ports: - containerPort: 5678
In this configuration, you define a Deployment, an Ingress, and a Service. The Deployment consists of three replicas of the
http-echo app, with a custom message (
Echo!) passed in. The Service is defined to allow access to the Pods in the Deployment via port
80. The Ingress is configured to expose the Service at your domain.
echo.your_domain with your domain, then save and close the file.
Now there is no need for you to configure the DNS records for the domain manually. ExternalDNS will do so automatically, as soon as you apply the configuration to Kubernetes.
To apply the configuration, run the following command:
- kubectl create -f echo.yaml
You’ll receive the following output:
Outputingress.extensions/echo-ingress created service/echo created deployment.apps/echo created
You’ll need to wait a short amount of time for ExternalDNS to notice the changes and create the appropriate DNS records. The
interval setting in the Helm chart governs the length of time you’ll need to wait for your DNS record creation. In
externaldns-values.yaml, the interval length is set to 1 minute by default.

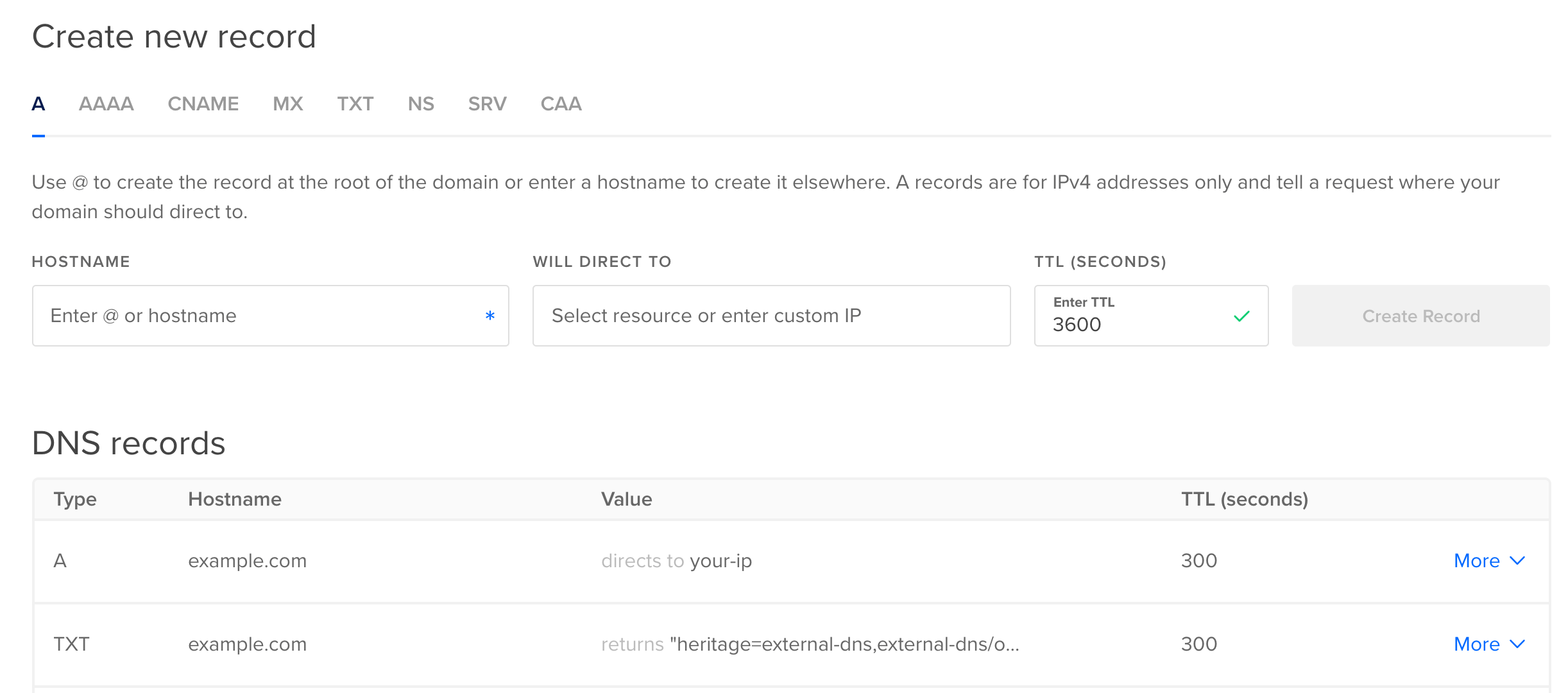

You can visit your DigitalOcean Control Panel to find an A and TXT record.
Once the specified time interval has passed, or you find the records in the Control Panel, access your domain using
- curl echo.your_domain
You’ll receive the following output:
This message confirms you’ve configured ExternalDNS and created the necessary DNS records to point to the Load Balancer of the Nginx Ingress Controller. If you have an error message, give it some time. Or, you can try accessing your domain from your browser where you’ll receive
You’ve tested ExternalDNS by deploying an example app with an Ingress. You can also observe the new DNS records in your DigitalOcean Control Panel. In the next step, you’ll expose the Service at your domain name.
In this optional section, you’ll use Services with ExternalDNS instead of Ingresses. ExternalDNS allows you to make different Kubernetes resources available to DNS servers. Using Services is a similar process to Ingresses with the configuration modified for this alternate resource.
Note: Following this step will delete the DNS records you’ve just created.
Since you’ll be customizing the Service contained in
echo.yaml, you won’t need the
echo-ingress anymore. Delete it using the following command:
- kubectl delete ing echo-ingress
The output will be:
ExternalDNS will delete the existing DNS records it created in the previous step. In the remainder of the step, you can use the same domain you have used before.
Next, open the
echo.yaml file for editing:
- nano echo.yaml
Replace the file contents with the following lines:
apiVersion: v1 kind: Service metadata: name: echo annotations: external-dns.alpha.kubernetes.io/hostname: echo.your_domain spec: type: LoadBalancer ports: - port: 80 targetPort: 5678 selector: app: echo --- apiVersion: apps/v1 kind: Deployment metadata: name: echo spec: selector: matchLabels: app: echo replicas: 3 template: metadata: labels: app: echo spec: containers: - name: echo image: hashicorp/http-echo args: - "-text=Echo!" ports: - containerPort: 5678
You’ve removed Ingress from the file for the previous setup and changed the Service type to
LoadBalancer. Furthermore, you’ve added an annotation specifying the domain name for ExternalDNS.
Apply the changes to your cluster by running the following command:
- kubectl apply -f echo.yaml
The output will be:
Output... service/echo configured deployment.apps/echo configured
You can check that the Service’s Load Balancer becomes available by running:
- kubectl get svc echo -w
OutputNAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE echo LoadBalancer 10.245.81.235 <pending> 80:31814/TCP 8s ...
As in the previous step, you’ll need to wait some time for the DNS records to be created and propagated. Once that is done,
curl the domain you specified:
- curl echo.your_domain
The output will be the same as the previous step:
If you get an error, wait a little longer, or you can try a different domain. Since DNS records are cached on client systems, it may take a long time for the changes to actually propagate.
In this step, you created a Service (of type
LoadBalancer) and pointed it to your domain name using ExternalDNS.
ExternalDNS works silently in the background and provides a friction-free experience. Your Kubernetes cluster has just become the central source of truth regarding the domains. You won’t have to manually update DNS records anymore.
The real power of ExternalDNS will become apparent when creating testing environments from a Continuous Delivery system. If you want to set up such a system on your Kubernetes cluster, visit How To Set Up a CD Pipeline with Spinnaker on DigitalOcean Kubernetes.
