Tutorial

Template Method Design Pattern in Java

Published on August 3, 2022
author

Pankaj

Template Method Design Pattern in Java

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

Template Method is a behavioral design pattern. Template Method design pattern is used to create a method stub and deferring some of the steps of implementation to the subclasses.

Template Method Design Pattern

Template method defines the steps to execute an algorithm and it can provide default implementation that might be common for all or some of the subclasses. Let’s understand this pattern with an example, suppose we want to provide an algorithm to build a house. The steps need to be performed to build a house are - building foundation, building pillars, building walls and windows. The important point is that the we can’t change the order of execution because we can’t build windows before building the foundation. So in this case we can create a template method that will use different methods to build the house. Now building the foundation for a house is same for all type of houses, whether its a wooden house or a glass house. So we can provide base implementation for this, if subclasses want to override this method, they can but mostly it’s common for all the types of houses. To make sure that subclasses don’t override the template method, we should make it final.

Template Method Abstract Class

Since we want some of the methods to be implemented by subclasses, we have to make our base class as abstract class. HouseTemplate.java

package com.journaldev.design.template;

public abstract class HouseTemplate {

	//template method, final so subclasses can't override
	public final void buildHouse(){
		buildFoundation();
		buildPillars();
		buildWalls();
		buildWindows();
		System.out.println("House is built.");
	}

	//default implementation
	private void buildWindows() {
		System.out.println("Building Glass Windows");
	}

	//methods to be implemented by subclasses
	public abstract void buildWalls();
	public abstract void buildPillars();

	private void buildFoundation() {
		System.out.println("Building foundation with cement,iron rods and sand");
	}
}

buildHouse() is the template method and defines the order of execution for performing several steps.

Template Method Concrete Classes

We can have different type of houses, such as Wooden House and Glass House. WoodenHouse.java

package com.journaldev.design.template;

public class WoodenHouse extends HouseTemplate {

	@Override
	public void buildWalls() {
		System.out.println("Building Wooden Walls");
	}

	@Override
	public void buildPillars() {
		System.out.println("Building Pillars with Wood coating");
	}

}

We could have overridden other methods also, but for simplicity I am not doing that. GlassHouse.java

package com.journaldev.design.template;

public class GlassHouse extends HouseTemplate {

	@Override
	public void buildWalls() {
		System.out.println("Building Glass Walls");
	}

	@Override
	public void buildPillars() {
		System.out.println("Building Pillars with glass coating");
	}

}

Template Method Design Pattern Client

Let’s test our template method pattern example with a test program. HousingClient.java

package com.journaldev.design.template;

public class HousingClient {

	public static void main(String[] args) {

		HouseTemplate houseType = new WoodenHouse();

		//using template method
		houseType.buildHouse();
		System.out.println("************");

		houseType = new GlassHouse();

		houseType.buildHouse();
	}

}

Notice that client is invoking the template method of base class and depending of implementation of different steps, it’s using some of the methods from base class and some of them from subclass. Output of the above program is:

Building foundation with cement,iron rods and sand
Building Pillars with Wood coating
Building Wooden Walls
Building Glass Windows
House is built.
************
Building foundation with cement,iron rods and sand
Building Pillars with glass coating
Building Glass Walls
Building Glass Windows
House is built.

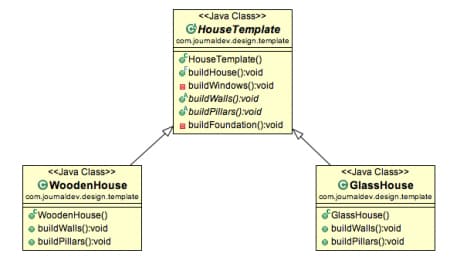

Template Method Class Diagram

template method design pattern, template design pattern

Template Method Design Pattern in JDK

  • All non-abstract methods of java.io.InputStream, java.io.OutputStream, java.io.Reader and java.io.Writer.
  • All non-abstract methods of java.util.AbstractList, java.util.AbstractSet and java.util.AbstractMap.

Template Method Design Pattern Important Points

  1. Template method should consists of certain steps whose order is fixed and for some of the methods, implementation differs from base class to subclass. Template method should be final.
  2. Most of the times, subclasses calls methods from super class but in template pattern, superclass template method calls methods from subclasses, this is known as Hollywood Principle - “don’t call us, we’ll call you.”.
  3. Methods in base class with default implementation are referred as Hooks and they are intended to be overridden by subclasses, if you want some of the methods to be not overridden, you can make them final, for example in our case we can make buildFoundation() method final because if we don’t want subclasses to override it.

Thats all for template method design pattern in java, I hope you liked it.
