Spring JDBC Example

Published on August 3, 2022
author

Pankaj

Spring JDBC Example

Spring JDBC is the topic of this tutorial. Databases are integral part of most of the Enterprise Applications. So when it comes to a Java EE framework, having good integration with JDBC is very important.

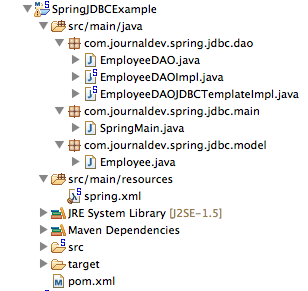

Spring JDBC

spring jdbc, spring jdbc example, spring JDBCTemplate, JDBCTemplate Spring Framework provides excellent integration with JDBC API and provides JdbcTemplate utility class that we can use to avoid bolier-plate code from our database operations logic such as Opening/Closing Connection, ResultSet, PreparedStatement etc. Let’s first look at a simple Spring JDBC example application and then we will see how JdbcTemplate class can help us in writing modular code with ease, without worrying whether resources are closed properly or not. Spring Tool Suite to develop Spring based applications is very helpful, so we will use STS to create our Spring JDBC application. Our final project structure will look like below image. Spring JDBC Example, Spring JDBC, Spring JdbcTemplate Create a simple Spring Maven Project from the STS Menu, you can choose whatever name you like or stick with my project name as SpringJDBCExample.

Spring JDBC Dependencies

First of all we need to include Spring JDBC and Database drivers in the maven project pom.xml file. My final pom.xml file looks like below.

<project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.springframework.samples</groupId>
	<artifactId>SpringJDBCExample</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>

		<!-- Generic properties -->
		<java.version>1.6</java.version>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

		<!-- Spring -->
		<spring-framework.version>4.0.2.RELEASE</spring-framework.version>

		<!-- Logging -->
		<logback.version>1.0.13</logback.version>
		<slf4j.version>1.7.5</slf4j.version>

	</properties>

	<dependencies>
		<!-- Spring and Transactions -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring-framework.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>${spring-framework.version}</version>
		</dependency>

		<!-- Spring JDBC Support -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring-framework.version}</version>
		</dependency>

		<!-- MySQL Driver -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.0.5</version>
		</dependency>

		<!-- Logging with SLF4J & LogBack -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
			<scope>compile</scope>
		</dependency>
		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
			<scope>runtime</scope>
		</dependency>

	</dependencies>
</project>

Most of the part is automatically generated by STS, however I have update Spring Framework version to use latest version as 4.0.2.RELEASE. Also we have added required artifacts spring-jdbc and mysql-connector-java. First one contains the Spring JDBC support classes and second one is database driver. I am using MySQL database for our testing purposes, so I have added MySQL JConnector jar dependencies. If you are using some other RDBMS then you should make the corresponding changes in the dependencies.

Spring JDBC Example - Database Setup

Let’s create a simple table that we will use in our application for CRUD operations example.

CREATE TABLE `Employee` (
  `id` int(11) unsigned NOT NULL,
  `name` varchar(20) DEFAULT NULL,
  `role` varchar(20) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

Spring JDBC Example - Model Class

We will use DAO Pattern for JDBC operations, so let’s create a java bean that will model our Employee table.

package com.journaldev.spring.jdbc.model;

public class Employee {

	private int id;
	private String name;
	private String role;

	public int getId() {
		return id;
	}
	public void setId(int id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getRole() {
		return role;
	}
	public void setRole(String role) {
		this.role = role;
	}

	@Override
	public String toString(){
		return "{ID="+id+",Name="+name+",Role="+role+"}";
	}
}

Spring JDBC Example - DAO Interface and Implementation

For DAO pattern, we will first have an interface declaring all the operations we want to implement.

package com.journaldev.spring.jdbc.dao;

import java.util.List;

import com.journaldev.spring.jdbc.model.Employee;

//CRUD operations
public interface EmployeeDAO {

	//Create
	public void save(Employee employee);
	//Read
	public Employee getById(int id);
	//Update
	public void update(Employee employee);
	//Delete
	public void deleteById(int id);
	//Get All
	public List<Employee> getAll();
}
package com.journaldev.spring.jdbc.dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.sql.DataSource;

import com.journaldev.spring.jdbc.model.Employee;

public class EmployeeDAOImpl implements EmployeeDAO {

	private DataSource dataSource;

	public void setDataSource(DataSource dataSource) {
		this.dataSource = dataSource;
	}

	@Override
	public void save(Employee employee) {
		String query = "insert into Employee (id, name, role) values (?,?,?)";
		Connection con = null;
		PreparedStatement ps = null;
		try{
			con = dataSource.getConnection();
			ps = con.prepareStatement(query);
			ps.setInt(1, employee.getId());
			ps.setString(2, employee.getName());
			ps.setString(3, employee.getRole());
			int out = ps.executeUpdate();
			if(out !=0){
				System.out.println("Employee saved with id="+employee.getId());
			}else System.out.println("Employee save failed with id="+employee.getId());
		}catch(SQLException e){
			e.printStackTrace();
		}finally{
			try {
				ps.close();
				con.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}

	@Override
	public Employee getById(int id) {
		String query = "select name, role from Employee where id = ?";
		Employee emp = null;
		Connection con = null;
		PreparedStatement ps = null;
		ResultSet rs = null;
		try{
			con = dataSource.getConnection();
			ps = con.prepareStatement(query);
			ps.setInt(1, id);
			rs = ps.executeQuery();
			if(rs.next()){
				emp = new Employee();
				emp.setId(id);
				emp.setName(rs.getString("name"));
				emp.setRole(rs.getString("role"));
				System.out.println("Employee Found::"+emp);
			}else{
				System.out.println("No Employee found with id="+id);
			}
		}catch(SQLException e){
			e.printStackTrace();
		}finally{
			try {
				rs.close();
				ps.close();
				con.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
		return emp;
	}

	@Override
	public void update(Employee employee) {
		String query = "update Employee set name=?, role=? where id=?";
		Connection con = null;
		PreparedStatement ps = null;
		try{
			con = dataSource.getConnection();
			ps = con.prepareStatement(query);
			ps.setString(1, employee.getName());
			ps.setString(2, employee.getRole());
			ps.setInt(3, employee.getId());
			int out = ps.executeUpdate();
			if(out !=0){
				System.out.println("Employee updated with id="+employee.getId());
			}else System.out.println("No Employee found with id="+employee.getId());
		}catch(SQLException e){
			e.printStackTrace();
		}finally{
			try {
				ps.close();
				con.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}

	@Override
	public void deleteById(int id) {
		String query = "delete from Employee where id=?";
		Connection con = null;
		PreparedStatement ps = null;
		try{
			con = dataSource.getConnection();
			ps = con.prepareStatement(query);
			ps.setInt(1, id);
			int out = ps.executeUpdate();
			if(out !=0){
				System.out.println("Employee deleted with id="+id);
			}else System.out.println("No Employee found with id="+id);
		}catch(SQLException e){
			e.printStackTrace();
		}finally{
			try {
				ps.close();
				con.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}

	@Override
	public List<Employee> getAll() {
		String query = "select id, name, role from Employee";
		List<Employee> empList = new ArrayList<Employee>();
		Connection con = null;
		PreparedStatement ps = null;
		ResultSet rs = null;
		try{
			con = dataSource.getConnection();
			ps = con.prepareStatement(query);
			rs = ps.executeQuery();
			while(rs.next()){
				Employee emp = new Employee();
				emp.setId(rs.getInt("id"));
				emp.setName(rs.getString("name"));
				emp.setRole(rs.getString("role"));
				empList.add(emp);
			}
		}catch(SQLException e){
			e.printStackTrace();
		}finally{
			try {
				rs.close();
				ps.close();
				con.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
		return empList;
	}

}

The implementation of CRUD operations are simple to understand. If you want to learn more about DataSource, please read JDBC DataSource Example.

Spring JDBC Example - Bean Configuration

If you look at all the classes above, they are all using standard JDBC API and there is no reference to Spring JDBC framework. Spring JDBC framework classes comes into picture when we create Spring Bean Configuration file and define the beans. We will create the DataSource in the Spring Bean context file and set it to our DAO implementation class. My Spring Bean Configuration file looks like below.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="https://www.springframework.org/schema/beans"
	xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="https://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">

	<bean id="employeeDAO" class="com.journaldev.spring.jdbc.dao.EmployeeDAOImpl">
		<property name="dataSource" ref="dataSource" />
	</bean>

	<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">

		<property name="driverClassName" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/TestDB" />
		<property name="username" value="pankaj" />
		<property name="password" value="pankaj123" />
	</bean>

</beans>

First of all we are creating a DataSource object of class DriverManagerDataSource. This class provides the basic implementation of DataSource that we can use. We are passing MySQL database URL, username and password as properties to the DataSource bean. Again dataSource bean is set to the EmployeeDAOImpl bean and we are ready with our Spring JDBC implementation. The implementation is loosely coupled and if we want to switch to some other implementation or move to other database server, all we need is to make corresponding changes in the bean configurations. This is one of the major advantage provided by Spring JDBC framework.

Spring JDBC Test Class

Let’s write a simple test class to make sure everything is working fine.

package com.journaldev.spring.jdbc.main;

import java.util.List;
import java.util.Random;

import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.journaldev.spring.jdbc.dao.EmployeeDAO;
import com.journaldev.spring.jdbc.model.Employee;

public class SpringMain {

	public static void main(String[] args) {
		//Get the Spring Context
		ClassPathXmlApplicationContext ctx = new ClassPathXmlApplicationContext("spring.xml");

		//Get the EmployeeDAO Bean
		EmployeeDAO employeeDAO = ctx.getBean("employeeDAO", EmployeeDAO.class);

		//Run some tests for JDBC CRUD operations
		Employee emp = new Employee();
		int rand = new Random().nextInt(1000);
		emp.setId(rand);
		emp.setName("Pankaj");
		emp.setRole("Java Developer");

		//Create
		employeeDAO.save(emp);

		//Read
		Employee emp1 = employeeDAO.getById(rand);
		System.out.println("Employee Retrieved::"+emp1);

		//Update
		emp.setRole("CEO");
		employeeDAO.update(emp);

		//Get All
		List<Employee> empList = employeeDAO.getAll();
		System.out.println(empList);

		//Delete
		employeeDAO.deleteById(rand);

		//Close Spring Context
		ctx.close();

		System.out.println("DONE");
	}

}

I am using Random Class to generate random number for employee id. When we run above program, we get following output.

Mar 25, 2014 12:54:18 PM org.springframework.context.support.ClassPathXmlApplicationContext prepareRefresh
INFO: Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@4b9af9a9: startup date [Tue Mar 25 12:54:18 PDT 2014]; root of context hierarchy
Mar 25, 2014 12:54:18 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
INFO: Loading XML bean definitions from class path resource [spring.xml]
Mar 25, 2014 12:54:19 PM org.springframework.jdbc.datasource.DriverManagerDataSource setDriverClassName
INFO: Loaded JDBC driver: com.mysql.jdbc.Driver
Employee saved with id=726
Employee Found::{ID=726,Name=Pankaj,Role=Java Developer}
Employee Retrieved::{ID=726,Name=Pankaj,Role=Java Developer}
Employee updated with id=726
[{ID=726,Name=Pankaj,Role=CEO}]
Employee deleted with id=726
Mar 25, 2014 12:54:19 PM org.springframework.context.support.ClassPathXmlApplicationContext doClose
INFO: Closing org.springframework.context.support.ClassPathXmlApplicationContext@4b9af9a9: startup date [Tue Mar 25 12:54:18 PDT 2014]; root of context hierarchy
DONE

Spring JdbcTemplate Example

If you look at the DAO implementation class, there is a lot of boiler-plate code where we are opening and closing Connection, PreparedStatements and ResultSet. This can lead to resource leak if someone forgets to close the resources properly. We can use org.springframework.jdbc.core.JdbcTemplate class to avoid these errors. Spring JdbcTemplate is the central class in Spring JDBC core package and provides a lot of methods to execute queries and automatically parse ResultSet to get the Object or list of Objects. All we need is to provide the arguments as Object array and implement Callback interfaces such as PreparedStatementSetter and RowMapper for mapping arguments or converting ResultSet data to bean objects. Let’s look at another implementation of EmployeeDAO where we will use Spring JdbcTemplate class for executing different types of queries.

package com.journaldev.spring.jdbc.dao;

import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import javax.sql.DataSource;

import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.RowMapper;

import com.journaldev.spring.jdbc.model.Employee;

public class EmployeeDAOJDBCTemplateImpl implements EmployeeDAO {

	private DataSource dataSource;

	public void setDataSource(DataSource dataSource) {
		this.dataSource = dataSource;
	}

	@Override
	public void save(Employee employee) {
		String query = "insert into Employee (id, name, role) values (?,?,?)";

		JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);

		Object[] args = new Object[] {employee.getId(), employee.getName(), employee.getRole()};

		int out = jdbcTemplate.update(query, args);

		if(out !=0){
			System.out.println("Employee saved with id="+employee.getId());
		}else System.out.println("Employee save failed with id="+employee.getId());
	}

	@Override
	public Employee getById(int id) {
		String query = "select id, name, role from Employee where id = ?";
		JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);

		//using RowMapper anonymous class, we can create a separate RowMapper for reuse
		Employee emp = jdbcTemplate.queryForObject(query, new Object[]{id}, new RowMapper<Employee>(){

			@Override
			public Employee mapRow(ResultSet rs, int rowNum)
					throws SQLException {
				Employee emp = new Employee();
				emp.setId(rs.getInt("id"));
				emp.setName(rs.getString("name"));
				emp.setRole(rs.getString("role"));
				return emp;
			}});

		return emp;
	}

	@Override
	public void update(Employee employee) {
		String query = "update Employee set name=?, role=? where id=?";
		JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);
		Object[] args = new Object[] {employee.getName(), employee.getRole(), employee.getId()};

		int out = jdbcTemplate.update(query, args);
		if(out !=0){
			System.out.println("Employee updated with id="+employee.getId());
		}else System.out.println("No Employee found with id="+employee.getId());
	}

	@Override
	public void deleteById(int id) {

		String query = "delete from Employee where id=?";
		JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);

		int out = jdbcTemplate.update(query, id);
		if(out !=0){
			System.out.println("Employee deleted with id="+id);
		}else System.out.println("No Employee found with id="+id);
	}

	@Override
	public List<Employee> getAll() {
		String query = "select id, name, role from Employee";
		JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);
		List<Employee> empList = new ArrayList<Employee>();

		List<Map<String,Object>> empRows = jdbcTemplate.queryForList(query);

		for(Map<String,Object> empRow : empRows){
			Employee emp = new Employee();
			emp.setId(Integer.parseInt(String.valueOf(empRow.get("id"))));
			emp.setName(String.valueOf(empRow.get("name")));
			emp.setRole(String.valueOf(empRow.get("role")));
			empList.add(emp);
		}
		return empList;
	}

}

Important points to look into above code for Spring JdbcTemplate are:

  • Use of Object array to pass PreparedStatement arguments, we could also use PreparedStatementSetter implementation but passing Object array seems easy to use.
  • No code related to opening and closing connections, statements or result set. All that is handled internally by Spring JdbcTemplate class.
  • RowMapper anonymous class implementation to map the ResultSet data to Employee bean object in queryForObject() method.
  • queryForList() method returns list of Map whereas Map contains the row data mapped with key as the column name and value from the database row matching the criteria.

To use Spring JdbcTemplate implementation, all we need is to change the employeeDAO class in the Spring Bean configuration file as shown below.

<bean id="employeeDAO" class="com.journaldev.spring.jdbc.dao.EmployeeDAOJDBCTemplateImpl">
	<property name="dataSource" ref="dataSource" />
</bean>

When you will run the main class, the output of Spring JdbcTemplate implementation will be similar to the one seen above with normal JDBC implementation. That’s all for Spring JDBC Example tutorial, download the sample project from below link and play around with it to learn more.

Download Spring JDBC Project

Thanks for learning with the DigitalOcean Community. Check out our offerings for compute, storage, networking, and managed databases.

Learn more about our products

About the authors
Default avatar
Pankaj

author

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

Still looking for an answer?

Ask a questionSearch for more help

Was this helpful?

JournalDev
DigitalOcean Employee
DigitalOcean Employee badge
December 30, 2019

iam not able to download ojdbc in company envirinment .

- pankaj

    JournalDev
    DigitalOcean Employee
    DigitalOcean Employee badge
    April 23, 2019

    Clear Explanation, Thank you!

    - Divya

      JournalDev
      DigitalOcean Employee
      DigitalOcean Employee badge
      March 26, 2018

      Hi., Is it possible to use SpringJDBC to call a stored procedure that has TABLE TYPE as its IN and OUT Parameters? I have tried “sqlArrayValues” and “SqlReturnArray()” i still get type mismatch. I had to use simple JDBC to send TYPE TABLE parameters from a spring boot application. Any help would be very much appreciated.

      - Meghana

        JournalDev
        DigitalOcean Employee
        DigitalOcean Employee badge
        February 12, 2018

        How can I fetch multiple records by single Id?? even if I write while loop instead of if…the result is same…can anyone help…???

        - J Manas Kumar

          JournalDev
          DigitalOcean Employee
          DigitalOcean Employee badge
          January 31, 2018

          public void delete(int empId) { String sql = “delete from Employee where id=?”; JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource); int out = jdbcTemplate.update(sql,empId); if(out !=0){ System.out.println(“Employee deleted with id=”+empId); }else System.out.println(“No Employee found with id=”+empId); } in the above code I am facing issue at update(sql,empId); but in your code you just simply passed it . its saying >>>>>> The method update(String, PreparedStatementSetter) in the type JdbcTemplate is not applicable for the arguments (String, int)>>>>>>>>>>> and another thing if my emp id is String how can I insert that into db?? and I m also facing this issue … Employee emp = jdbcTemplate.queryForObject(query, new Object[]{empId}, new RowMapper() The type RowMapper is not generic; it cannot be parameterized with arguments so can u suggest me anything??? m Waiting For your reply… Thank you./…

          - J Manas Kumar

            JournalDev
            DigitalOcean Employee
            DigitalOcean Employee badge
            January 14, 2018

            Nice example … Grate efforts. :) I found 2 example for retrieve data from database. 1 - findAll() : Which return multiple record. 2 - findById() : Which return single value based on primary key as “Id”. Can you help me to resolve below query How to retrieve data using jdbcTemplate based on name findByName() which return multiple record from data base?

            - Manas Naik

              JournalDev
              DigitalOcean Employee
              DigitalOcean Employee badge
              September 8, 2017

              Precise and Clear. Thanks.

              - Udit

                JournalDev
                DigitalOcean Employee
                DigitalOcean Employee badge
                February 22, 2017

                Simple and straight forward explanation. Thanks Pankaj.

                - Anupama

                  JournalDev
                  DigitalOcean Employee
                  DigitalOcean Employee badge
                  November 16, 2016

                  Thanks for your efforts, much appreciated. I’m using JDBCTemplate to do batch update, but PreparedStatement.setLong() throws a null pointer exception if the value is null: preparedStatement.setLong(1, myBean.getLongVal()); // throws null pointer exception if myBean.getLongVal() = null Is there a workaround for this? The corresponding database column is nullable, so its ok for it to have a null value. This is not a problem for string fields, i.e. the following is perfectly fine if the value is null: preparedStatement.setLong(2, myBean.getStrVal()); // ok if myBean.getStrVal() = null

                  - Colm

                    JournalDev
                    DigitalOcean Employee
                    DigitalOcean Employee badge
                    October 20, 2016

                    Hi , I’m trying to make it connect to my database(sybase) by joining the drivername,url ,username and password.but when i do so i get an exception like this Exception in thread “main” org.springframework.beans.factory.BeanCreationException: Error creating bean with name ‘employeeDAO’ defined in class path resource [spring.xml]: Cannot resolve reference to bean ‘dataSource’ while setting bean property ‘dataSource’; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name ‘dataSource’ defined in class path resource [spring.xml]: Error setting property values; nested exception is org.springframework.beans.PropertyBatchUpdateException; nested PropertyAccessExceptions (1) are: PropertyAccessException 1: org.springframework.beans.MethodInvocationException: Property ‘driverClassName’ threw exception; nested exception is java.lang.IllegalStateException: Could not load JDBC driver class [com.sybase.jdbc3.jdbc.SybDriver] at org.springframework.beans.factory.support.BeanDefinitionValueResolver.resolveReference(BeanDefinitionValueResolver.java:328)

                    - Praveen Kumar Natarajan

                      Try DigitalOcean for free

                      Click below to sign up and get $200 of credit to try our products over 60 days!

                      Sign up

                      Join the Tech Talk
                      Success! Thank you! Please check your email for further details.

                      Please complete your information!

                      Featured on Community

                      Get our biweekly newsletter

                      Sign up for Infrastructure as a Newsletter.

                      Hollie's Hub for Good

                      Working on improving health and education, reducing inequality, and spurring economic growth? We'd like to help.

                      Become a contributor

                      Get paid to write technical tutorials and select a tech-focused charity to receive a matching donation.

                      Welcome to the developer cloud

                      DigitalOcean makes it simple to launch in the cloud and scale up as you grow — whether you're running one virtual machine or ten thousand.

                      Learn more
