Tutorial

Spring Security Role Based Access Authorization Example

Published on August 3, 2022
Default avatar

By Rambabu Posa

Spring Security Role Based Access Authorization Example

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

Today we will look into spring security role based access and authorization example. However before reading this post, please go through my previous post about “Spring 4 Security MVC Login Logout Example” to get some basic knowledge about Spring 4 Security.

Spring Security Role

In this post, we will discuss how to define, use and manage spring security roles like “USER”, “ADMIN” in Spring Web Application. Like my previous post, this post example is also using Spring 4 MVC Security with In-Memory Store and Spring Java Configuration Feature to develop the application. That means we are not going to use web.xml file and also not writing even single line of Spring XML Configuration. We will use “In-Memory Store” option to store and manage User Credentials. We are going to use Spring 4.0.2.RELEASE, Spring STS 3.7 Suite IDE, Spring TC Server 3.1 with Java 1.8 and Maven build tool to develop this example.

Spring Security Role Based Access Authorization Example

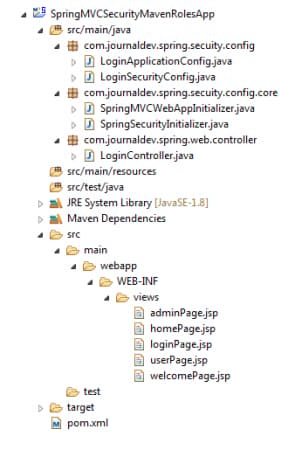

  1. Create a “Simple Spring Web Maven” Project in Spring STS Suite with the following details. Project Name : SpringMVCSecruityMavenRolesApp2. Use same pom.xml file from my previous post with the following changes
<artifactId>SpringMVCSecruityMavenRolesApp</artifactId>

<build>
  <finalName>SpringMVCSecruityMavenRolesApp</finalName>
</build>
</project>
  1. Use all Java and JSP files from my previous post. We will discuss only updated or newly added content here.
  2. Update LoginSecurityConfig.java file to configure User roles like “USER” and “ADMIN”. LoginSecurityConfig.java
package com.journaldev.spring.secuity.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableWebSecurity
public class LoginSecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder authenticationMgr) throws Exception {
		authenticationMgr.inMemoryAuthentication()
			.withUser("jduser").password("jdu@123").authorities("ROLE_USER")
			.and()
			.withUser("jdadmin").password("jda@123").authorities("ROLE_USER","ROLE_ADMIN");
	}

	@Override
	protected void configure(HttpSecurity http) throws Exception {


		http.authorizeRequests()
			.antMatchers("/homePage").access("hasRole('ROLE_USER') or hasRole('ROLE_ADMIN')")
			.antMatchers("/userPage").access("hasRole('ROLE_USER')")
			.antMatchers("/adminPage").access("hasRole('ROLE_ADMIN')")
			.and()
				.formLogin().loginPage("/loginPage")
				.defaultSuccessUrl("/homePage")
				.failureUrl("/loginPage?error")
				.usernameParameter("username").passwordParameter("password")
			.and()
				.logout().logoutSuccessUrl("/loginPage?logout");

	}
}

Code Explanation

  1. In configureGlobal() method, we have added two users: One user with “ROLE_USER” role and another user with both “ROLE_USER” and “ROLE_ADMIN” roles. That means this second user will act as a Admin User. Like this we can configure any number of users and roles.
  2. We can use either authorities(ROLE) or roles(ROLE) methods to configure Roles in our application.
  3. Difference between authorities() and roles() methods:
  • authorities() needs complete role name like “ROLE_USER”
  • roles() needs role name like “USER”. It will automatically adds “ROLE_” value to this “USER” role name.
  1. In configure() method, we have defined different URLs with required Access Roles.
antMatchers("/homePage")
   .access("hasRole('ROLE_USER') or hasRole('ROLE_ADMIN')")

This code snippet configures that “/homePage” is available for both USER and ADMIN Roles.

 .antMatchers("/userPage").access("hasRole('ROLE_USER')")
 .antMatchers("/adminPage").access("hasRole('ROLE_ADMIN')")

This code snippet configures that “/userPage” is accessible by “USER” role only and .“/adminPage” is accessible by “ADMIN” role only. If other roles access these pages, we will get access “403 Access is Denied” Error message.

  1. Update LoginController.java Controller file to define new URL access paths as shown below. LoginController.java
package com.journaldev.spring.web.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class LoginController {

	@RequestMapping(value = { "/"}, method = RequestMethod.GET)
	public ModelAndView welcomePage() {
		ModelAndView model = new ModelAndView();
		model.setViewName("welcomePage");
		return model;
	}

	@RequestMapping(value = { "/homePage"}, method = RequestMethod.GET)
	public ModelAndView homePage() {
		ModelAndView model = new ModelAndView();
		model.setViewName("homePage");
		return model;
	}

	@RequestMapping(value = {"/userPage"}, method = RequestMethod.GET)
	public ModelAndView userPage() {
		ModelAndView model = new ModelAndView();
		model.setViewName("userPage");
		return model;
	}

	@RequestMapping(value = {"/adminPage"}, method = RequestMethod.GET)
	public ModelAndView adminPage() {
		ModelAndView model = new ModelAndView();
		model.setViewName("adminPage");
		return model;
	}

	@RequestMapping(value = "/loginPage", method = RequestMethod.GET)
	public ModelAndView loginPage(@RequestParam(value = "error",required = false) String error,
	@RequestParam(value = "logout",	required = false) String logout) {

		ModelAndView model = new ModelAndView();
		if (error != null) {
			model.addObject("error", "Invalid Credentials provided.");
		}

		if (logout != null) {
			model.addObject("message", "Logged out from JournalDEV successfully.");
		}

		model.setViewName("loginPage");
		return model;
	}

}

Code Explanation In addition to the previous post Example, here we have added two more new URLs.

  1. “/userPage” is used by USER Role to access and perform Normal user activities.

  2. “/adminPage” is used by ADMIN Role to access and perform Admin user activities. ADMIN role can access “/userPage” URL too.

  3. Updated homePage.jsp file to provide User and Admin Roles specific activities. homePage.jsp

<%@taglib prefix="c" uri="https://java.sun.com/jsp/jstl/core"%>
<a href="${pageContext.request.contextPath}/userPage">JD User</a> | <a href="${pageContext.request.contextPath}/adminPage">JD Admin</a> | <a href="javascript:document.getElementById('logout').submit()">Logout</a>

<h3>Welcome to JournalDEV Tutorials</h3>
<ul>
   <li>Java 8 tutorial</li>
   <li>Spring tutorial</li>
   <li>Gradle tutorial</li>
   <li>BigData tutorial</li>
</ul>

<c:url value="/logout" var="logoutUrl" />
<form id="logout" action="${logoutUrl}" method="post" >
  <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
</form>

Here we have add three Menu like options at top frame. “Logout” is already discussed in my previous post. New two links are:

  1. JD User: Accessible by both “USER” and “ADMIN” Roles
  2. JD Admin: Accessible only by both “ADMIN” Roles

NOTE:- In Real-time applications, we will show only “JD User” link to “USER” Role and hide “JD Admin” link. To test whether it is accessible by “USER” Role or not and also to see the exact error message, we have not hidden this link.20. Add new adminPage.jsp file to act as a Homepage for “ADMIN” role. adminPage.jsp

<%@taglib prefix="c" uri="https://java.sun.com/jsp/jstl/core"%>
<h3>Welcome to JournalDEV Tutorials</h3>
<h3>Admin Page</h3>

<c:url value="/logout" var="logoutUrl" />
<form id="logout" action="${logoutUrl}" method="post" >
  <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
</form>
<c:if test="${pageContext.request.userPrincipal.name != null}">
	<a href="javascript:document.getElementById('logout').submit()">Logout</a>
</c:if>
  1. Add new userPage.jsp file to act as a Homepage for “USER” role. userPage.jsp
<%@taglib prefix="c" uri="https://java.sun.com/jsp/jstl/core"%>
<h3>Welcome to JournalDEV Tutorials</h3>
<h3>User Page</h3>

<c:url value="/logout" var="logoutUrl" />
<form id="logout" action="${logoutUrl}" method="post" >
  <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
</form>
<c:if test="${pageContext.request.userPrincipal.name != null}">
	<a href="javascript:document.getElementById('logout').submit()">Logout</a>
</c:if>

We have completed our application development now. It’s time to see our project final structure and test the application.26. Final Project Structure looks like this: spring security roles example

Spring Security Roles Example Application Test

  1. Right Click on Project in Spring STS IDE and select “Run AS >> Run on Server” option. It will access default Application welcome page as shown below: security security  role login inmemory example3. Click on “Login to JournalDEV” link.Now you are at Login Page. Spring Security Role Based Access Authorization Example5. First login with “USER” Role Credentials: Username: jduser Password: jdu@123 Spring Security Role Now we will see Application HomePage with 3 Menu Options: “JD User”, “JD Admin” and “Logout”. Click on “JD User” link. As we have logged into application using “USER” Role Credentials, We can access this link as shown below. Spring Security Role Based Access Just use backword arrow in Spring STS IDE and this time click on “JD Admin” Link. Spring Security Roles As we have logged in with “USER” Role Credentials, We cannot access this link. That’s why we saw this error message: “403 Access is denied”.9. Now Logged and again login with ADMIN Role Credentials Username: jdadmin Password: jda@123 This time we can access “JD Admin” Link successfully as shown below. Spring Security Roles Example Test “Logout” link to Logged out of the Application.

That’s all about Spring security roles example to provide authorised access to web application pages.
