Understanding SVG preserveAspectRatio

Published on July 11, 2019
    Default avatar

    By Paul Ryan

    Understanding SVG preserveAspectRatio

    While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

    preserveAspectRatio is the partner in crime of the SVG viewBox.

    If you do not understand the viewBox just yet, then go check out my other article here explaining it.

    preserveAspectRatio gives us the ability to tell our graphic how to scale when the aspect ratio of the viewBox and viewPort are different. By default our preserveAspectRatio will tell our image to scale to fit the viewPort and to be centered. To explicitly set the default preserveAspectRatio, we do the following:

    <svg viewBox="0 0 100 100" preserveAspectRatio="xMidYMid meet">

    Let’s break this down a little so it’s not so scary looking!

    • xMidYMid - center the viewBox region within the viewPort region
    • meet - scale our graphic until it meets the height and width of our viewPort

    Yikes! This is still pretty confusing, so let’s use an example to understand. We will use the famous Alligator.io logo to help our understanding.

    Delving into preserveAspectRatio

    Alligator.io logo

    The following is the markup for our SVG:

    <svg width="100%" height="auto" viewBox="0 0 137 137" xmlns="http://www.w3.org/2000/svg">
      <g fill="none" fill-rule="evenodd">
        <path d="M55.56 128.42a3.57 3.57 0 0 1-3.53-4.21c.03-.16 2.81-16.26-1.86-25.98-2.9-6.02-6.09-7.1-11.86-9.07-2.96-1-6.32-2.15-10.16-4.21-6.43-3.46-9.3-9.67-14.62-14.14C6.35 64.78-5.12 58.74 2.7 47.08c3.32-4.95 9.79-7.45 14.39-7.68a15 15 0 0 1 .73-.02c3.46 0 6.3 1.23 8.58 2.21 1.24.54 2.41 1.04 3.3 1.17.26.04.55.06.86.06.75 0 1.58-.1 2.46-.22 1.05-.14 2.22-.29 3.47-.29.88 0 1.7.07 2.5.23 1.25.23 2.54.47 3.65.47.46 0 .85-.04 1.18-.13.71-.17 1.46-.4 2.19-.64 1.35-.42 2.74-.85 4.29-1.12a11.69 11.69 0 0 1 3.67-.04c-3.42-2.46-6.18-5.5-5.1-9.09 1.29-4.32 6.91-4.82 11.04-4.82 2.1 0 4.53.15 7.23.46.52-4.97.67-13.19.67-13.27a3.6 3.6 0 0 1 2.13-3.21c.47-.21 4.91-2.08 13.6-2.08l2 .03c9.94.32 16.55 2.3 17.27 2.52.68.2 7.3 2.18 15.78 7.36 8.52 5.22 11.6 9.78 11.91 10.28.75 1.16.76 2.67.02 3.84-.5.79-4.58 7.32-6.75 11.51a53.62 53.62 0 0 1 8.14 4.94c1.42 1.09 5.74 4.4 4.49 8.61-1.06 3.55-5.04 4.52-8.7 4.76 1.75 4.74 1.65 9.3-.34 13.36l-.28.55c-1.01 2.05-1.12 2.26-.76 3.83.3 1.33.78 2.68 1.28 4.1.54 1.56 1.1 3.16 1.5 4.89l.26.95.02.08c.3 1.06.81 2.85 1.19 4.4.6 2.4 1.2 4.9-.94 6.5-.4.3-10.27 7.5-32.83 10.21-20.61 2.48-38.93 15.8-39.11 15.93-.63.46-1.36.7-2.13.7" fill="#FFFFFE"/>
        <path d="M94.06 39.45c9.6 2.86 18.12 6.08 24.27 9a32.64 32.64 0 0 1 1.86-4.69c2.25-4.54 7.3-12.57 7.3-12.57s-2.72-4.23-10.77-9.16c-8.39-5.12-14.96-6.98-14.96-6.98s-6.51-2.06-16.34-2.37c-9.43-.3-14.03 1.74-14.03 1.74s-.17 9.48-.8 14.52c-.21 1.77-.59 3.42-.98 4.82 6.65.98 15.23 2.93 24.45 5.69" fill="#322549"/>
        <path d="M132.97 57.14c-1.28 4.27-20.38 2.33-42.65-4.33-22.28-6.66-39.3-15.52-38.02-19.8 1.27-4.27 20.37-2.33 42.65 4.33 22.27 6.66 39.3 15.52 38.02 19.8" fill="#322549"/>
        <path d="M121.36 54.91c-.72 2.42-14.43.45-30.6-4.4-16.19-4.83-28.72-10.7-28-13.11.71-2.41 14.42-.45 30.6 4.39s28.72 10.71 28 13.12" fill="#322549"/>
        <path d="M64.58 37.85c-.54.23-1.06.49-1.56.8-2.73 1.72-4.12 4.6-5.8 7.22-2.09-.94-4.01-1.62-6.32-1.22-2.14.37-4.15 1.19-6.2 1.7-2.03.52-4.28.1-6.37-.3-3.2-.6-6.07.7-9.15.25-3.44-.49-7.02-3.57-11.9-3.33-4.15.22-9.23 2.57-11.6 6.1-2.28 3.4-2.18 11.1 2.82 12.21 2.2.5 3.8-.16 5.23 1.92 4.73 6.83 8.68 14.6 16.12 18.6 10.94 5.87 18.27 3.94 23.54 14.88 5.27 10.95 2.17 28.16 2.17 28.16s18.92-13.97 40.81-16.6c21.9-2.64 31.12-9.53 31.12-9.53.47-.35-1.73-7.56-1.88-8.26-.7-3.06-2.08-5.92-2.78-8.99-.7-3.04.02-4.12 1.31-6.76 2.28-4.64 1.09-9.59-1.4-13.89-2.25-3.9-5.7-7.3-9.94-8.94-7.53-2.9-10.14-3.41-10.14-3.41s-1.22-8.75-15.81-10.57c-5.42-.68-10.78-1.8-16.27-1.3-2 .18-4.11.48-6 1.26" fill="#322549"/>
        <path d="M10.3 60.03s1.22 6.5 2.43 6.5c1.22 0 1.9-6.5 1.9-6.5H10.3" fill="#322549"/>
        <path d="M17.03 49.9c-2.1.63-3.98.5-4.22-.3-.24-.8 1.26-1.96 3.35-2.59 2.1-.63 3.98-.5 4.22.3.24.8-1.26 1.96-3.35 2.59zm70.02 45.77c6.56-2.9 13.2-5.78 19.42-9.36 4.75-2.74 10.49-6.25 13.05-11.3 5.3-10.41-6.67-18.76-15.53-20.42-1.5-.28-12.81-1.72-13.23.85.41-2.54 3.22-3.68 4.56-5.64 2.12-3.07-.87-3.64-3.26-4.67-4.12-1.78-8.4-3.1-12.92-3.19-4.66-.08-8.55.45-12.05 3.88-.62.6-1.43 1.5-1.55 2.35-.35 2.51 4.67 3.29 6.1 2.4a28.4 28.4 0 0 1 10.78-3.73c2.48-.31 5.05-.44 7.46.32.65.21 1.35.46 1.91.85.06.04.48.45.52.45h-4.05s-2.43 3.82-8.1 5.44c-5.68 1.63-13.3-1.62-13.3-1.62s-5.56-2.64-10.58-1.99c-5.03.65-6.13 0-6.13 0v2.4s-2.43-1.63-5.27-2.4c-2.84-.77-6.9-2.67-11.96-1.84-5.07.84-6.09.18-10.75-1.84-4.66-2.01-9.68-1.43-12.57 3.68-2.89 5.12.81 8.4.81 8.4l4.22.11c.92-.06 1.84-.11 2.7-.1.29-1.77 1.12-5.6 3.08-6.55 2.56-1.24 1.36 3 1.63 5 .12.9.31 1.79.48 2.5 3.39 1.27 6.67 3.24 11.2 2.57 5.48-.82 11.36-4.61 16.63-1.7l.22.12c.51-1.15 1.76-3.67 3.03-4 1.66-.44.14 2.27-.13 3.7-.12.63-.2 1.26-.25 1.77.56.31 1.12.62 1.68.9.36-1.35 1.03-3.39 2.04-3.88 1.54-.74.57 2.21.59 3.66 0 .53.03 1.06.07 1.51 2.66 1.14 5.28 1.79 7.96 1.36 5.06-.81 5.83-3.02 13.58.14 2.27.92 4.68 2.99 7.05 3.31 1.5.2 5.88-.06 5.73-2.37.07 1.04.85 1.45.28 2.62-.43.9-1.45 1.45-2.35 1.75-2.72.94-4.85-.69-7.31-1.6-2.72-1.02-5.74-2.78-8.67-3.07-3.65-.37-8.52 2.06-13.38 1.25-4.87-.81-8.92-6.7-15.61-5.88-6.7.81-9.13 4.06-15 2.43-.91-.25-1.73-.52-2.49-.8-.05.2-.1.44-.14.72-.2 1.55.72 4.82-1.26 3.86-1.56-.76-2.2-4.6-2.4-6.2-2.23-1.01-4.22-1.83-7-1.83-.44 0-.85.02-1.25.05 1.63 2.74 5.84 9.4 10.89 14.15C32.7 80.27 39 80.46 39 80.46s-2.03-1.62-3.85-3.04c-1.83-1.42-4.46-5.92-4.46-5.92a64 64 0 0 0 10.94 7.34 501.7 501.7 0 0 0 13.59 6.9s-1.02-.2-3.45-.62c-2.43-.4-7.1-2.22-7.1-2.22s6.29 5.47 12.57 9.53c6.29 4.05 17.64 8.3 17.64 8.3s2.38-.74 12.17-5.06z" fill="#F5EA3C"/>
        <path d="M72.96 31.3l-.12.62c6.56 1.51 13.7 3.4 21.13 5.65a324.6 324.6 0 0 1 22.61 7.71l.27-.63c-6.13-2.82-13.79-8.7-22-11.18-7.98-2.4-15.38-1.11-21.9-2.17M75.52 50.67s2.3 1.77 5.24 1.11c2.95-.64 5.25-2.82 5.25-2.82s-1.73-.32-3.92-.17c-.1.37-.21.78-.36 1.12-.35.78-1.2 1.19-1.2 1.19s-.24-.37-.41-1.34a2.78 2.78 0 0 1-.04-.7c-2.56.53-4.56 1.6-4.56 1.6M119.74 81.8s-5.31 4.91-17.9 10.61c-13.44 6.1-27.48 10.92-41.07 16.7l-.79 7.28s10.23-5.9 24.97-9.23c14.74-3.35 24.76-5.37 29.67-6.42a32.9 32.9 0 0 0 8.66-3.22l-3.54-15.72" fill="#FFFFFE"/><path d="M17.03 49.9c-2.1.63-3.98.5-4.22-.3-.24-.8 1.26-1.96 3.35-2.59 2.1-.63 3.98-.5 4.22.3.24.8-1.26 1.96-3.35 2.59zm89.44 36.4c4.75-2.73 10.49-6.24 13.05-11.29 5.3-10.41-6.67-18.76-15.53-20.42-1.5-.28-12.81-1.72-13.23.85.41-2.54 3.22-3.68 4.56-5.64 2.12-3.07-.87-3.64-3.26-4.67-4.12-1.78-8.4-3.1-12.92-3.19-4.66-.08-8.55.45-12.05 3.88-.62.6-1.43 1.5-1.55 2.35-.35 2.51 4.67 3.29 6.1 2.4a28.4 28.4 0 0 1 10.78-3.73c2.48-.31 5.05-.44 7.46.32.65.21 1.35.46 1.91.85.06.04.48.45.52.45h-4.05s-2.43 3.82-8.1 5.44c-5.68 1.63-13.3-1.62-13.3-1.62s-5.56-2.64-10.58-1.99c-5.03.65-6.13 0-6.13 0v2.4s-2.43-1.63-5.27-2.4c-2.84-.77-6.9-2.67-11.96-1.84-5.07.84-6.09.18-10.75-1.84-4.66-2.01-9.68-1.43-12.57 3.68-2.89 5.12.81 8.4.81 8.4l4.22.11c.92-.06 1.84-.11 2.7-.1.29-1.77 1.12-5.6 3.08-6.55 2.56-1.24 1.36 3 1.63 5 .12.9.31 1.79.48 2.5 3.39 1.27 6.67 3.24 11.2 2.57 5.48-.82 11.36-4.61 16.63-1.7l.22.12c.51-1.15 1.76-3.67 3.03-4 1.66-.44.14 2.27-.13 3.7-.12.63-.2 1.26-.25 1.77.56.31 1.12.62 1.68.9.36-1.35 1.03-3.39 2.04-3.88 1.54-.74.57 2.21.59 3.66 0 .53.03 1.06.07 1.51 2.66 1.14 5.28 1.79 7.96 1.36 5.06-.81 5.83-3.02 13.58.14 2.27.92 4.68 2.99 7.05 3.31 1.22.17 2.86.12 4-.4 1.71-.79.68-1.98-.89-1.89a3.02 3.02 0 0 1 2.4-1.4c3.41-.23 4.58 4.4 5.71 6.81 1.7 3.61 1.35 7.59-.5 11.07-5.6 10.49-22.03 17.44-22.03 17.44s2.38-.75 12.17-5.07c6.56-2.9 13.2-5.78 19.42-9.36z" fill="#409144"/>
        <path d="M65.56 65.66c5.06-.81 5.83-3.02 13.58.14 2.27.92 4.68 2.99 7.05 3.31 1.02.14 3.38.06 4.73-.74l.44-.82c-1.63.37-5.75 1.02-7.92-1.01-2.75-2.58-4.64-4.2-11.54-3.26-5.73.8-9.33 1.01-14.3-1.4-.05.33-.08.65-.07.9 0 .54.03 1.07.07 1.52 2.66 1.14 5.28 1.79 7.96 1.36zm-9.92-4.83c-.43-.24-.87-.5-1.33-.8l-.66-.4a6.3 6.3 0 0 0-.18.7c-.12.64-.2 1.27-.25 1.78.56.31 1.12.62 1.68.9.17-.65.42-1.46.74-2.18zm-38.3-2.14c.09-.6.25-1.44.5-2.32-3.7-.64-7.19-.61-9.1-.53.5 1.81 1.67 2.85 1.67 2.85l4.22.11c.92-.06 1.84-.11 2.7-.1zm33.01 1.83l.22.12c.23-.52.62-1.33 1.1-2.09-5.17-2.49-8.23-1.34-12.39.25-4.82 1.86-8.34 2.23-15.58-.8a22 22 0 0 0-1.62-.6c.12.81.29 1.6.45 2.25 3.38 1.27 6.66 3.24 11.2 2.57 5.47-.82 11.35-4.61 16.62-1.7zM104 54.59c-1.25-.23-9.27-1.26-12.18-.13l-.18.07-.73.56a.92.92 0 0 0-.14.35c.01-.1.04-.19.06-.28L87.12 58s17.72-2.29 22.27 8.54c4.56 10.82-7.95 21.33-17.19 26.85 4.85-2.17 9.68-4.43 14.27-7.08 4.75-2.74 10.49-6.25 13.05-11.3 5.3-10.41-6.67-18.76-15.53-20.42zM69.9 50.92l-2.5-.45c.77.3 1.7.45 2.5.45zm.58 5.63c-2.59-1.2-5.03-3.69-6.46-5.33 1.7.52 2.83 1.06 2.83 1.06s7.63 3.24 13.3 1.62a16 16 0 0 0 1.97-.7l.05-.01c.16-.07.31-.13.48-.22l.06-.03c3.86-1.83 5.56-4.48 5.56-4.48h4.04s-1.34 4.69-7.24 7.48c-5.9 2.8-10.54 2.5-14.59.61z" fill="#317F3F"/>
        <path d="M85.43 96.38l.15-.07-.15.07M75 100.7l-.05.01.04-.01M75.14 100.65c-.02 0-.03 0-.04.02l.04-.02M75.36 100.57l-.07.02.07-.02M30 65.52c8.31.75 12.91-1.93 16.1-1.68 3.2.26 3.72 3.2 12.15 4.6 8.44 1.41 11.8-2.17 16.2.13 3.34 1.75 6.7 3.77 10.4 4.72 1.1.28 2.71.5 4.23.35 2-.19 3.86-.99 4.19-3.06.26-1.7-.93-2.5-1.35-3.77.19.89.73 1.63.28 2.55-.43.9-1.45 1.45-2.35 1.75-2.72.94-4.85-.69-7.31-1.6-2.72-1.02-5.74-2.78-8.67-3.07-3.65-.37-8.52 2.06-13.38 1.25-4.87-.81-8.92-6.7-15.61-5.88-6.7.81-9.13 4.06-15 2.43-.91-.25-1.73-.52-2.49-.8a6.51 6.51 0 0 0-.16 1.8c.9.1 1.82.2 2.77.28M23.6 61.82c-2.24-1.01-4.23-1.83-7-1.83-.45 0-.86.02-1.26.05.53.9 1.34 2.2 2.36 3.73 1.53.3 3.77.7 6.47 1.08-.3-1.14-.48-2.31-.57-3.03" fill="#E8B63D"/>
        <path d="M33 75.01c.5 1.28.6 2.5-.79 2.58-2.93.18-14.5-13.82-14.52-13.83a61.82 61.82 0 0 0 8.54 10.43C32.7 80.27 39 80.46 39 80.46s-2.03-1.62-3.85-3.04a13.13 13.13 0 0 1-2.15-2.4M41.63 78.84l1.31.69c-6.04-3.58-11.5-7.41-11.54-7.44a65.6 65.6 0 0 0 10.23 6.75M93.45 88.1a33.72 33.72 0 0 1-11.38 2.54c-9.15.3-20.75-2.87-28.85-5.89l2 .98s-1.02-.2-3.45-.6c-2.43-.4-7.1-2.23-7.1-2.23s6.29 5.47 12.57 9.53c6.29 4.05 17.64 8.3 17.64 8.3s11.54-4.88 18.57-12.64M76.52 100.13l-.15.06.15-.06M81.73 97.98l-.45.2.45-.2M76.05 100.31l-.12.05.11-.05M80.53 98.48l-.36.16.36-.16M84.72 96.7l-.82.35.82-.36M83.11 97.39l-.59.25.59-.25M77.1 99.9l-.18.07.17-.07M78.56 99.31l-.24.1.24-.1M79.49 98.92l-.31.14.3-.14" fill="#E8B63D"/>
        <path d="M66.83 52.6c-.07-2.58 1.23-4.7 2.92-4.76 1.7-.04 3.12 2 3.19 4.58.07 2.58-1.24 4.7-2.92 4.75-1.7.05-3.12-2-3.19-4.58zm17.56 45.22c-5.62-2.47-12.84-7.58-13.06-15.43-.2-6.76.32-19.85.48-23.37 1.88-.93 3.2-3.56 3.11-6.61-.1-3.79-2.31-6.8-4.93-6.72-2.62.07-4.66 3.2-4.55 6.98.1 3.73 2.25 6.7 4.81 6.71-.25 3.67-.84 17.21-.51 23.54.38 7.3 7.66 15.72 18.12 17.27 10.32 1.51 29.54 1.09 29.54 1.09l1.71-1.24S90 100.3 84.4 97.82z" fill="#322549"/>
      </g>
    </svg>


    As you can see we haven’t defined a preserveAspectRatio for our SVG so it will default to preserveAspectRatio="xMidYMid meet".

    The scale ratio of our image is 1:1 so when the height and width of our viewPort matches, we won’t have to worry about our preserveAspectRatio

    What will happen when the aspect ratio of our viewPort and viewBox are different?

    Let’s look at a few examples:

    Height and Width 100

    In the above example our viewPort has the dimensions 100x100 so our preserveAspectRatio does not matter here.


    500 x 500

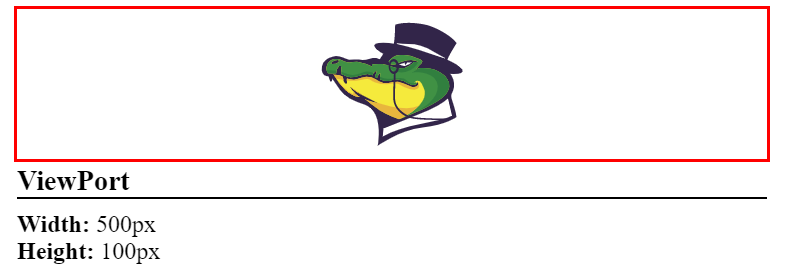

    Now our dimensions are 500x100 , as you can see the image is now centered and the aspect ratio stays the same.

    If we were to set preserveAspectRatio="none", our image would stretch to fit the viewPort just like a raster image:

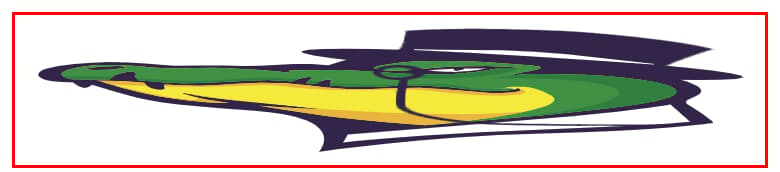

    Stretched Image

    I think you can now see why preserveAspectRatio is so useful!

    Meet vs Slice

    So far we have only used the meet value, this tells our image to be contained within the viewPort, similar to background-size: contain. What would happen instead if we changed this to slice?

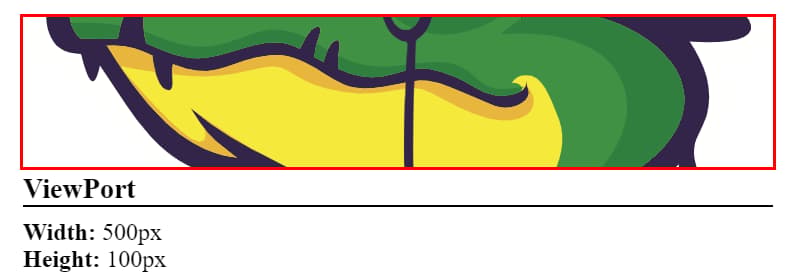

    Slice Example

    Hmm, so what exactly has happened? slice behaves similarly to background-size:cover , our image will basically scale to the dimensions of the viewPort and slice off any excess. This can be quite useful for background images or a background on a banner.

    Mid/Min/Max

    Above we have used xMidYMid,which is what you will use the majority of the time but we can also use Min and Max.

    Let’s take the following:

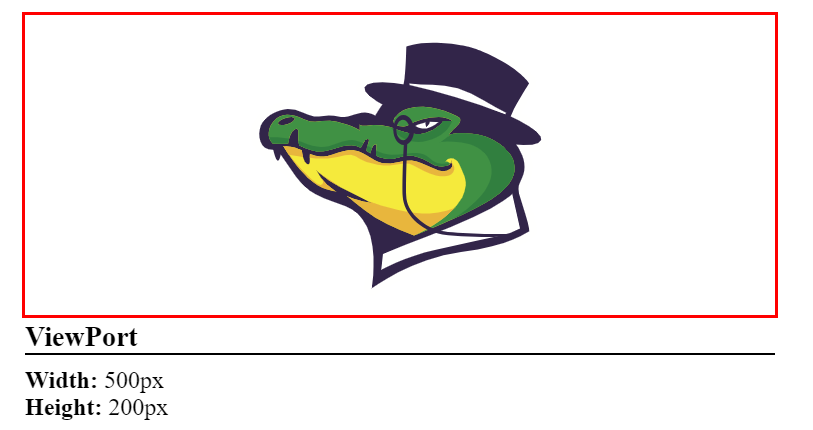

    Min/Max Example

    Our alligator is centered here due to xMidYMid, if we wanted to align our alligator to the left, we would just do xMinYMid.

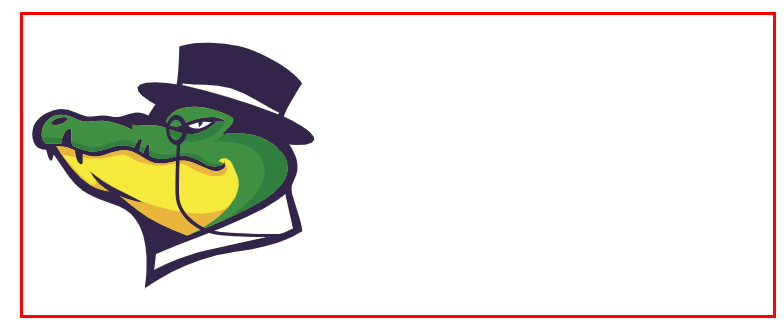

    xMin Example

    As a little test, ask yourself how would you align the alligator to the right?

    Now let’s take the following dimensions:

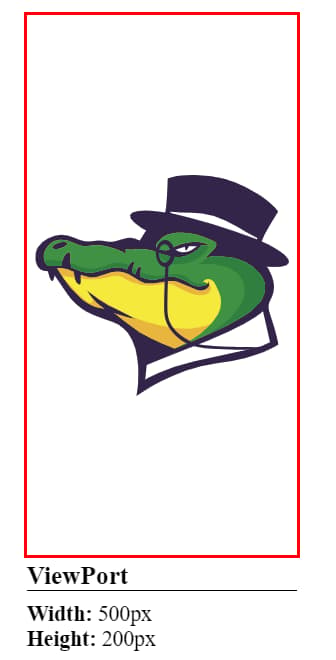

    Y Min

    If in this example, we wanted to align our alligator to the top we would do xMidYMin and it would give us the following:

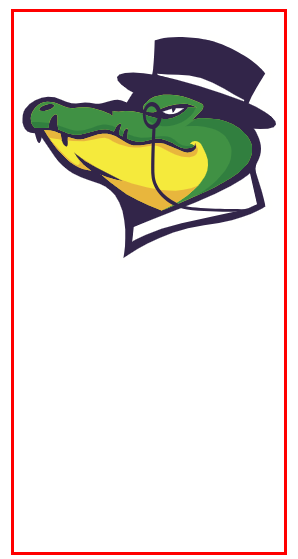

    Another Y Min

    Again ask yourself, how would you align this to the bottom?

    Conclusion

    This should give you a very solid understanding of preserveAspectRatio and how to scale your graphics. Thank you for reading!
