jaxb2-maven-plugin XJC example to Generate Java Classes from XSD

Published on August 3, 2022
Default avatar
By Pankaj
Developer and author at DigitalOcean.
jaxb2-maven-plugin XJC example to Generate Java Classes from XSD

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

Today we will look into jaxb2-maven-plugin XJC example to generate java classes from XSD. JAXB is the middleware technology between Java Classes and XML. We can use JAXB to generate XML from Java Object and vice versa.

jaxb2-maven-plugin

We use XSD to define the contract data structure, so it’s not common to generate java classes that represent the XML schema. jaxb2-maven-plugin XJC is JAXB Binding compiler tool that can be used to generate Java Classes from XSD files. Here we will learn how to use jaxb2-maven-plugin XJC in a maven project to generate java classes from XSD. First of all we have to create a maven project, then we need to use jaxb2-maven-plugin plugin to generate java classes from XSD. pom.xml

<project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>jd</groupId>
  <artifactId>jd</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <name>JD Example XSD to Java</name>


	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>
	<build>
		<plugins>
			<!-- Plugin required to build java classes from XSD using XJC -->
			<plugin>
				<groupId>org.codehaus.mojo</groupId>
				<artifactId>jaxb2-maven-plugin</artifactId>
				<version>1.5</version>
				<executions>
					<execution>
						<goals>
							<goal>xjc</goal>
						</goals>
					</execution>
				</executions>
				<configuration>
                   <!-- The name of your generated source package -->
                	<arguments>-extension -npa -b ${project.basedir}/src/main/xsd/global.xjb</arguments>
                </configuration>
			</plugin>

		</plugins>
	</build>

</project>

Notice the global.xjb file in arguments, this is where we specify java binding rules. global.xjb

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<jaxb:bindings version="2.0"
  xmlns:jaxb="https://java.sun.com/xml/ns/jaxb"
  xmlns:xjc="https://java.sun.com/xml/ns/jaxb/xjc"
  xmlns:xs="https://www.w3.org/2001/XMLSchema"
  jaxb:extensionBindingPrefixes="xjc">

 <jaxb:globalBindings>
    <xjc:simple />
    <xjc:serializable uid="-1" />
    <jaxb:javaType name="java.util.Calendar" xmlType="xs:dateTime"
      parseMethod="javax.xml.bind.DatatypeConverter.parseDateTime"
      printMethod="javax.xml.bind.DatatypeConverter.printDateTime" />
  </jaxb:globalBindings>
</jaxb:bindings>

Here is the XSD that will be used to generate java classes. Employee.xsd

<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="https://www.w3.org/2001/XMLSchema"
	targetNamespace="https://www.journaldev.com/com/journaldev/employee/data"
	xmlns:empns="https://www.journaldev.com/com/journaldev/employee/data"
	elementFormDefault="qualified">

	<element name="empRequest" type="empns:EmpRequest"></element>
	<element name="empResponse" type="empns:EmpResponse"></element>

	<complexType name="EmpRequest">
		<sequence>
			<element name="id" type="int" minOccurs="0" maxOccurs="1" />
			<element name="name" type="string" minOccurs="0" maxOccurs="1" />
		</sequence>
	</complexType>

	<complexType name="EmpResponse">
		<sequence>
			<element name="id" type="int" minOccurs="1" maxOccurs="1" />
			<element name="name" type="string" minOccurs="1" maxOccurs="1" />
			<element name="role" type="string" minOccurs="1" maxOccurs="unbounded" />
			<element name="gender" type="string" minOccurs="1" maxOccurs="1" />
			<element name="salary" type="string" minOccurs="1" maxOccurs="1" />
		</sequence>
	</complexType>

</schema>

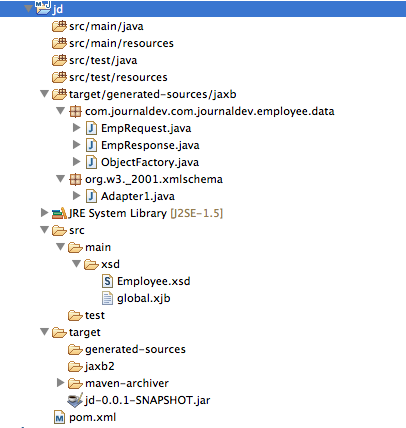

Just build the maven project using mvn clean install and you will see java classes generated in target/generated-sources/jaxb directory. Finally the project would look something like below image. jaxb2-maven-plugin XJC Example Further Read: JAXB Tutorial Reference: jaxb2 maven plugin official page, java xjc
