How to Generate XML from XSD in Eclipse

Published on August 3, 2022
Default avatar
By Pankaj
Developer and author at DigitalOcean.
How to Generate XML from XSD in Eclipse

While we believe that this content benefits our community, we have not yet thoroughly reviewed it. If you have any suggestions for improvements, please let us know by clicking the “report an issue“ button at the bottom of the tutorial.

If you work on web services, you must have been using XSD. To test the web service, you need to generate XML from XSD file.

Generate XML from XSD

We can use Eclipse IDE to easily generate XML from the XSD file. Just follow the below steps to get XML from XSD.

  1. Select XSD File in project, right click for Menu and select Generate > XML File…
  2. Provide the XML file Name and XML File location in the popup window. Click on next button.

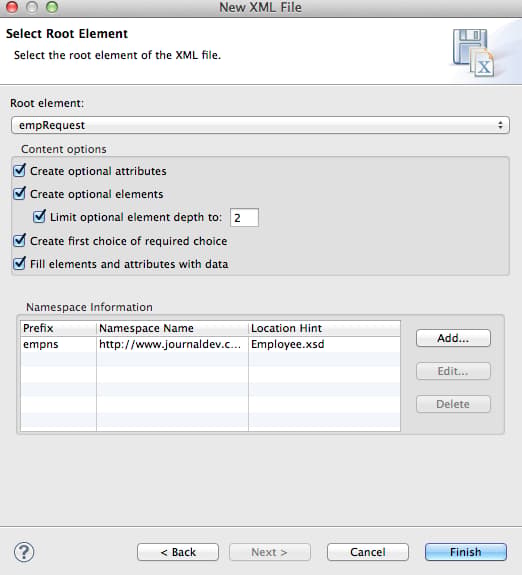

  3. Select the root element for which you want to generate the sample XML file, make sure to select checkboxes for “Create optional attributes” and “Create optional elements”. Below image shows how the window will look. generate xml from xsd5. Click on Finish button and it will generate the XML File for you with the default values. Now you can change the values according to your requirement.

XSD to XML Example

Here is the XSD for which I will be generating XML files. Employee.xsd

<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="https://www.w3.org/2001/XMLSchema"
targetNamespace="https://www.journaldev.com/Employee"
xmlns:empns="https://www.journaldev.com/Employee" elementFormDefault="qualified">

	<element name="empRequest" type="empns:empRequest"></element>

	<element name="empResponse" type="empns:empResponse"></element>

	<complexType name="empRequest">
		<sequence>
			<element name="id" type="int"></element>
		</sequence>
	</complexType>

	<complexType name="empResponse">
		<sequence>
			<element name="id" type="int"></element>
			<element name="role" type="string"></element>
			<element name="fullName" type="string"></element>
		</sequence>
	</complexType>
</schema>

Since Employee.xsd has two root elements; empRequest and empResponse; I can generate two XML files. Here are the XML files generated by Eclipse, the values are changed by me. EmployeeRequest.xml

<?xml version="1.0" encoding="UTF-8"?>
<empns:empRequest xmlns:empns="https://www.journaldev.com/Employee" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://www.journaldev.com/Employee Employee.xsd ">
  <empns:id>5</empns:id>
</empns:empRequest>

EmployeeResponse.xml

<?xml version="1.0" encoding="UTF-8"?>
<empns:empResponse xmlns:empns="https://www.journaldev.com/Employee" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://www.journaldev.com/Employee Employee.xsd ">
  <empns:id>1</empns:id>
  <empns:role>Developer</empns:role>
  <empns:fullName>Pankaj Kumar</empns:fullName>
</empns:empResponse>

I hope this quick tip will help you in generating XML from XSD easily.
