How To Use Top, Netstat, Du, & Other Tools to Monitor Server Resources

PostedAugust 26, 2013 64.8k views Monitoring Linux Commands

How Do You Monitor Your System's Health?

Every computer system benefits from proper administration and monitoring. Keeping an eye on how your system is running will help you discover issues and resolve them quickly.

There are plenty of command line utilities created for this purpose. This guide will introduce you to some of the most helpful applications to have in your toolbox.

Table of Contents

  1. How Do I Monitor Process Utilization?
  2. How Do I Find Out Which Program Is Using My Bandwidth?
  3. How Do I Find Out How Much Disk Space I Have Left?
  4. How Do I Find Out How Much of my Memory Is In Use?
  5. Conclusion

How Do I Monitor Process Utilization?

top

One of the most common tools for checking the resource utilization of processes is "top".

Top provides a simple, real-time table of your processes, with the largest consumers on top:

top
top - 14:45:52 up 29 min,  1 user,  load average: 0.10, 0.09, 0.06
Tasks:  56 total,   1 running,  55 sleeping,   0 stopped,   0 zombie
Cpu(s):  0.0%us,  0.3%sy,  0.0%ni, 99.7%id,  0.0%wa,  0.0%hi,  0.0%si,  0.0%st
Mem:   1019600k total,   393756k used,   625844k free,    11136k buffers
Swap:        0k total,        0k used,        0k free,   316748k cached

  PID %MEM  VIRT SWAP  RES CODE DATA  SHR nFLT nDRT S  PR  NI %CPU COMMAND
  832  1.3 32364  18m  12m  896  11m 1688    1    0 S  20   0  0.0 bash
  820  0.4 89456  83m 4008  488  948 3040   12    0 S  20   0  0.0 sshd
  812  0.3 49948  46m 2828  488  616 2216    0    0 S  20   0  0.0 sshd
    1  0.2 24192  21m 2108  152  868 1300   23    0 S  20   0  0.0 init
  400  0.1  243m 242m 1420  344 216m 1084    0    0 S  20   0  0.0 rsyslogd

The top portion has some system statistics, including load averages for the past minute, 5 minutes, and 15 minutes. It also shows memory and swap usage, and the count of various process states.

The bottom portion has every process on the system, organized by the top users of resources. This list is updated in real-time.

htop

Although "top" is included in almost every distribution by default, an improved version, called "htop" is available for download from most repositories.

To install htop on Ubuntu, type the following:

sudo apt-get install htop

Running htop, we can see that it has a similar output, but is colorized, and is more interactive:

htop
CPU[|                         0.7%]     Tasks: 21, 3 thr; 1 running
  Mem[|||||||||||||         64/995MB]     Load average: 0.00 0.02 0.05
  Swp[                         0/0MB]     Uptime: 00:37:37

  PID USER      PRI  NI  VIRT   RES   SHR S CPU% MEM%   TIME+  Command
 2752 root       20   0 25660  1876  1364 R  0.0  0.2  0:00.06 htop
    1 root       20   0 24192  2108  1300 S  0.0  0.2  0:00.55 /sbin/init
  312 root       20   0 17224   640   444 S  0.0  0.1  0:00.04 upstart-udev-brid
  314 root       20   0 21592  1360   760 S  0.0  0.1  0:00.04 /sbin/udevd --dae
  394 messagebu  20   0 23808   688   436 S  0.0  0.1  0:00.01 dbus-daemon --sys
  401 syslog     20   0  243M  1420  1084 S  0.0  0.1  0:00.07 rsyslogd -c5
  402 syslog     20   0  243M  1420  1084 S  0.0  0.1  0:00.00 rsyslogd -c5

The top portion is much easier to read and the bottom portion is organized in a more clear fashion.

Here are some keys that will help you use htop more effectively:

  • M: Sort processes by memory usage
  • P: Sort processes by processor usage
  • ?: Access help
  • k: Kill current/tagged process
  • F2: Setup htop. You can choose display options here.
  • /: Search processes

There are plenty of more options you that you can access through help or setup. These should be your first stops in exploring htop's functionality.

How Do I Find Out Which Program Is Using My Bandwidth?

nethogs

If your network connection seems saturated and you are unsure which application is the culprit, a program called "nethogs" is a good choice for finding out.

On Ubuntu, you can install nethogs with the following command:

sudo apt-get install nethogs

We can run it by simply typing:

nethogs
NetHogs version 0.8.0

  PID USER     PROGRAM                      DEV        SENT      RECEIVED
3379  root     /usr/sbin/sshd               eth0       0.485       0.182 KB/sec
820   root     sshd: root@pts/0             eth0       0.427       0.052 KB/sec
?     root     unknown TCP                             0.000       0.000 KB/sec

  TOTAL                                                0.912       0.233 KB/sec

As you can see, above all, nethogs output is simple. It associates each application with its associated network traffic.

There are only a few commands that you can use to control net hogs:

  • m: Change displays between "kb/s", "kb", "b", and "mb".
  • r: Sort by traffic received.
  • s: Sort by traffic sent.
  • q: quit

Although this is a simple tool, nethogs is a great way to associate traffic with a specific applications.

IPTraf

IPTraf is another great way to monitor network traffic. It provides a number of different interactive monitoring interfaces.

On Ubuntu, you can install IPTraf with the following command:

sudo apt-get install iptraf

To run the program, simply call it from the command line with root privileges:

sudo iptraf
                      ???????????????????????????????????

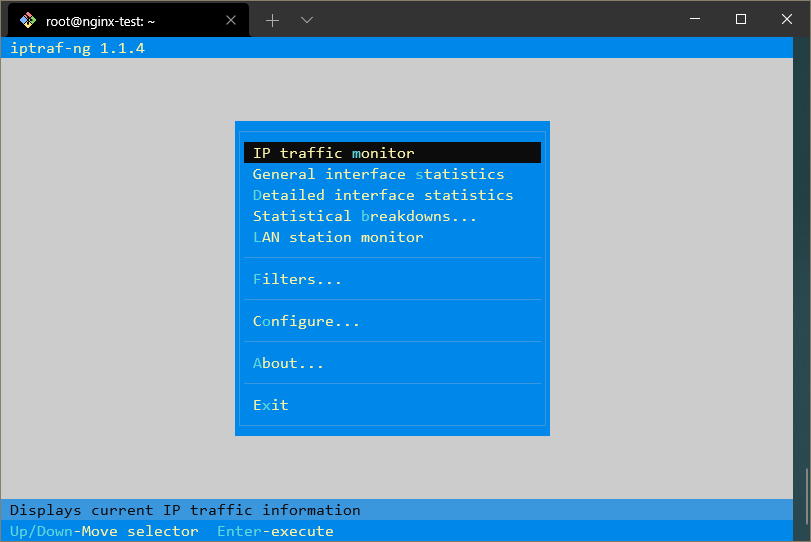

                      ? IP traffic monitor              ?
                      ? General interface statistics    ?
                      ? Detailed interface statistics   ?
                      ? Statistical breakdowns...       ?
                      ? LAN station monitor             ?
                      ???????????????????????????????????
                      ? Filters...                      ?
                      ???????????????????????????????????
                      ? Configure...                    ?
                      ???????????????????????????????????
                      ? Exit                            ?
                      ???????????????????????????????????

With this menu, you can select which interface you would like to access.

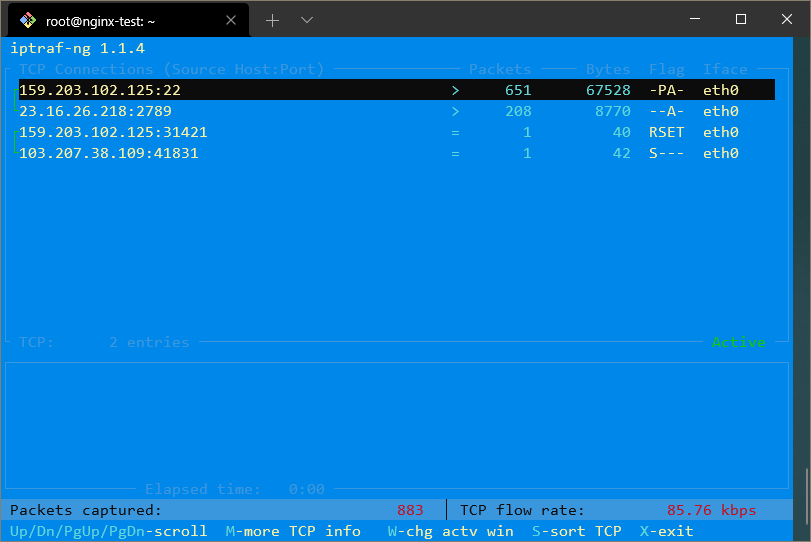

For example, to get an overview of all network traffic, we can select the first menu and then "All interfaces". It will give you a screen that looks like this:

IPTraf
? TCP Connections (Source Host:Port) ?????????? Packets ??? Bytes Flags  Iface ?
??192.241.xxx.xxx:22                          >     369     82420 -PA-   eth0  ?
??72.43.xxx.xxx:49488                         >     381     19860 --A-   eth0  ?
?                                                                              ?
?                                                                              ?

Here, you can see what IP addresses you are communicating on all of your network interfaces.

If you would like to have those IP addresses resolved into domains, you can enable reverse DNS lookup by exiting the traffic screen, selecting "Configure" and then selecting "Reverse DNS lookups".

You can also enable "TCP/UDP service names" to display using the names of the services instead of the port.

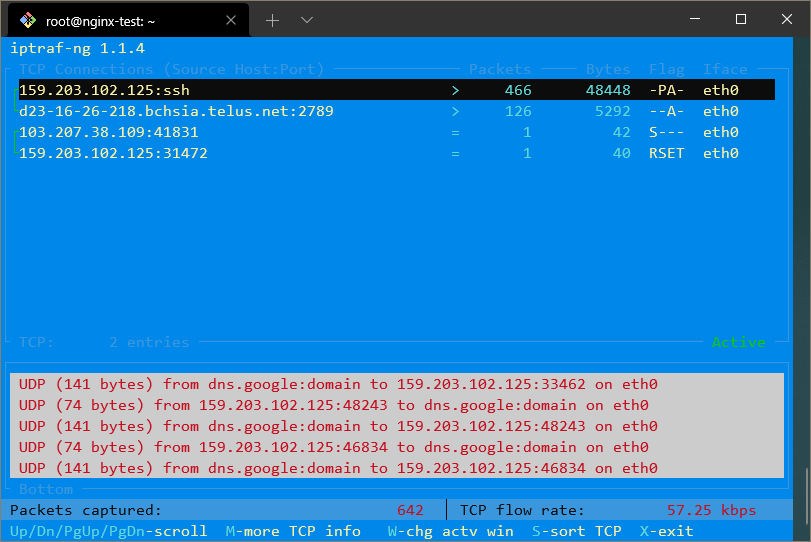

With both of these options enabled, the display may look like this:

 TCP Connections (Source Host:Port) ?????????? Packets ??? Bytes Flags  Iface ?
??192.241.xxx.xxx:ssh                         >     151     34924 -PA-   eth0  ?
??rrcs-72-43-xxx-xxx.nyc.biz.rr.co:49488      >     155      8108 --A-   eth0  ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
?                                                                              ?
? TCP:      1 entries ???????????????????????????????????????????????? Active ??
????????????????????????????????????????????????????????????????????????????????
? UDP (72 bytes) from 192.241.xxx.xxx:43463 to 8.8.8.8:domain on eth0          ?
? UDP (66 bytes) from 192.241.xxx.xxx:53140 to 8.8.8.8:domain on eth0          ?
? UDP (135 bytes) from 8.8.8.8:domain to 192.241.xxx.xxx:41429 on eth0         ?
? UDP (119 bytes) from 8.8.8.8:domain to 192.241.xxx.xxx:43463 on eth0         ?
? UDP (110 bytes) from google-public-dns-a.googl:domain to 192.241.xxx.xxx:531 ?

There are several other interfaces to investigate on your own.

netstat

The "netstat" command is a versatile tool for gathering network information. It is extremely flexible and powerful.

By default, netstat prints a list of open sockets:

netstat
Active Internet connections (w/o servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 192.241.187.204:ssh     ip223.hichina.com:50324 ESTABLISHED
tcp        0      0 192.241.187.204:ssh     rrcs-72-43-115-18:50615 ESTABLISHED
Active UNIX domain sockets (w/o servers)
Proto RefCnt Flags       Type       State         I-Node   Path
unix  5      [ ]         DGRAM                    6559     /dev/log
unix  3      [ ]         STREAM     CONNECTED     9386
unix  3      [ ]         STREAM     CONNECTED     9385
. . .

If we add an "-a" option, it will list all ports, listening and non-listening:

netstat -a
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 *:ssh                   *:*                     LISTEN
tcp        0      0 192.241.187.204:ssh     rrcs-72-43-115-18:50615 ESTABLISHED
tcp6       0      0 [::]:ssh                [::]:*                  LISTEN
Active UNIX domain sockets (servers and established)
Proto RefCnt Flags       Type       State         I-Node   Path
unix  2      [ ACC ]     STREAM     LISTENING     6195     @/com/ubuntu/upstart
unix  2      [ ACC ]     STREAM     LISTENING     7762     /var/run/acpid.socket
unix  2      [ ACC ]     STREAM     LISTENING     6503     /var/run/dbus/system_bus_socket
. . .

If you'd like to filter to see only TCP or UDP connections, use the "-t" or "-u" flags respectively:

netstat -at
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 *:ssh                   *:*                     LISTEN
tcp        0      0 192.241.187.204:ssh     rrcs-72-43-115-18:50615 ESTABLISHED
tcp6       0      0 [::]:ssh                [::]:*                  LISTEN

See statistics by passing the "-s" flag:

netstat -s
Ip:
    13500 total packets received
    0 forwarded
    0 incoming packets discarded
    13500 incoming packets delivered
    3078 requests sent out
    16 dropped because of missing route
Icmp:
    41 ICMP messages received
    0 input ICMP message failed.
    ICMP input histogram:
        echo requests: 1
        echo replies: 40
. . .

If you would like to continuously update the output, you can use the "-c" flag.

There are many other options that can change the output. Explore the man pages for more ideas.

How Do I Find Out How Much Disk Space I Have Left?

df

For a quick overview of how much disk space you have left on your drives, you can use the "df" program.

Without any options, its output looks like this:

df
Filesystem     1K-blocks    Used Available Use% Mounted on
/dev/vda        31383196 1228936  28581396   5% /
udev              505152       4    505148   1% /dev
tmpfs             203920     204    203716   1% /run
none                5120       0      5120   0% /run/lock
none              509800       0    509800   0% /run/shm

This outputs disk usage in bytes, which may be a bit hard to read.

To fix this problem, we can specify to output in a human-readable format:

Filesystem      Size  Used Avail Use% Mounted on
/dev/vda         30G  1.2G   28G   5% /
udev            494M  4.0K  494M   1% /dev
tmpfs           200M  204K  199M   1% /run
none            5.0M     0  5.0M   0% /run/lock
none            498M     0  498M   0% /run/shm

If we want to see the total disk space available on all filesystems, we can pass the "--total" option. This will add a row at the bottom with summary information:

df -h --total
Filesystem      Size  Used Avail Use% Mounted on
/dev/vda         30G  1.2G   28G   5% /
udev            494M  4.0K  494M   1% /dev
tmpfs           200M  204K  199M   1% /run
none            5.0M     0  5.0M   0% /run/lock
none            498M     0  498M   0% /run/shm
total            32G  1.2G   29G   4%

du

While df is an easy way of geting an overview, "du" gives a better picture of what is taking up space on your system.

The command will analyze usage for the current directory and any subdirectories. The default output of du looks like this:

du
4	./.cache
8	./.ssh
28	.

Once again, we can specify human-readable output by passing it "-h":

du -h
4.0K	./.cache
8.0K	./.ssh
28K	.

To see file sizes as well as directories, type the following:

du -a
0	./.cache/motd.legal-displayed
4	./.cache
4	./.ssh/authorized_keys
8	./.ssh
4	./.profile
4	./.bashrc
4	./.bash_history
28	.

For a total at the bottom, you can add the "-c" option:

du -c
4	./.cache
8	./.ssh
28	.
28	total

If you are only interested in the total and not the specifics, you can issue:

du -s
28	.

Improvements

These two tools have improved versions that can be installed on Ubuntu.

An improved version of df is "pydf". It can be installed with this command:

sudo apt-get install pydf

The pydf command organizes everything in neat charts with colorized output. It shows disk usage graphically with usage bars:

pydf -a
dev/vda     30G 1200M   27G  3.9 [........] /
udev        493M 4096B  493M  0.0 [........] /dev
devpts         0     0     0    - [........] /dev/pts
proc           0     0     0    - [........] /proc
tmpfs       199M  204k  199M  0.1 [........] /run
none       5120k     0 5120k  0.0 [........] /run/lock
none        498M     0  498M  0.0 [........] /run/shm
. . .

An improvement on du is "ncdu". This command can be installed by typing:

sudo apt-get install ncdu
This command uses an interactive ncurses display to graphically represent your disk usage:
ncdu
--- /root ----------------------------------------------------------------------
    8.0KiB [##########] /.ssh
    4.0KiB [#####     ] /.cache
    4.0KiB [#####     ]  .bashrc
    4.0KiB [#####     ]  .profile
    4.0KiB [#####     ]  .bash_history

You can step through the filesystem by using the up and down arrows and pressing "enter" on any directory entry.

How Do I Find Out How Much of my Memory Is In Use?

free

The easiest way of finding out the current memory usage on your system is using the "free" command.

When used without options, the output looks like this:

free
             total       used       free     shared    buffers     cached
Mem:        507620     408172      99448          0     123672     248224
-/+ buffers/cache:      36276     471344
Swap:            0          0          0

To display in a more readable format, we can pass the "-m" option to display the output in megabytes:

free -m
             total       used       free     shared    buffers     cached
Mem:           495        398         97          0        120        242
-/+ buffers/cache:         35        460
Swap:            0          0          0

The middle line, marked "-/+ buffers/cache", will show the actual memory used by applications.

The "Mem" line includes the memory used for buffering and caching, which is freed up as soon as needed for other purposes.

vmstat

The "vmstat" command can output various information about your system, including memory, swap, disk io, and cpu information.

We will use the command to get another view into memory usage:

vmstat
procs -----------memory---------- ---swap-- -----io---- -system-- ----cpu----
 r  b   swpd   free   buff  cache   si   so    bi    bo   in   cs us sy id wa
 1  0      0  99340 123712 248296    0    0     0     1    9    3  0  0 100  0

We can see this in megabytes by choosing our unit with the "-S" flag:

vmstat -S M
procs -----------memory---------- ---swap-- -----io---- -system-- ----cpu----
 r  b   swpd   free   buff  cache   si   so    bi    bo   in   cs us sy id wa
 1  0      0     96    120    242    0    0     0     1    9    3  0  0 100  0

As you can see, this tool helps us break down the "-/+ buffers/cache" category of the "free" command.

We get to see how much of that block is used for buffering and how much for cache.

To get some general statistics about memory usage, type:

vmstat -s -S M
          495 M total memory
          398 M used memory
          252 M active memory
          119 M inactive memory
           96 M free memory
          120 M buffer memory
          242 M swap cache
            0 M total swap
            0 M used swap
            0 M free swap
. . .

To get information about individual system processes' cache usage, type:

vmstat -m -S M
Cache                       Num  Total   Size  Pages
ext4_groupinfo_4k           195    195    104     39
UDPLITEv6                     0      0    768     10
UDPv6                        10     10    768     10
tw_sock_TCPv6                 0      0    256     16
TCPv6                        11     11   1408     11
kcopyd_job                    0      0   2344     13
dm_uevent                     0      0   2464     13
bsg_cmd                       0      0    288     14
. . .

This will give you details about what kind of information is stored in the cache.

Conclusion

Using these tools, you should begin to be able to monitor your server from the command line. There are many other utilities that perform simple monitoring operations, but these are a good starting point.

By Justin Ellingwood

4 Comments

Creative Commons License
