How To Build Maps in Angular with Leaflet, Part 1: Generating Maps

Published on October 19, 2019 · Updated on March 29, 2021
Default avatar
By Chris Engelsma
Developer and author at DigitalOcean.
How To Build Maps in Angular with Leaflet, Part 1: Generating Maps

Introduction

Leaflet is a JavaScript library for creating maps. It comes packed with nice features and is extremely mobile-friendly.

Note: This is Part 1 of a 4-part series on using Angular and Leaflet.

You can use this library to display a map that supports zooming in and out and panning with click and drag.

In this tutorial, you will learn how to integrate Leaflet into an Angular app.

Prerequisites

To complete this tutorial, you will need:

This tutorial was verified with Node v15.12.0, npm v7.7.4, angular v11.2.7, and leaflet v1.7.1.

Step 1 — Setting Up the Project

You can use @angular/cli to create a new Angular Project.

In your terminal window, use the following command:

  1. npx @angular/cli new angular-leaflet-example --style=css --routing=false --skip-tests

This will configure a new Angular project with styles set to “CSS” (as opposed to “Sass”, Less", or “Stylus”), no routing, and skipping tests.

Navigate to the newly created project directory:

  1. cd angular-leaflet-example

From your project folder, run the following command to install leaflet:

  1. npm install leaflet@1.7.1

With this scaffolding set in place, you can begin work on the map component.

Step 2 — Creating the Map Component

Now, you can create the custom map component:

  1. npx @angular/cli generate component map --skip-tests

This command will produce four new files: map.component.css, map.component.html, and map.component.ts. It will also update the app.module.ts file to use this new component.

Next, open map.component.ts and replace the content with the following lines of code:

src/app/map/map.component.html
<div class="map-container">
  <div class="map-frame">
    <div id="map"></div>
  </div>
</div>

Then, open map.component.css and replace the content with the following lines of code:

src/app/map/map.component.css
.map-container {
  position: absolute;
  top: 0;
  left: 0;
  right: 0;
  bottom: 0;
  margin: 30px;
}

.map-frame {
  border: 2px solid black;
  height: 100%;
}

#map {
  height: 100%;
}

This combination of markup and styles will create an outermost div with the class of .map-container that will position the map to occupy the available space on the screen.

It will also create a div with the id of #map. Using an id instead of a class here is important because Leaflet will expect an id to be passed to it for placing the map.

Next, open up map.component.ts and import the Leaflet package:

src/app/map/map.component.ts
import { Component, OnInit } from '@angular/core';
import * as L from 'leaflet';

@Component({
  selector: 'app-map',
  templateUrl: './map.component.html',
  styleUrls: ['./map.component.css']
})
export class MapComponent implements OnInit {
  constructor() { }

  ngOnInit(): void { }
}

The map div will need to exist in the DOM before you can reference it to create your map. This is possible during the AfterViewInit lifecycle hook. Extend your component to implement AfterViewInit and add the ngAfterViewInit() function to your component:

src/app/map/map.component.ts
import { Component, AfterViewInit } from '@angular/core';
import * as L from 'leaflet';

@Component({
  selector: 'app-map',
  templateUrl: './map.component.html',
  styleUrls: ['./map.component.css']
})
export class MapComponent implements AfterViewInit {
  constructor() { }

  ngAfterViewInit(): void { }
}

Let’s create a separate private function called initMap() to isolate all the map initialization.

In this function, you will need to create a new Leaflet map object. The API allows you to define options in it as well.

For this tutorial, you will set the center of the map and starting zoom value.

The center will be the geographic center of the contiguous United States located at 39.828175°N 98.579500°W.

The decimal coordinate system Leaflet uses assumes that anything to the west of the prime meridian will be a negative number, so the actual center coordinates will be [ 39.8282, -98.5795 ].

And the zoom level will be set to 3.

Declare a variable for the map object, create the map, and call it from ngAfterViewinit:

src/app/map/map.component.ts
import { Component, AfterViewInit } from '@angular/core';
import * as L from 'leaflet';

@Component({
  selector: 'app-map',
  templateUrl: './map.component.html',
  styleUrls: ['./map.component.css']
})
export class MapComponent implements AfterViewInit {
  private map;

  private initMap(): void {
    this.map = L.map('map', {
      center: [ 39.8282, -98.5795 ],
      zoom: 3
    });
  }

  constructor() { }

  ngAfterViewInit(): void {
    this.initMap();
  }
}

Next, open up app.component.html, and replace the generated content with the new component:

src/app/app.component.html
<app-map></app-map>

And run the application:

  1. npm start

Then, open the application in your web browser (localhost:4200):

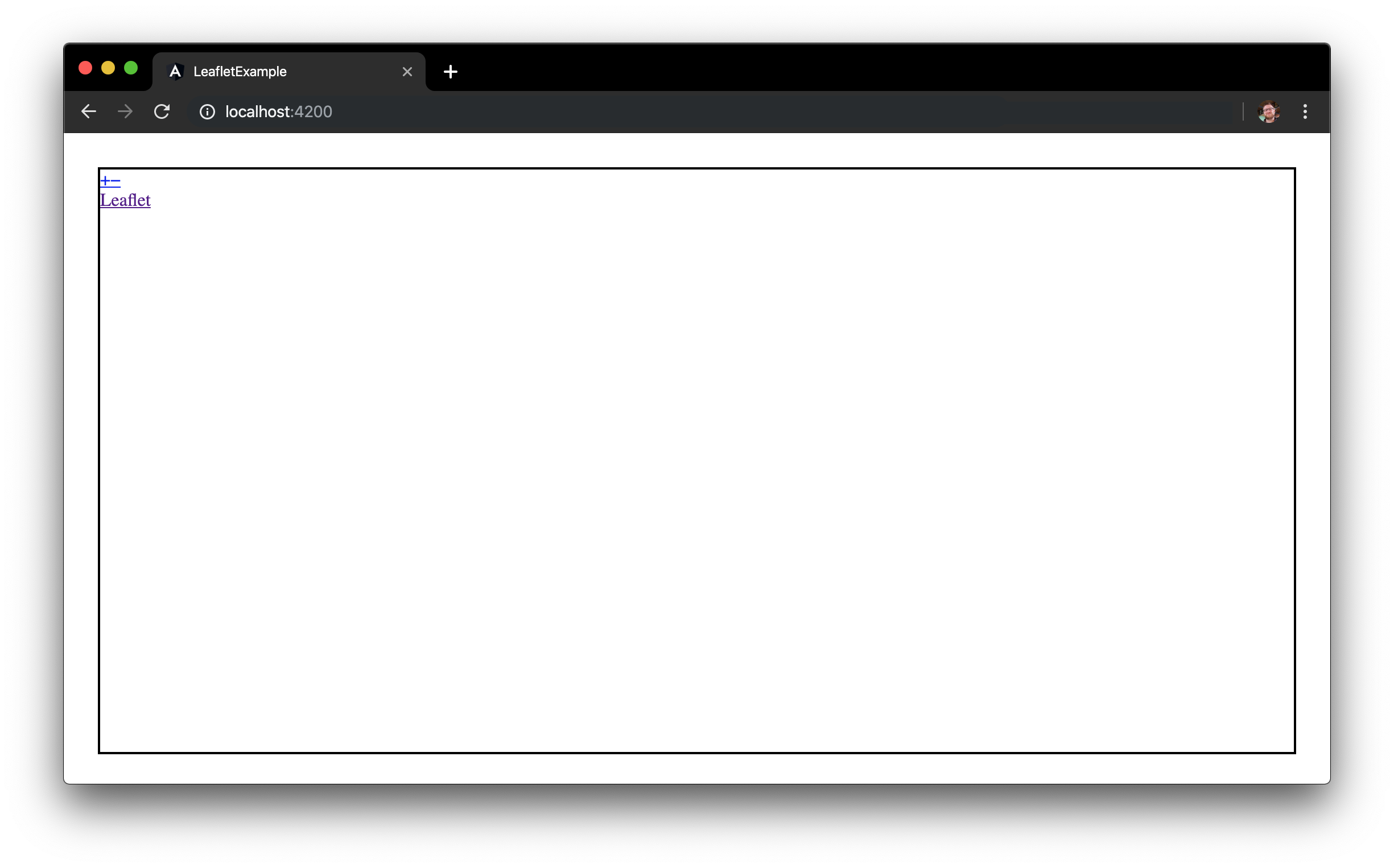

Screenshot of the current demo with a div and no map.

Your application will display an empty div and missing a map.

With Leaflet, you visualize data as Layers. The kind of data you think of when you picture a map is called “tiles”. You will need to create a new tile layer and add it to the map.

To create a new tile layer, you must first pass a tile server URL.

There are many tile server providers out there, but this tutorial will utilize the OpenStreetMap tile server.

Similar to the map object, the tiles layer also accepts customizable options.

For this tutorial, you will set the maximum and minimum zoom levels. You will also provide attribution information for the map data.

Revisit the map.component.ts file and add the tile layer to the map:

src/app/map/map.component.ts
import { Component, AfterViewInit } from '@angular/core';
import * as L from 'leaflet';

@Component({
  selector: 'app-map',
  templateUrl: './map.component.html',
  styleUrls: ['./map.component.css']
})
export class MapComponent implements AfterViewInit {
  private map;

  private initMap(): void {
    this.map = L.map('map', {
      center: [ 39.8282, -98.5795 ],
      zoom: 3
    });

    const tiles = L.tileLayer('https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
      maxZoom: 18,
      minZoom: 3,
      attribution: '&copy; <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a>'
    });

    tiles.addTo(this.map);
  }

  constructor() { }

  ngAfterViewInit(): void {
    this.initMap();
  }
}

This code will set the maximum zoom to 18, the minimum zoom to 3, and the attribution text for the tiles.

Then, open the application in your web browser (localhost:4200):

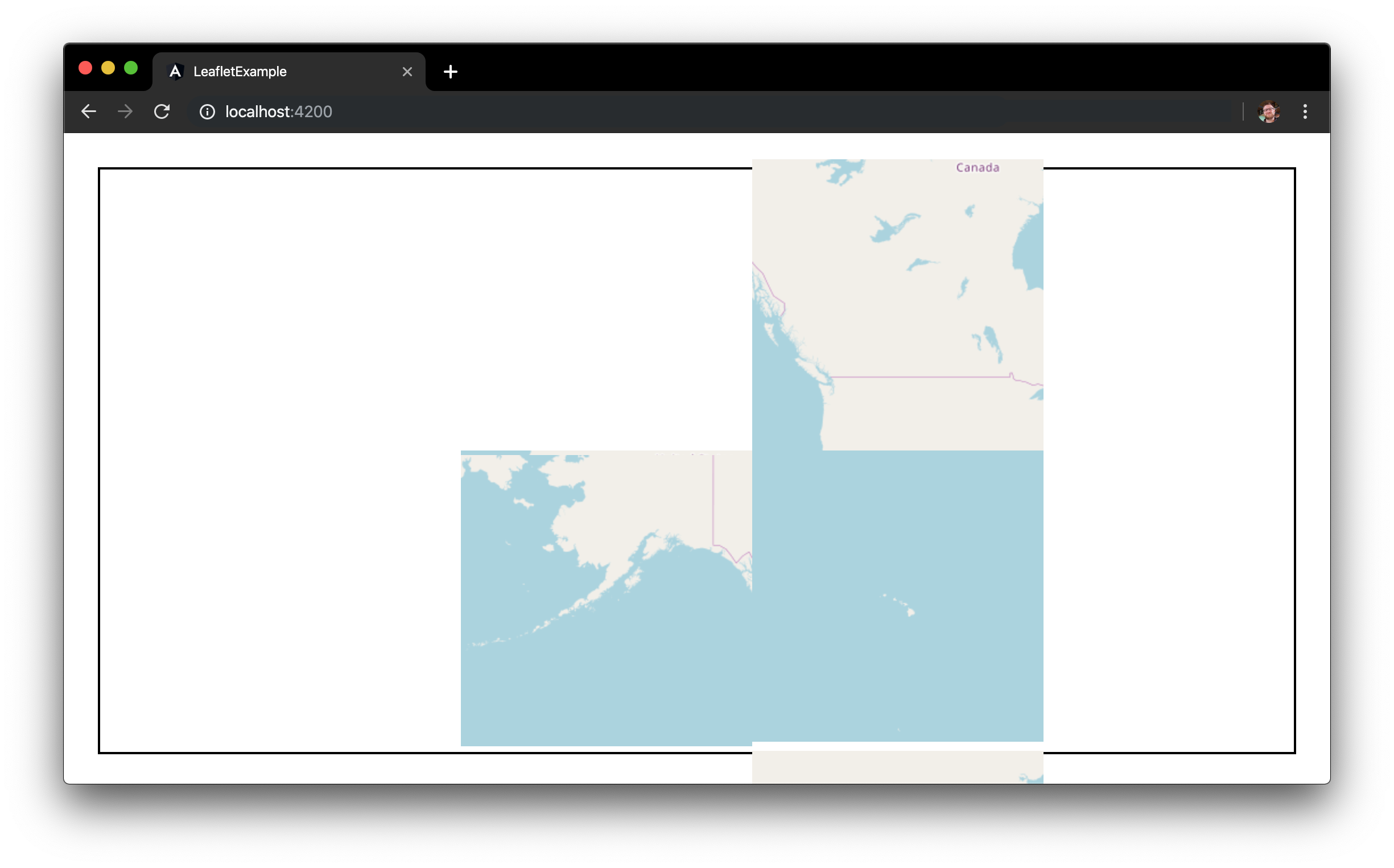

Screenshot of the current demo with map tiles placed incorrectly.

The tiles are loading, but do not appear to be placed correctly. You will need to include the Leaflet stylesheet in the build.

Open the angular.json file and add leaflet.css:

angular.json
{
  // ...
  "projects": {
    "angular-leaflet-example": {
      // ...
      "architect": {
        "build": {
          // ...
          "options": {
            // ...
            "styles": [
              "./node_modules/leaflet/dist/leaflet.css",
              "src/styles.css"
            ],
            // ..
          },
          // ...
        },
        // ...
      }
    }},
  "defaultProject": "angular-leaflet-example"
}

If you are currently running npm start you will need to stop the process and restart so it refreshes the base stylesheet.

Finally, open the application in your web browser (localhost:4200):

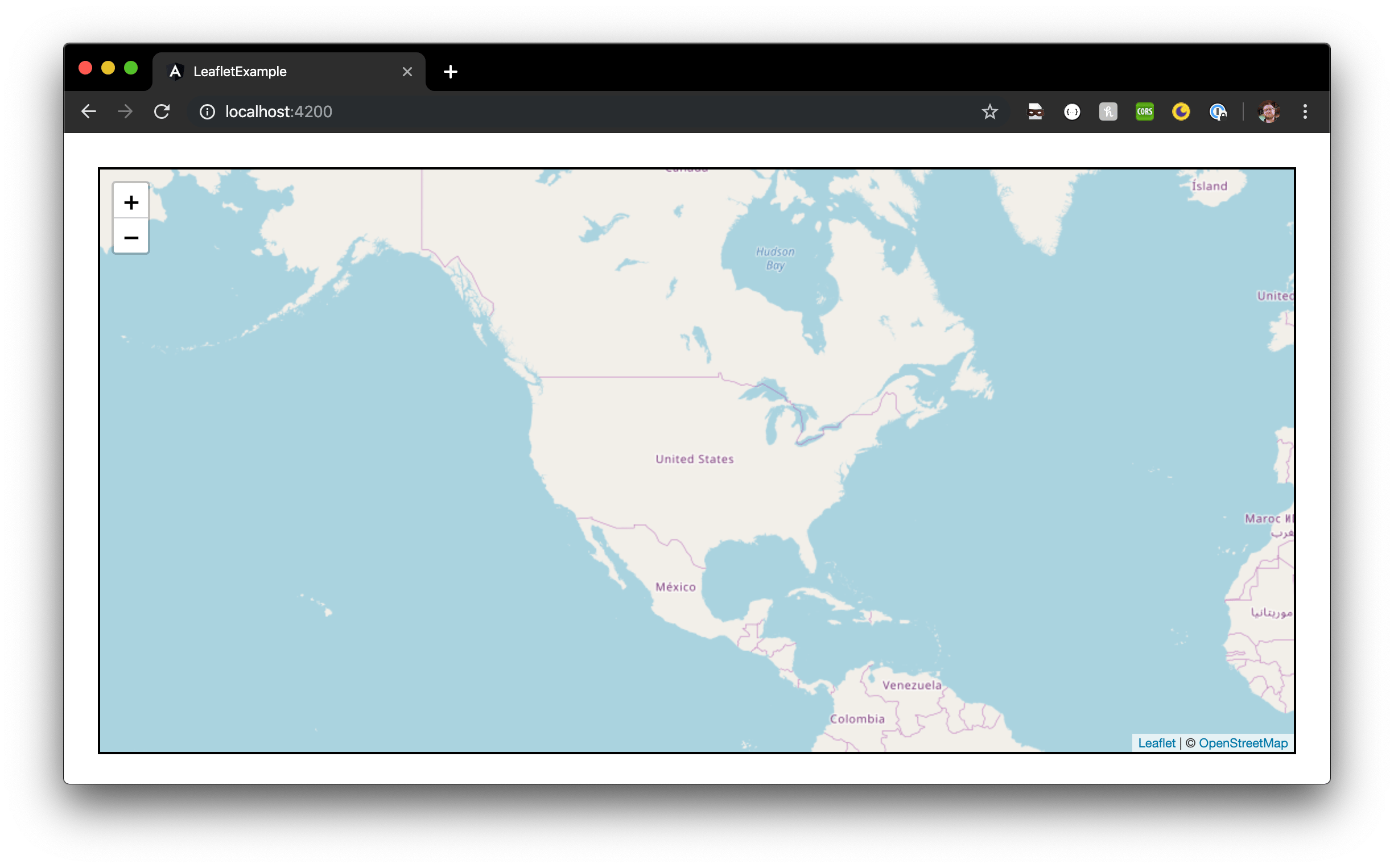

Screenshot of the completed demo with map tiles placed correctly.

You now have a map that supports zooming and dragging.

Conclusion

In this tutorial, you learned how to use Leaflet in your Angular application.

For inspiration on advanced usages of Leaflet, consider looking at the examples on the official site.

Continue to Part 2 of this series on using Angular and Leaflet.
