Shipyard is a management tool for Docker servers. Docker is a cutting-edge piece of software used for containerization. Shipyard allows you to see which containers each of your servers are running, in order to start or stop existing containers or create new ones.
Once you’ve set up Shipyard on your server you can access it using a graphic interface, a command-line interface, or an API. Shipyard lacks some of the advanced features of other Docker orchestration tools, but it’s very simple to set up, free to use, and you can manage and host it yourself.
This tutorial covers how to install Shipyard, connect it to your Docker servers, and use it to create and launch new containers. By the end, you should have Shipyard running on your server to manage your Docker hosts.
To follow this tutorial, you will need:
You can find the Docker 1.5.0 image option on the Droplet creation page, in the Applications tab under Select Image. You can also install Docker on an existing Droplet by following this tutorial.
docker.io package from the standard repository for Ubuntu 14.04 is very old (version 0.9.1). To use Shipyard, you will need to install the most recent version of Docker using one of the methods listed above.
In this step, we will install Shipyard. The commands in this tutorial will all require root privileges, so it will be easiest to simply log in to your Droplet as the root user. If you’re logged in as a non-root user, you can run
sudo su to switch to the root user.
Once you have Docker running, it is quite easy to install Shipyard because it ships as Docker images. All you need to do is pull the images from the Docker registry and run the necessary containers. First we will create a data volume container to hold Shipyard’s database data. This container won’t do anything by itself; it is a convenient label for the location of all of Shipyard’s data.
docker create --name shipyard-rethinkdb-data shipyard/rethinkdb
Now that the data volume container is created, we can launch the database server for Shipyard and link them together.
docker run -it -d --name shipyard-rethinkdb --restart=always --volumes-from shipyard-rethinkdb-data -p 127.0.0.1:49153:8080 -p 127.0.0.1:49154:28015 -p 127.0.0.1:29015:29015 shipyard/rethinkdb
This launches a container running RethinkDB, a distributed database, and makes sure it can only be accessed locally on the server itself. If you try to visit
http://your_server_ip:49153 in your browser, you shouldn’t see anything.
Now that Shipyard’s database is up, we can run Shipyard itself by launching another container and linking it to the database.
docker run -it -p 8080:8080 -d --restart=always --name shipyard --link shipyard-rethinkdb:rethinkdb shipyard/shipyard
We can now access our running Shipyard instance using port
Now that Shipyard is running, we need to access it. Shipyard can be accessed via the GUI, command-line interface (CLI), or API. We’ll start by accessing the CLI.
We can get access to the Shipyard CLI by running another container.
docker run -ti --rm shipyard/shipyard-cli
-ti flag makes sure the container is interactive, and the
--rm flag makes this a disposable container, which means it will be automatically removed once we’re done with it.
You should now see the Shipyard CLI prompt, which looks like this:
shipyard cli>. To get a list of available commands you can enter
This command prompt hasn’t been connected yet to the Shipyard instance that we set up in step 1, so let’s connect it first:
It will prompt you for a URL. Enter
http://your_server_ip:8080. Next, you’ll be prompted for a username and password. The username and password are set by default; enter
admin for the username, and
shipyard for the password. You’ll then be returned to the Shipyard prompt.
Now you’re logged in to your Shipyard instance as admin. Leaving the default password in place is a huge security risk, so let’s change it.
You’ll need to choose and confirm your new password. Make sure your new password is secure and that you’ll be able to remember it. You can now press CTRL+D to exit the Shipyard CLI.
Because the Shipyard command line has to be connected to your Shipyard instance each time, you can run the Shipyard command line on any system capable of running Docker containers and connect it to the Shipyard instance running on your server.
Next, we’ll take a look at Shipyard’s graphic interface. To access it, open
http://your_server_ip:8080 in your browser. This should show you the login screen. Use the username
admin and the new password you’ve chosen.
Once you’re logged in, Shipyard will display the Engines tab and warn you that there are no engines in your Shipyard cluster yet. An engine is a Docker host capable of running containers. Here we will add each Docker server that you want to manage with Shipyard.
The Droplet that we’ve just deployed Shipyard on is also a Docker host, so we’ll be able to manage it with Shipyard. Before we can do that; however, we’ll need to add the server to Shipyard as an engine.
By default, Docker is configured to listen on Unix socket
/var/run/docker.sock, but that socket can’t be accessed from our Shipyard instance. We’ll need to configure Docker to also listen to requests on a port. To do this, edit the Docker configuration file using your favorite text editor. (Here, we use
At the end, add this line:
DOCKER_OPTS="-H tcp://your_server_ip:4243 -H unix:///var/run/docker.sock"
This will ensure that Docker accepts connections on port
4243, but only from your server itself. Now restart Docker to load the new configuration:
service docker restart
This will also restart your Shipyard containers. Since we ran the containers with
--restart=always they should come back up automatically. You can verify this by running:
If for some reason the Shipyard containers didn’t restart, you can restart them manually by running
docker start shipyard-rethinkdb shipyard.
Now that your Docker host is properly configured, we can add it to Shipyard as an engine. Access your Shipyard GUI and go to the Engines tab. Click on the + Add button. It will look like this:
Add the following fields.
Now click the Add button at the bottom. Shipyard will now connect to your Docker host, verify the connection, and add it as an engine. Once this is done, you’ll be directed back to the Engines tab. The engine will be listed as offline at first. Wait a second or two and refresh the page, and you should now be able to see the details of your Docker host.
Now that we’ve added our Docker host to Shipyard as an engine, we can use Shipyard to start, stop and deploy containers.
Access the Shipyard GUI and take a look at the Containers tab. This lists all containers running on every Docker host you’ve added to Shipyard. If you’ve done nothing else, this tab should show at least three containers, of which two are running:
Let’s try deploying a new Wordpress blog. Using the official Docker repo images, we’ll need to deploy a MySQL and Wordpress container.

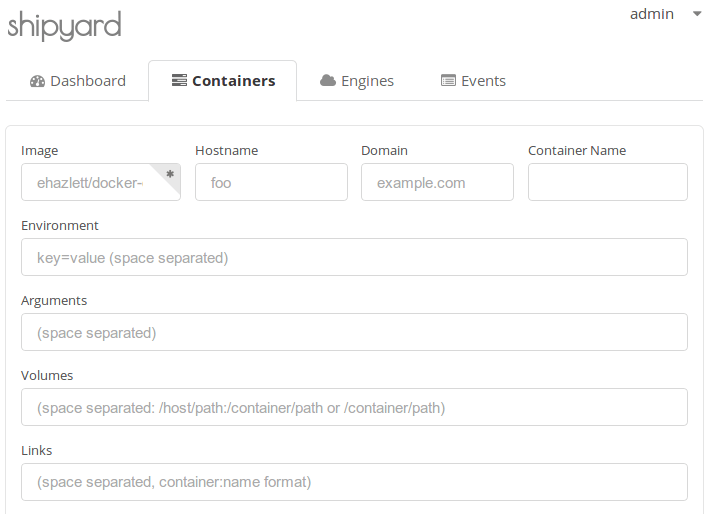

Click the + Deploy button. The next screen will allow us to configure the container to deploy. Enter the information in the fields specified below.
mariadb. (MariaDB is an open-source fork of MySQL.)
Now click on Deploy. It will take a while for the container to launch. You should be redirected back to the container list, which should now have a container named
mysql-test (or whichever name you used) in it.
You’ve just deployed your first Docker container using Shipyard!
Now we’re going to use the same process to deploy a WordPress container, linked to our MySQL container. Click the + Deploy button again and fill in the following:
There’s one more thing to do: we want to be able to reach this WordPress container’s web content from anywhere, so we have to expose its port
80. To do this, click on the plus sign next to the heading Port.
Choose TCP under Protocol, leave IP blank, enter 1234 as Port and 80 as Container Port.
Now you can click Deploy. Once again it will take a while before you’ll be redirected back to the container list. The list should now also show a container named

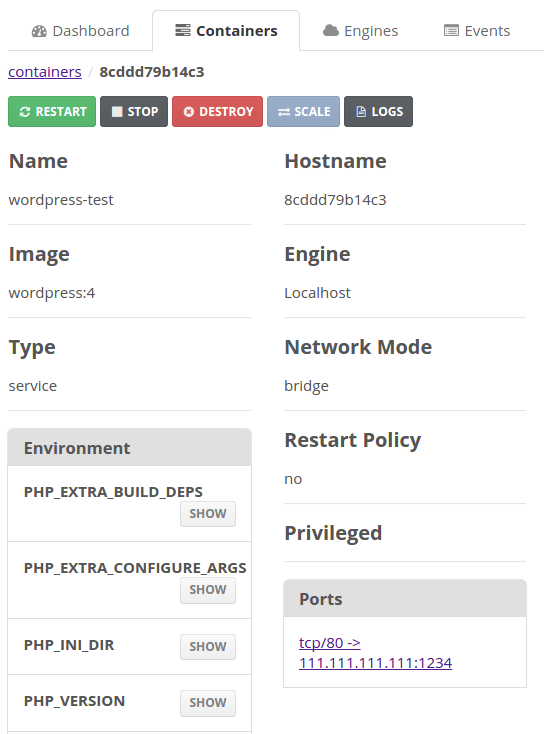

wordpress-test. Click the link next to it to see more details.
Under Ports, you’ll see that the WordPress container’s port
80 is now published to your server’s port
1234. Shipyard is helpful in directly making this listing a clickable link which you can use to go to the published address.
Click this link. This will bring you to the WordPress installation wizard. Once you fill out the fields on that page, you’ll be able to log in to your brand new WordPress blog and also see it as a website.
You’ve now succesfully used Shipyard to deploy an actual application on your Docker host!
You have Shipyard up and running on your server. You should also be able to configure additional servers with Docker and connect them to your Shipyard instance for management. You’ve also learned how to connect to your Shipyard instance using the CLI and the GUI, and learned how to deploy new containers on your Docker host using the GUI.
Now you’re free to try out any of the thousands of web applications available on the Docker Registry. For instance, you can deploy an Nginx container to host your new WordPress blog on a more readable URL as described in this tutorial.
