How To Use Logstash and Kibana To Centralize Logs On Ubuntu 14.04

Published on June 11, 2014
How To Use Logstash and Kibana To Centralize Logs On Ubuntu 14.04

Note: This tutorial is for an older version of the ELK stack, which is not compatible with the latest version. The latest version of this tutorial is available at How To Install Elasticsearch, Logstash, and Kibana (ELK Stack) on Ubuntu 14.04.

Introduction

In this tutorial, we will go over the installation of Logstash 1.4.2 and Kibana 3, and how to configure them to gather and visualize the syslogs of our systems in a centralized location. Logstash is an open source tool for collecting, parsing, and storing logs for future use. Kibana 3 is a web interface that can be used to search and view the logs that Logstash has indexed. Both of these tools are based on Elasticsearch. Elasticsearch, Logstash, and Kibana, when used together is known as an ELK stack.

Centralized logging can be very useful when attempting to identify problems with your servers or applications, as it allows you to search through all of your logs in a single place. It is also useful because it allows you to identify issues that span multiple servers by correlating their logs during a specific time frame.

It is possible to use Logstash to gather logs of all types, but we will limit the scope of this tutorial to syslog gathering.

Our Goal

The goal of the tutorial is to set up Logstash to gather syslogs of multiple servers, and set up Kibana to visualize the gathered logs.

Our Logstash / Kibana setup has four main components:

  • Logstash: The server component of Logstash that processes incoming logs
  • Elasticsearch: Stores all of the logs
  • Kibana: Web interface for searching and visualizing logs
  • Logstash Forwarder: Installed on servers that will send their logs to Logstash, Logstash Forwarder serves as a log forwarding agent that utilizes the lumberjack networking protocol to communicate with Logstash

We will install the first three components on a single server, which we will refer to as our Logstash Server. The Logstash Forwarder will be installed on all of the servers that we want to gather logs for, which we will refer to collectively as our Servers.

Prerequisites

To complete this tutorial, you will require root access to an Ubuntu 14.04 VPS. Instructions to set that up can be found here (steps 3 and 4): Initial Server Setup with Ubuntu 14.04.

The amount of CPU, RAM, and storage that your Logstash Server will require depends on the volume of logs that you intend to gather. For this tutorial, we will be using a VPS with the following specs for our Logstash Server:

  • OS: Ubuntu 14.04
  • RAM: 4GB
  • CPU: 2

In addition to your Logstash Server, you will want to have a few other servers that you will gather logs from.

Let’s get started on setting up our Logstash Server!

Install Java 7

Elasticsearch and Logstash require Java 7, so we will install that now. We will install Oracle Java 7 because that is what Elasticsearch recommends. It should, however, work fine with OpenJDK, if you decide to go that route.

Add the Oracle Java PPA to apt:

sudo add-apt-repository -y ppa:webupd8team/java

Update your apt package database:

sudo apt-get update

Install the latest stable version of Oracle Java 7 with this command (and accept the license agreement that pops up):

sudo apt-get -y install oracle-java7-installer

Now that Java 7 is installed, let’s install ElasticSearch.

Install Elasticsearch

Note: Logstash 1.4.2 recommends Elasticsearch 1.1.1.

Run the following command to import the Elasticsearch public GPG key into apt:

wget -O - http://packages.elasticsearch.org/GPG-KEY-elasticsearch | sudo apt-key add -

Create the Elasticsearch source list:

echo 'deb http://packages.elasticsearch.org/elasticsearch/1.1/debian stable main' | sudo tee /etc/apt/sources.list.d/elasticsearch.list

Update your apt package database:

sudo apt-get update

Install Elasticsearch with this command:

sudo apt-get -y install elasticsearch=1.1.1

Elasticsearch is now installed. Let’s edit the configuration:

sudo vi /etc/elasticsearch/elasticsearch.yml

Add the following line somewhere in the file, to disable dynamic scripts:

script.disable_dynamic: true

You will also want to restrict outside access to your Elasticsearch instance (port 9200), so outsiders can’t read your data or shutdown your Elasticseach cluster through the HTTP API. Find the line that specifies network.host and uncomment it so it looks like this:

network.host: localhost

Save and exit elasticsearch.yml.

Now start Elasticsearch:

sudo service elasticsearch restart

Then run the following command to start Elasticsearch on boot up:

sudo update-rc.d elasticsearch defaults 95 10

Now that Elasticsearch is up and running, let’s install Kibana.

Install Kibana

Note: Logstash 1.4.2 recommends Kibana 3.0.1

Download Kibana to your home directory with the following command:

cd ~; wget https://download.elasticsearch.org/kibana/kibana/kibana-3.0.1.tar.gz

Extract Kibana archive with tar:

tar xvf kibana-3.0.1.tar.gz

Open the Kibana configuration file for editing:

sudo vi ~/kibana-3.0.1/config.js

In the Kibana configuration file, find the line that specifies the elasticsearch, and replace the port number (9200 by default) with 80:

   elasticsearch: "http://"+window.location.hostname+":80",

This is necessary because we are planning on accessing Kibana on port 80 (i.e. http://logstash_server_public_ip/).

We will be using Nginx to serve our Kibana installation, so let’s move the files into an appropriate location. Create a directory with the following command:

sudo mkdir -p /var/www/kibana3

Now copy the Kibana files into your newly-created directory:

sudo cp -R ~/kibana-3.0.1/* /var/www/kibana3/

Before we can use the Kibana web interface, we have to install Nginx. Let’s do that now.

Install Nginx

Use apt to install Nginx:

sudo apt-get install nginx

Because of the way that Kibana interfaces the user with Elasticsearch (the user needs to be able to access Elasticsearch directly), we need to configure Nginx to proxy the port 80 requests to port 9200 (the port that Elasticsearch listens to by default). Luckily, Kibana provides a sample Nginx configuration that sets most of this up.

Download the sample Nginx configuration from Kibana’s github repository to your home directory:

cd ~; wget https://gist.githubusercontent.com/thisismitch/2205786838a6a5d61f55/raw/f91e06198a7c455925f6e3099e3ea7c186d0b263/nginx.conf

Open the sample configuration file for editing:

vi nginx.conf

Find and change the values of the server_name to your FQDN (or localhost if you aren’t using a domain name) and root to where we installed Kibana, so they look like the following entries:

  server_name FQDN;
  root /var/www/kibana3;

Save and exit. Now copy it over your Nginx default server block with the following command:

sudo cp nginx.conf /etc/nginx/sites-available/default

Now we will install apache2-utils so we can use htpasswd to generate a username and password pair:

sudo apt-get install apache2-utils

Then generate a login that will be used in Kibana to save and share dashboards (substitute your own username):

sudo htpasswd -c /etc/nginx/conf.d/kibana.myhost.org.htpasswd user

Then enter a password and verify it. The htpasswd file just created is referenced in the Nginx configuration that you recently configured.

Now restart Nginx to put our changes into effect:

sudo service nginx restart

Kibana is now accessible via your FQDN or the public IP address of your Logstash Server i.e. http://logstash_server_public_ip/. If you go there in a web browser, you should see a Kibana welcome page which will allow you to view dashboards but there will be no logs to view because Logstash has not been set up yet. Let’s do that now.

Install Logstash

The Logstash package is available from the same repository as Elasticsearch, and we already installed that public key, so let’s create the Logstash source list:

echo 'deb http://packages.elasticsearch.org/logstash/1.4/debian stable main' | sudo tee /etc/apt/sources.list.d/logstash.list

Update your apt package database:

sudo apt-get update

Install Logstash with this command:

sudo apt-get install logstash=1.4.2-1-2c0f5a1

Logstash is installed but it is not configured yet.

Generate SSL Certificates

Since we are going to use Logstash Forwarder to ship logs from our Servers to our Logstash Server, we need to create an SSL certificate and key pair. The certificate is used by the Logstash Forwarder to verify the identity of Logstash Server. Create the directories that will store the certificate and private key with the following commands:

sudo mkdir -p /etc/pki/tls/certs
sudo mkdir /etc/pki/tls/private

Now you have two options for generating your SSL certificates. If you have a DNS setup that will allow your client servers to resolve the IP address of the Logstash Server, use Option 2. Otherwise, Option 1 will allow you to use IP addresses.

Option 1: IP Address

If you don’t have a DNS setup—that would allow your servers, that you will gather logs from, to resolve the IP address of your Logstash Server—you will have to add your Logstash Server’s private IP address to the subjectAltName (SAN) field of the SSL certificate that we are about to generate. To do so, open the OpenSSL configuration file:

sudo vi /etc/ssl/openssl.cnf

Find the [ v3_ca ] section in the file, and add this line under it (substituting in the Logstash Server’s private IP address):

subjectAltName = IP: logstash_server_private_ip

Save and exit.

Now generate the SSL certificate and private key in the appropriate locations (/etc/pki/tls/), with the following commands:

cd /etc/pki/tls
sudo openssl req -config /etc/ssl/openssl.cnf -x509 -days 3650 -batch -nodes -newkey rsa:2048 -keyout private/logstash-forwarder.key -out certs/logstash-forwarder.crt

The logstash-forwarder.crt file will be copied to all of the servers that will send logs to Logstash but we will do that a little later. Let’s complete our Logstash configuration. If you went with this option, skip option 2 and move on to Configure Logstash.

Option 2: FQDN (DNS)

If you have a DNS setup with your private networking, you should create an A record that contains the Logstash Server’s private IP address—this domain name will be used in the next command, to generate the SSL certificate. Alternatively, you can use a record that points to the server’s public IP address. Just be sure that your servers (the ones that you will be gathering logs from) will be able to resolve the domain name to your Logstash Server.

Now generate the SSL certificate and private key, in the appropriate locations (/etc/pki/tls/…), with the following command (substitute in the FQDN of the Logstash Server):

cd /etc/pki/tls; sudo openssl req -subj '/CN=logstash_server_fqdn/' -x509 -days 3650 -batch -nodes -newkey rsa:2048 -keyout private/logstash-forwarder.key -out certs/logstash-forwarder.crt

The logstash-forwarder.crt file will be copied to all of the servers that will send logs to Logstash but we will do that a little later. Let’s complete our Logstash configuration.

Configure Logstash

Logstash configuration files are in the JSON-format, and reside in /etc/logstash/conf.d. The configuration consists of three sections: inputs, filters, and outputs.

Let’s create a configuration file called 01-lumberjack-input.conf and set up our “lumberjack” input (the protocol that Logstash Forwarder uses):

sudo vi /etc/logstash/conf.d/01-lumberjack-input.conf

Insert the following input configuration:

input {
  lumberjack {
    port => 5000
    type => "logs"
    ssl_certificate => "/etc/pki/tls/certs/logstash-forwarder.crt"
    ssl_key => "/etc/pki/tls/private/logstash-forwarder.key"
  }
}

Save and quit. This specifies a lumberjack input that will listen on tcp port 5000, and it will use the SSL certificate and private key that we created earlier.

Now let’s create a configuration file called 10-syslog.conf, where we will add a filter for syslog messages:

sudo vi /etc/logstash/conf.d/10-syslog.conf

Insert the following syslog filter configuration:

filter {
  if [type] == "syslog" {
    grok {
      match => { "message" => "%{SYSLOGTIMESTAMP:syslog_timestamp} %{SYSLOGHOST:syslog_hostname} %{DATA:syslog_program}(?:\[%{POSINT:syslog_pid}\])?: %{GREEDYDATA:syslog_message}" }
      add_field => [ "received_at", "%{@timestamp}" ]
      add_field => [ "received_from", "%{host}" ]
    }
    syslog_pri { }
    date {
      match => [ "syslog_timestamp", "MMM  d HH:mm:ss", "MMM dd HH:mm:ss" ]
    }
  }
}

Save and quit. This filter looks for logs that are labeled as “syslog” type (by a Logstash Forwarder), and it will try to use “grok” to parse incoming syslog logs to make it structured and query-able.

Lastly, we will create a configuration file called 30-lumberjack-output.conf:

sudo vi /etc/logstash/conf.d/30-lumberjack-output.conf

Insert the following output configuration:

output {
  elasticsearch { host => localhost }
  stdout { codec => rubydebug }
}

Save and exit. This output basically configures Logstash to store the logs in Elasticsearch.

With this configuration, Logstash will also accept logs that do not match the filter, but the data will not be structured (e.g. unfiltered Nginx or Apache logs would appear as flat messages instead of categorizing messages by HTTP response codes, source IP addresses, served files, etc.).

If you want to add filters for other applications that use the Logstash Forwarder input, be sure to name the files so they sort between the input and the output configuration (i.e. between 01 and 30).

Restart Logstash to put our configuration changes into effect:

sudo service logstash restart

Now that our Logstash Server is ready, let’s move onto setting up Logstash Forwarder.

Set Up Logstash Forwarder

Note: Do these steps for each server that you want to send logs to your Logstash Server. For instructions on installing Logstash Forwarder on Red Hat-based Linux distributions (e.g. RHEL, CentOS, etc.), refer to the Build and Package Logstash Forwarder section of the CentOS variation of this tutorial.

Copy SSL Certificate and Logstash Forwarder Package

On Logstash Server, copy the SSL certificate to Server (substitute with your own login):

scp /etc/pki/tls/certs/logstash-forwarder.crt user@server_private_IP:/tmp

Install Logstash Forwarder Package

On Server, create the Logstash Forwarder source list:

echo 'deb http://packages.elasticsearch.org/logstashforwarder/debian stable main' | sudo tee /etc/apt/sources.list.d/logstashforwarder.list

It also uses the same GPG key as Elasticsearch, which can be installed with this command:

wget -O - http://packages.elasticsearch.org/GPG-KEY-elasticsearch | sudo apt-key add -

Then install the Logstash Forwarder package:

sudo apt-get update
sudo apt-get install logstash-forwarder

Note: If you are using a 32-bit release of Ubuntu, and are getting an “Unable to locate package logstash-forwarder” error, you will need to install Logstash Forwarder manually:

wget https://assets.digitalocean.com/articles/logstash/logstash-forwarder_0.3.1_i386.deb
sudo dpkg -i logstash-forwarder_0.3.1_i386.deb

Next, you will want to install the Logstash Forwarder init script, so it starts on bootup:

cd /etc/init.d/; sudo wget https://raw.githubusercontent.com/elasticsearch/logstash-forwarder/a73e1cb7e43c6de97050912b5bb35910c0f8d0da/logstash-forwarder.init -O logstash-forwarder
sudo chmod +x logstash-forwarder
sudo update-rc.d logstash-forwarder defaults

Now copy the SSL certificate into the appropriate location (/etc/pki/tls/certs):

sudo mkdir -p /etc/pki/tls/certs
sudo cp /tmp/logstash-forwarder.crt /etc/pki/tls/certs/

Configure Logstash Forwarder

On Server, create and edit Logstash Forwarder configuration file, which is in JSON format:

sudo vi /etc/logstash-forwarder

Now add the following lines into the file, substituting in your Logstash Server’s private IP address for logstash_server_private_IP:

{
  "network": {
    "servers": [ "logstash_server_private_IP:5000" ],
    "timeout": 15,
    "ssl ca": "/etc/pki/tls/certs/logstash-forwarder.crt"
  },
  "files": [
    {
      "paths": [
        "/var/log/syslog",
        "/var/log/auth.log"
       ],
      "fields": { "type": "syslog" }
    }
   ]
}

Save and quit. This configures Logstash Forwarder to connect to your Logstash Server on port 5000 (the port that we specified an input for earlier), and uses the SSL certificate that we created earlier. The paths section specifies which log files to send (here we specify syslog and auth.log), and the type section specifies that these logs are of type "syslog* (which is the type that our filter is looking for).

Note that this is where you would add more files/types to configure Logstash Forwarder to other log files to Logstash on port 5000.

Now restart Logstash Forwarder to put our changes into place:

sudo service logstash-forwarder restart

Now Logstash Forwarder is sending syslog and auth.log to your Logstash Server! Repeat this process for all of the other servers that you wish to gather logs for.

Connect to Kibana

When you are finished setting up Logstash Forwarder on all of the servers that you want to gather logs for, let’s look at Kibana, the web interface that we installed earlier.

In a web browser, go to the FQDN or public IP address of your Logstash Server. You should see a Kibana welcome page.

Click on Logstash Dashboard to go to the premade dashboard. You should see a histogram with log events, with log messages below (if you don’t see any events or messages, one of your four Logstash components is not configured properly).

Here, you can search and browse through your logs. You can also customize your dashboard. This is a sample of what your Kibana instance might look like:

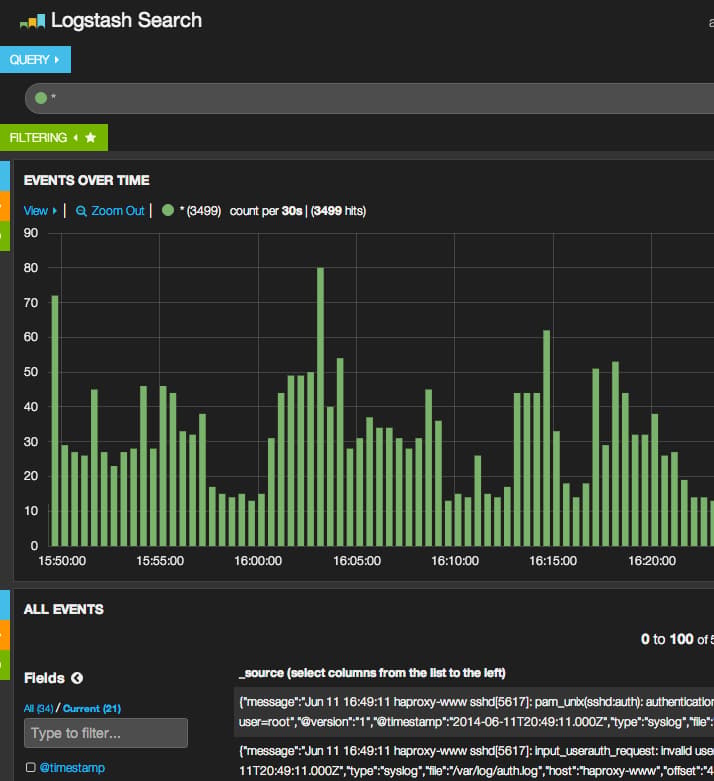

Kibana 3 Example Dashboard

Try the following things:

  • Search for “root” to see if anyone is trying to log into your servers as root
  • Search for a particular hostname
  • Change the time frame by selecting an area on the histogram or from the menu above
  • Click on messages below the histogram to see how the data is being filtered

Kibana has many other features, such as graphing and filtering, so feel free to poke around!

Conclusion

Now that your syslogs are centralized via Logstash, and you are able to visualize them with Kibana, you should be off to a good start with centralizing all of your important logs. Remember that you can send pretty much any type of log to Logstash, but the data becomes even more useful if it is parsed and structured with grok.

Note that your Kibana dashboard is accessible to anyone who can access your server, so you will want to secure it with something like htaccess.

Thanks for learning with the DigitalOcean Community. Check out our offerings for compute, storage, networking, and managed databases.

Learn more about us


About the authors

Still looking for an answer?

Ask a questionSearch for more help

Was this helpful?

10 Comments


This textbox defaults to using Markdown to format your answer.

You can type !ref in this text area to quickly search our full set of tutorials, documentation & marketplace offerings and insert the link!

Hi Mitchell,

When installing the Logstash Forwarder in the remote Server you are assuming that the Elasticsearch public key is already installed, however that´s not correct.

So, as you already stated it, we should execute a:

wget -O - http://packages.elasticsearch.org/GPG-KEY-elasticsearch | sudo apt-key add -

Before executing “apt-get update”, in order to avoid this ugly message:

W: GPG error: http://packages.elasticsearch.org stable Release: The following signatures couldn’t be verified because the public key is not available: NO_PUBKEY D27D666 CD88E42B4

Thank you very much for your fantastic guidance! Your tutorials are crystal-clear!!

Great Tutorial but wanted configuration for apache2 ssl_access logs and also error logs as well as auth log and mysql slow query and generel logs can you please add that also

Hi, Thanks for this great tutorial. But I have an issue with this. I was unable to install logstash-forwarder. It shows that the package architecture did not match.

Detailed Error:

dpkg: error processing archive logstash-forwarder_0.3.1_i386.deb (--install):
 package architecture (i386) does not match system (amd64)
Errors were encountered while processing:
 logstash-forwarder_0.3.1_i386.deb

Please post an updated deb file, or else is there any other way to install the package?

Hi Mitch, good instruction on how to install ELK on a single box using the out of the box config. im trying a used case where i need to send syslog from network devices directly to ELK without any agent/forwarder. My question is without agent install and without copying the cert can we forward the logs?? please clarify

i just noticed that logstash forwarder in newer versions use: /etc/logstash-forwarder.conf

I’m getting the below error on my logstash-forwarder file and its not forwarding the logs.

2015/06/20 19:49:40.000790 Read error looking for ack: read tcp 172.20.3.10:1640: i/o timeout 2015/06/20 19:49:40.000934 Setting trusted CA from file: /etc/pki/tls/certs/bundle.crt 2015/06/20 19:49:40.001497 Connecting to [172.20.3.10]:1640 (logstash.example.com) 2015/06/20 19:49:40.063573 Connected to 172.20.3.10

Please share your suggestion. Fyi, I’m running both forwarder and logstash server on same machine for my testing.

Server Config : input { lumberjack { port => 1640 type => “logs” ssl_certificate => “/etc/pki/tls/certs/example.com.crt” ssl_key => “/etc/pki/tls/private/example.com.key” } } filter { if [type] == “nginx” { grok { match => { “message” => “%{NGINXACCESS}” } } } } output { elasticsearch { host => localhost } stdout { codec => rubydebug } }

Forwarder Config :

{ “network”: { “servers”: [ “logstash.example.com:1640” ], “timeout”: 15, “ssl ca”: “/etc/pki/tls/certs/bundle.crt”, “ssl certificate”: “/etc/pki/tls/certs/example.com.crt” }, “files”: [ { “paths”: [ “/var/log/nginx/test.example.com/ssl-access.log” ], “fields”: { “type”: “nginx” } } ] }

Hi ,

I follow the guide exactly but the the site doesn’t show any data.

Hi

thanks for great guide, I use it on ubuntu and everything work well I tried to install logstash-forwarder on RED-HAT but it doesn’t work

Is there a chance you can publish short article how to install it on RED-HAT? I guess there are several issues that should be done in different way

Regards Tomer

is it possible for you make a guide on how to use shield for elasticsearch?

Try DigitalOcean for free

Click below to sign up and get $200 of credit to try our products over 60 days!

Sign up

Join the Tech Talk
Success! Thank you! Please check your email for further details.

Please complete your information!

Get our biweekly newsletter

Sign up for Infrastructure as a Newsletter.

Hollie's Hub for Good

Working on improving health and education, reducing inequality, and spurring economic growth? We'd like to help.

Become a contributor

Get paid to write technical tutorials and select a tech-focused charity to receive a matching donation.

Welcome to the developer cloud

DigitalOcean makes it simple to launch in the cloud and scale up as you grow — whether you're running one virtual machine or ten thousand.

Learn more
DigitalOcean Cloud Control Panel
