Introduction

In this part of the tutorial, we will deploy our example PHP application, WordPress, and a private DNS:

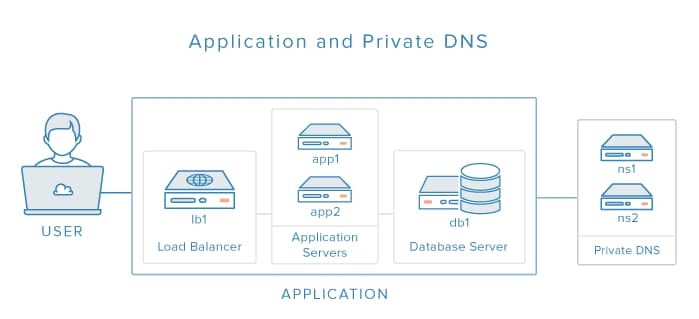

DNS + Application Diagram

Your users will access your application over HTTPS via a domain name, e.g. “https://www.example.com”, that points to the load balancer. The load balancer will act as a reverse proxy to the application servers, which will connect to the database server. The private DNS will enable us to use names to refer to the private network addresses of our servers which ease the process of configuration of our servers.

We will set up the components that we just discussed on six servers, in this order:

  • Private DNS (ns1 and ns2)
  • Database Server (db1)
  • Application Servers (app1 and app2)
  • Load Balancer (lb1)

Let’s get started with the DNS setup.

Private DNS Servers

Using names for addresses helps with identifying the servers you are working with and becomes essential for the maintenance of a larger server setup, as you can replace a server by simply updating your DNS records (in a single place) instead of updating countless configuration files with IP addresses. In our setup, we will set up our DNS so we can reference the private network addresses of our servers by name instead of IP address.

We will refer to the private network address of each server by a hostname under the “nyc3.example.com” subdomain. For example, the database server’s private network address would be “db1.nyc3.example.com”, which resolves to it’s private IP address. Note that the example subdomain is almost completely arbitrary, and is usually chosen based on logical organization purposes; in our case, we “nyc3” indicates that the servers are in the NYC3 datacenter, and “example.com” is our application’s domain name.

Set this up by following this tutorial, and adding DNS records for each server in your setup:

After completing the DNS tutorial, you should have two BIND servers: ns1 and ns2. If you already know the private IP addresses of all of the servers in your setup, add them to your DNS now; otherwise, add the appropriate DNS records as you create your servers.

Now we’re ready to set up our database server.

Set Up Database Server

Because we want to load balance the our application servers, i.e. the ones running Apache and PHP, we need to decouple the database from the application servers by setting it up on a separate server. Decoupling the database from the application is an essential step before horizontally scaling many types of applications, as explained in this blog post: Horizontally Scaling PHP Applications: A Practical Overview.

This section covers all of the necessary steps to set up our database server, but you can learn more about setting up a remote, decoupled MySQL database server for a PHP application in this tutorial: How To Set up a Remote MySQL Database.

Install MySQL

On the database server, db1, install MySQL Server:

  1. sudo apt-get update
  2. sudo apt-get -y install mysql-server

Enter your desired MySQL root password at the prompt.

Now run:

  1. sudo mysql_install_db
  2. sudo mysql_secure_installation

You will have to enter the MySQL administrator’s password that you set in the steps above. Afterwards, it will ask if you want to change that password. Type “N” for no if you’re happy with your current password. Answer the rest of the questions with the defaults.

Configure MySQL to Listen on Private Network Interface

Open the MySQL configuration file:

  1. sudo vi /etc/mysql/my.cnf

Find the bind-address setting, and change it to the address of the private network address of your database server:

/etc/mysql/my.cnf
bind-address            = db1.nyc3.example.com

Save and exit.

Restart MySQL:

  1. sudo service mysql restart

Set Up Database and Database Users

Now we need to create the database and database users that the application servers will use to connect.

Enter the MySQL console:

  1. mysql -u root -p

Enter the MySQL root password at the prompt.

At the MySQL prompt, create the database for your application:

  1. CREATE DATABASE app;

MySQL associates its users to the servers that they should be connecting from. In our case, we have two application servers that will be connecting, so we should make a user for each of them. Create a database user, “appuser” in our example, that can be connected to from private network address of each of your application servers (app1 and app2). You should use the same password for each user:

  1. CREATE USER 'appuser'@'app1.nyc3.example.com' IDENTIFIED BY 'password';
  2. CREATE USER 'appuser'@'app2.nyc3.example.com' IDENTIFIED BY 'password';

We will configure the final database user privileges later, but let’s give appuser full control over the app database:

  1. GRANT ALL PRIVILEGES ON app.* TO 'appuser'@'app1.nyc3.example.com';
  2. GRANT ALL PRIVILEGES ON app.* TO 'appuser'@'app2.nyc3.example.com';
  3. FLUSH PRIVILEGES;

These relaxed privileges ensure that the application’s installer will be able to install the application in the database. If you have more than two application servers, you should create all the necessary database users now.

Exit the MySQL prompt now:

  1. exit

The database server setup is complete. Let’s set up the application servers.

Set Up Application Servers

The application servers will run the code of our application, which will connect to the database server. Our example application is WordPress, which is a PHP application that is served through a web server such as Apache or Nginx. Because we want to load balance the application servers, we will set up two identical ones.

This section covers all of the necessary steps to set up our application servers, but the topic is covered in detail in the following tutorial, starting from the Set Up the Web Server section: How To Set Up a Remote Database.

Install Apache and PHP

On both application servers, app1 and app2, install Apache and PHP:

  1. sudo apt-get update
  2. sudo apt-get -y install apache2 php5-mysql php5 libapache2-mod-php5 php5-mcrypt

Configure Apache

We will be using HAProxy, on the load balancer server, to handle SSL termination, so we don’t want our users accessing the application servers directly. As such, we will bind Apache to each server’s private network address.

On each application server, app1 and app2, open your Apache ports configuration file. By default, this is the ports.conf file:

  1. sudo vi /etc/apache2/ports.conf

Find the line that says Listen 80, and add your private IP address to it, like so (substitute in the actual IP address of your server):

Apache ports.conf — Listen on private interface
Listen private_IP:80

Save and exit. This configures Apache to listen only on the private network interface, which means it cannot be accessed by the public IP address or hostname.

Restart Apache to put the changes into effect:

  1. sudo service apache2 restart

Apache is now accessible via only the private network address of your application servers. We will configure the load balancer to send user requests here, in a moment.

Download and Configure Application

In our example, we are using WordPress as our application. If you are using a different PHP application, download it and perform any relevant configuration (e.g. database connection information), then skip to the next section.

On the first application server, app1, download the WordPress archive:

  1. cd ~
  2. wget http://wordpress.org/latest.tar.gz

Extract the WordPress archive:

  1. tar xvf latest.tar.gz

Change to the extracted directory:

  1. cd wordpress

WordPress needs a directory to be created for its uploads, wp-content/uploads. Let’s do that now:

  1. mkdir wp-content/uploads

We will use the sample WordPress configuration file as a template. Copy it to the proper location:

  1. cp wp-config-sample.php wp-config.php

Now open the configuration file for editing:

  1. vi wp-config.php

Configure the WordPress database connection by changing the highlighted information in the following lines:

wp-config.php
/** The name of the database for WordPress */
define('DB_NAME', 'app');

/** MySQL database username */
define('DB_USER', 'appuser');

/** MySQL database password */
define('DB_PASSWORD', 'password');

/** MySQL hostname */
define('DB_HOST', 'db1.nyc3.example..com');

Because we are going to use TLS/SSL encryption on the load balancer server, we must add the following lines so WordPress will be aware that it is behind a reverse proxy that is using SSL:

define('FORCE_SSL_ADMIN', true);
if ($_SERVER['HTTP_X_FORWARDED_PROTO'] == 'https')
       $_SERVER['HTTPS']='on';

You will also want to update the keys and salts, so you can invalidate cookies when you want. We won’t cover this here but make sure that they are identical on all of your application servers.

Save and exit.

WordPress is now configured, but its files must be copied to the proper location to be served by our web server software.

Copy Application Files to Document Root

Now that we have our application configured, we need to copy it into Apache’s document root, where it can be served to visitors of our website.

The default location of Apache’s DocumentRoot is /var/www/html, so we will use that in our example.

First, delete the default index.html file:

  1. sudo rm /var/www/html/index.html

Then use rsync to copy the WordPress files to /var/www/html, and make www-data (the user that Apache runs as) the owner:

  1. sudo rsync -avP ~/wordpress/ /var/www/html
  2. sudo chgrp -R www-data /var/www/html/*

Our first application server, app1, is ready. We will set up the other application server.

Replicate Application Files to Other Servers

In order to keep your application’s files consistent across your various application servers, you should set up file replication of your web server’s document root. In the case of WordPress, using the web interface to upload files and install plugins will store the files on the particular server that processes the request. If these files are not replicated to all of your application servers, some of your users will be served pages with missing images and broken plugins. If your PHP application is not WordPress and does not store any of its data (e.g. uploaded files or downloaded plugins) on the application server, you can just copy the application files manually, once. If this is the case, use rsync to copy your application files from app1 to app2.

GlusterFS can be used to create a replicated volume of the necessary files, and it is demonstrated in the Synchronize Web Application Files section of this tutorial: How To Use HAProxy as a Load Balancer for WordPress Application Servers. Follow the instructions (skip the Edit Hosts File section, as our DNS takes care of that) and set up replication between app1 and app2.

Once your replication is set up properly, both of your application servers should be configured properly. Let’s set up our load balancer now.

Set Up Load Balancer Server

Our load balancer server will run HAProxy, which will serve as a reverse proxy load balancer for our application servers. Your users will access your application through the the load balancer server via a URL such as https://www.example.com.

This section covers all of the necessary steps to set up our load balancer server, but the subject is covered in detail in the following tutorials:

Copy SSL Certificate

Perform these steps on the load balancer server, lb1.

In the directory that contains your SSL certificate (one of the prerequisites from the part 1), combine your certificate, any intermediate CA certificate, and your certificate’s key into a single .pem file. For example (our certs are in /root/certs:

  1. cd /root/certs
  2. cat www.example.com.crt CAintermediate.ca-bundle www.example.com.key > www.example.com.pem

Then copy the pem file to /etc/ssl/private:

  1. sudo cp www.example.com.pem /etc/ssl/private/
  2. ```
  3. This file will be used by HAProxy for SSL termination.
  4. ### Install HAProxy
  5. On the load balancer server, **lb1**, install HAProxy:
  6. ```command
  7. sudo add-apt-repository ppa:vbernat/haproxy-1.5
  8. sudo apt-get update
  9. sudo apt-get -y install haproxy
  10. ```
  11. Now let's configure HAProxy.
  12. ### HAProxy Configuration
  13. We need to configure HAProxy with some reasonable settings, SSL termination, and the appropriate frontends and backends to make it work with our application servers.
  14. Open the HAProxy configuration file for editing:
  15. ```command
  16. sudo vi /etc/haproxy/haproxy.cfg
  17. ```
  18. #### HAProxy Configuration: General Settings
  19. The first thing you will want to do is set maxconn to a reasonable number. This setting affects how many concurrent connections HAProxy will allow, which can affect QoS and prevent your web servers from crashing from trying to serve too many requests. You will need to play around with it to find what works for your environment. Add the following line (with a value you think is reasonable) to the global section of the configuration:
  20. ```
  21. [label haproxy.cfg — maxconn]
  22. maxconn 2048
  23. ```
  24. Add this line, to configure the maximum size of temporary DHE keys that are generated:
  25. ```
  26. [label haproxy.cfg — tune.ssl.default-dh-param]
  27. tune.ssl.default-dh-param 2048
  28. ```
  29. Next, in the defaults section, add the following lines under the line that says mode http:
  30. ```
  31. [label haproxy.cfg ]
  32. option forwardfor
  33. option http-server-close
  34. ```
  35. If you would like to enable the HAProxy stats page, add the following lines in the defaults section (substitute user and password with secure values):
  36. ```
  37. [label haproxy.cfg ]
  38. stats enable
  39. stats uri /stats
  40. stats realm Haproxy\ Statistics
  41. stats auth user:password
  42. ```
  43. This will allow you to look at the HAProxy stats page by going to your domain on /stats (e.g. "https://www.example.com/stats").
  44. Do not close the config file yet! We will add the proxy configuration next.
  45. #### HAProxy Configuration: Proxies
  46. The first thing we want to add is a frontend to handle incoming HTTP connections. At the end of the file, let's add a frontend called www-http:
  47. ```
  48. frontend www-http
  49. bind www.example.com:80
  50. reqadd X-Forwarded-Proto:\ http
  51. default_backend app-backend
  52. ```
  53. The purpose of this frontend is to accept HTTP connections so they can be redirected to HTTPS.
  54. Now add a frontend to handle the incoming HTTPS connections. Make sure to specify the appropriate `pem` certificate:
  55. ```
  56. frontend www-https
  57. bind www.example.com:443 ssl crt /etc/ssl/private/www.example.com.pem
  58. reqadd X-Forwarded-Proto:\ https
  59. default_backend app-backend
  60. ```
  61. After you are finished configuring the frontends, continue adding your backend by adding the following lines:
  62. ```
  63. backend app-backend
  64. redirect scheme https if !{ ssl_fc }
  65. server app1 app1.nyc3.example.com:80 check
  66. server app2 app2.nyc3.example.com:80 check
  67. ```
  68. This backend specifies which application servers to send the load balanced traffic to. Also, the `redirect scheme https` line tells it to redirect HTTP connections to HTTPS.
  69. Now save and exit haproxy.cfg. HAProxy is now ready to be started, but let's enable logging first.
  70. ### Enable HAProxy Logging
  71. Open the rsyslog configuration file:
  72. ```command
  73. sudo vi /etc/rsyslog.conf
  74. ```
  75. Then find the following lines and uncomment them to enable UDP syslog reception. It should look like the following when you're done:
  76. ```
  77. [label /etc/rsyslog.conf]
  78. $ModLoad imudp
  79. $UDPServerRun 514
  80. $UDPServerAddress 127.0.0.1
  81. ```
  82. Now restart rsyslog to enable the new configuration:
  83. ```
  84. sudo service rsyslog restart
  85. ```
  86. HAProxy logging is is now enabled! The log file will be created at `/var/log/haproxy.log` once HAProxy is started.
  87. ### Restart HAProxy
  88. Restart HAProxy to put the changes into effect:
  89. ```command
  90. sudo service haproxy restart
  91. ```
  92. Our load balancer is now set up.
  93. Now we need to run the application's install script.
  94. ## Install WordPress
  95. We must run the WordPress installation script, which prepares the database for its use, before we can use it.
  96. Open your site in a web browser:
  97. ```
  98. [secondary_label Open in a Web Browser]
  99. https://www.example.com/wp-admin/install.php
  100. ```
  101. This will display the WordPress installation screen. Fill out the forms and click the **Install WordPress** button.
  102. After WordPress installs, the application is ready to be used.
  103. ## Conclusion
  104. The servers that comprise your application are now set up, and your application is ready to be used. You may log in as the admin user, and your users may access the site over HTTPS via the proper domain name.
  105. Be sure to test out your application and make sure that it works as expected before moving on.
  106. Continue to the next tutorial to start working on the recovery plan for your production application setup: [Building for Production: Web Applications — Recovery Planning](https://www.digitalocean.com/community/tutorials/building-for-production-web-applications-recovery-planning).

Want to learn more? Join the DigitalOcean Community!

Join our DigitalOcean community of over a million developers for free! Get help and share knowledge in our Questions & Answers section, find tutorials and tools that will help you grow as a developer and scale your project or business, and subscribe to topics of interest.

Sign up

Tutorial Series: Building for Production: Web Applications

This 6-part tutorial will show you how to build out a multi-server production application setup from scratch. The final setup will be supported by backups, monitoring, and centralized logging systems, which will help you ensure that you will be able to detect problems and recover from them. The ultimate goal of this series is to build on standalone system administration concepts, and introduce you to some of the practical considerations of creating a production server setup.

About the authors
Default avatar
Developer and author at DigitalOcean.

Still looking for an answer?

Was this helpful?
10 Comments

This textbox defaults to using Markdown to format your answer.

You can type !ref in this text area to quickly search our full set of tutorials, documentation & marketplace offerings and insert the link!

Wow, this is such an amazing guide! You could charge for this easily. Thanks for the freebies :D

What a great tutorial series. It’s such a relief to go through all these steps without hitting a brick wall where you end up spending hours looking for a solution.

Nice work!

I’m loving this high quality tutorial series, thanks for sharing it!

I think there is a typo in the “Restart HAProxy” section, the command proposed restarts rsyslog instead of HAProxy.

Good stuff. Thank you, sir.

Great tutorial series! Thanks for all the information. Quick question, so you’re spinning up 6 total droplets for each server correct?

Hi,

I have query regarding domain that we are using to access our web application in this tutorial.

Let’s say I have purchased domain xyz.do. I have pointed that domain to DO nameservers ( By navigating to Networking ->Domain Tab in DO control panel). Also added the IP of Load balancer droplet in A record.

Now By following this tutorial I have created 2 droplets for nameserver(ns1,ns2) for zone “xyz.do”. In ns1 droplet, I am creating zone file for “xyz.do”, where I will be giving private IP address of all the other servers(lb1,db1,app1,app2).

This creates confusion for me. DO nameservers (i.e. ns1.digitalocean.com) are managing “xyz.do” domain and same domain is also managed by ns1 droplet(created for this tutorial). In final, I will access my application through “xyz.do” which is pointed to public ip of Load balancer droplet.

  1. How is it possible that 2 nameserver will manage the same domain ?
  2. I have to use same domain in both the places i) Networking in DO control panel ii)Inside ns1 droplet

Please correct me.

Does an application have to have these many servers when it starts out? I currently use one droplet for the entire application I’m developing.

Well the problem was way stranger… I used the most recent Ubuntu version 15.x. totally not working. With the LTS 14.x everything is fine!!

This comment has been deleted

Hi, running the mysql-server installation returns an error: FATAL ERROR: Neither host ‘MFD-FRA-DB1’ nor ‘localhost’ could be looked up with /usr/bin/resolveip
